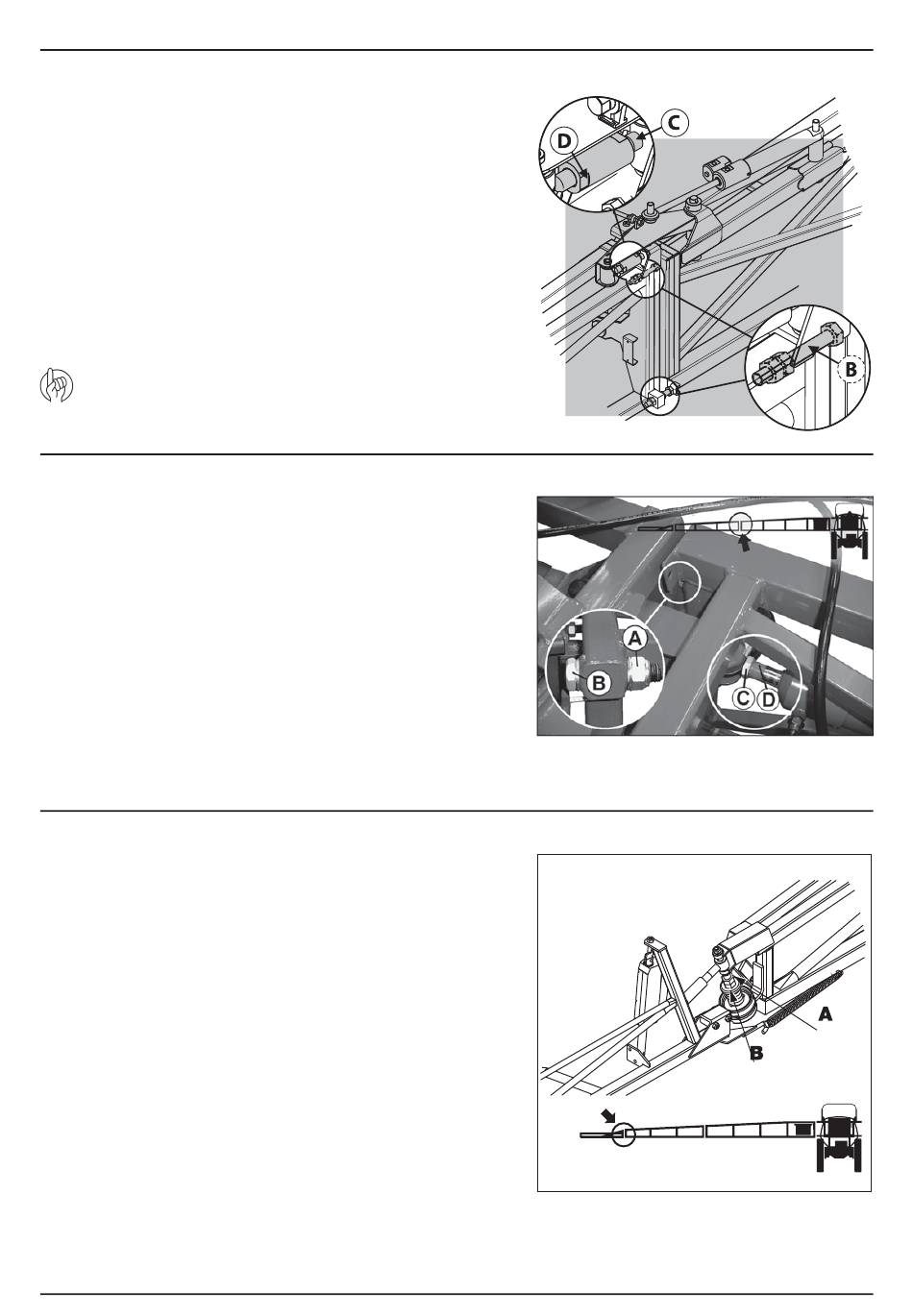

Alignment of inner and 1st outer wing sections

The outer sections must be aligned with the inner wing sections. If
necessary adjust the outer wing sections as follows:
1. Depressurize the folding cylinders.
2. Loosen counter nuts (A) and (C).
3. Loosen the screws (B).
4. Adjust the rigging screw (D) until the correct setting is reached.
Adjust the stop screws (B) up against the inner section.
5. Tighten counter nuts again.
6. Check the alignment. If needed, redo the adjustment described
above.
ATTENTION! The rigging screw (D) must be slightly 'over'
tightened/adjusted to insure a firm and fixed outer section.

Alignment of inner and 1st outer wing sections (32-36 m)

The outer sections must be aligned with the inner wing sections. If
necessary adjust the outer wing sections as follows when unfolded:
1. Depressurize the folding cylinders.
2. Loosen counter nut (A).
3. Loosen the screws (B).
4. Adjust the rigging screw (D) until the correct setting is reached.
Some 10 mm blank on the cylinder should be visible.
5. Adjust the stop screws (B) up against the inner section.
6. Tighten counter nuts again.
7. Check the alignment. If needed, redo the adjustment described
above.

Breakaway section adjustment

The breakaway section must release when a force of approximately 150
N is applied to the extremity of the breakaway section. If necessary, the
release force is adjusted as follows:
1. Make sure that claw coupling is correctly lubricated.
2. Loosen the counter nut (A).
3. Adjust the nut (B) until the breakaway will release at a force of 150
N applied at the extremity of the section.
4. Tighten the counter nut again.
€
DANGER! Never place fingers into open breakaway clutch! You
may be injured if clutch snap closed accidentally!
±
WARNING! Do not tighten the breakaway clutch more than what
is necessary. Over tightening can cause damage to the boom.
