Getting started with the evaluation kit for automotive rear lights with pattern animations based on aled1262zt and stm8af6266

Table of Contents

UM2381

Thermal behavior

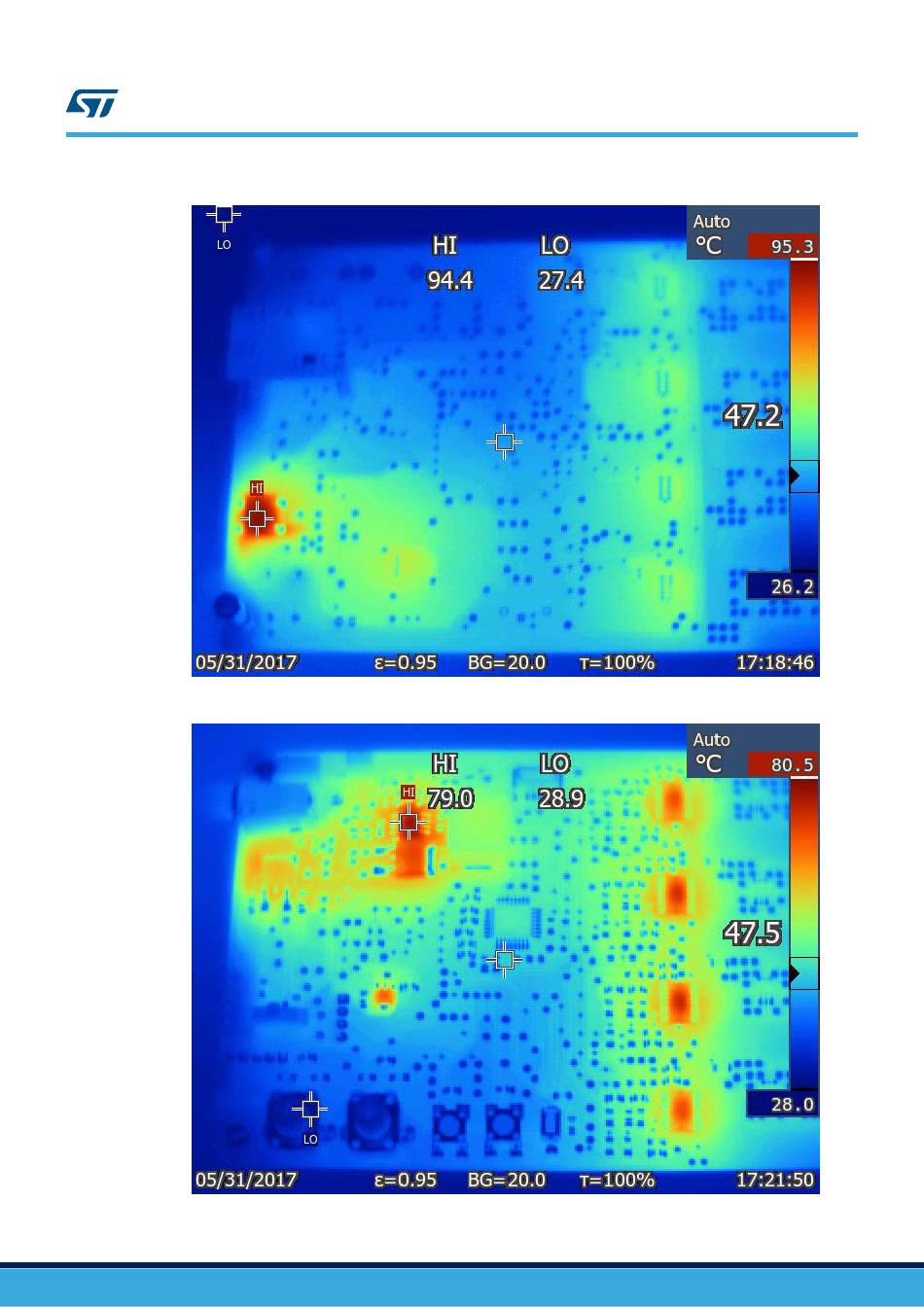

Figure 24.

STEVAL-LLL002V1 thermal layout at 12 V DC input (bottom side)

Figure 25.

STEVAL-LLL002V1 thermal layout at 20 V DC input (top side)

UM2381 - Rev 1

page 23/29
