Thermal behavior

The

ALED1262ZT

thermal resistance.

The average forward voltage drop of red channels is 2 V and the maximum channel current is configured for 42.5

mA.

The

STEVAL-LLL002V1

UM2381 - Rev 1

is available in a TSSOP24-EP package (mounted on the evaluation board) with 37.5 °C/W

evaluation kit thermal image at the ≅45 mA current in all the channels are shown below.

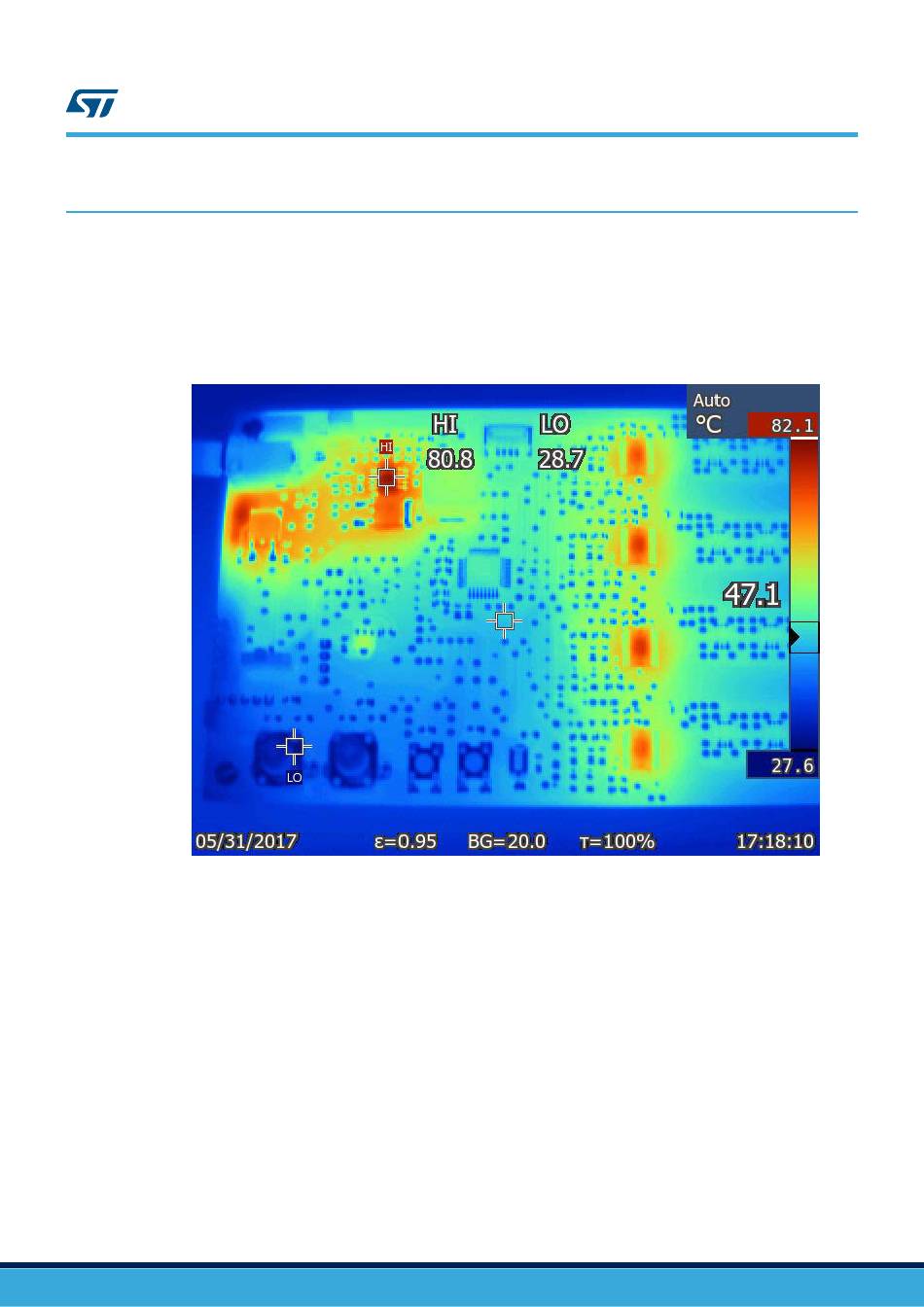

Figure 23.

STEVAL-LLL002V1 thermal layout at 12 V DC input (top side)

UM2381

Thermal behavior

page 22/29
