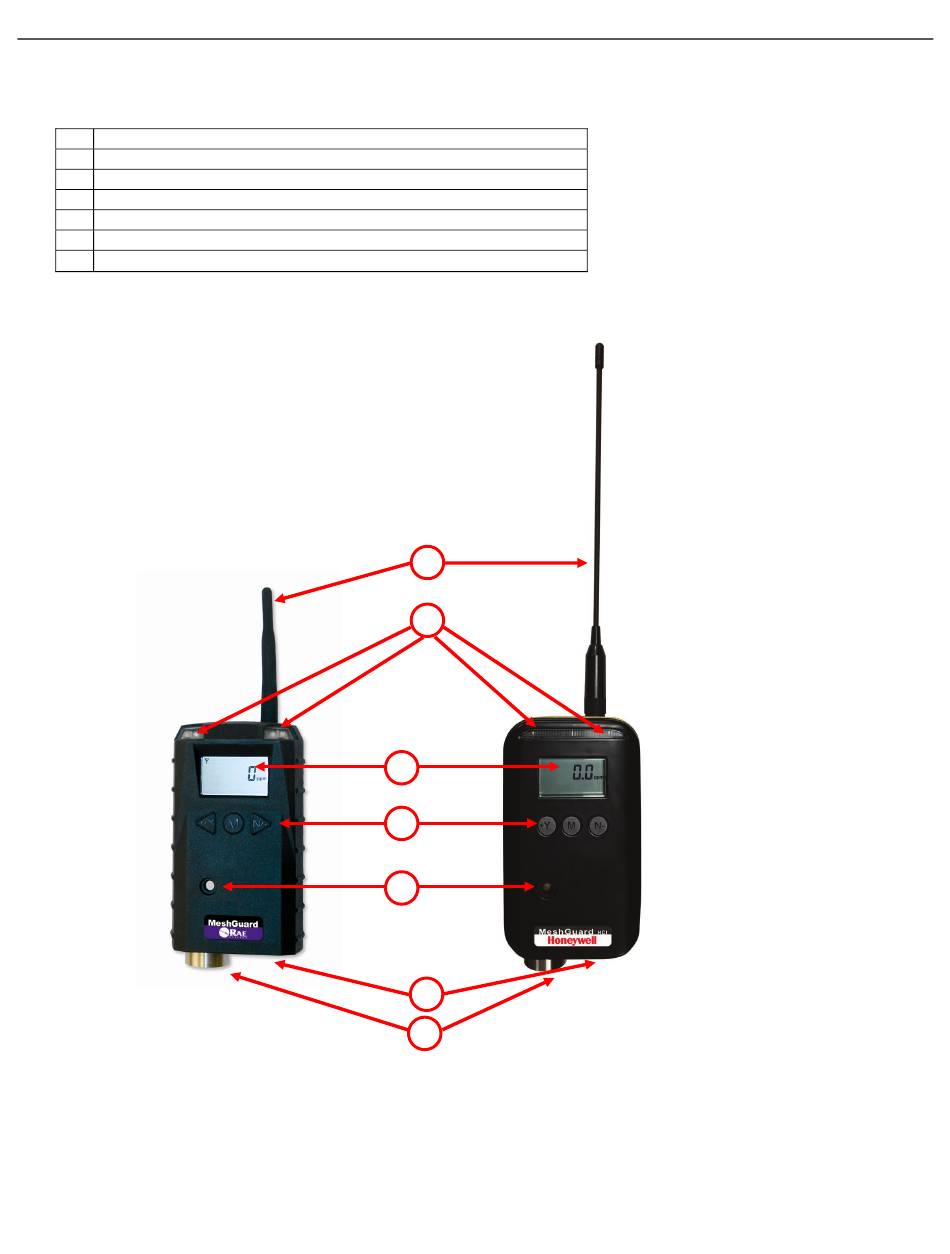

Physical Description

Note: The physical appearance of the MeshGuard is virtually identical, whether in a metal enclosure or a plastic
enclosure. Functionality is identical, regardless of the enclosure.
1
LED alarm
2
LCD (with backlighting)
3
Buzzer alarm
4
Sensor gas inlet
5
Battery cover (on bottom)
6
Y/+, MODE, and N/- keys
7
Antenna
Plastic Housing
MeshGuard User's Guide
7
1
2
6
3
5
4
Metal Housing
