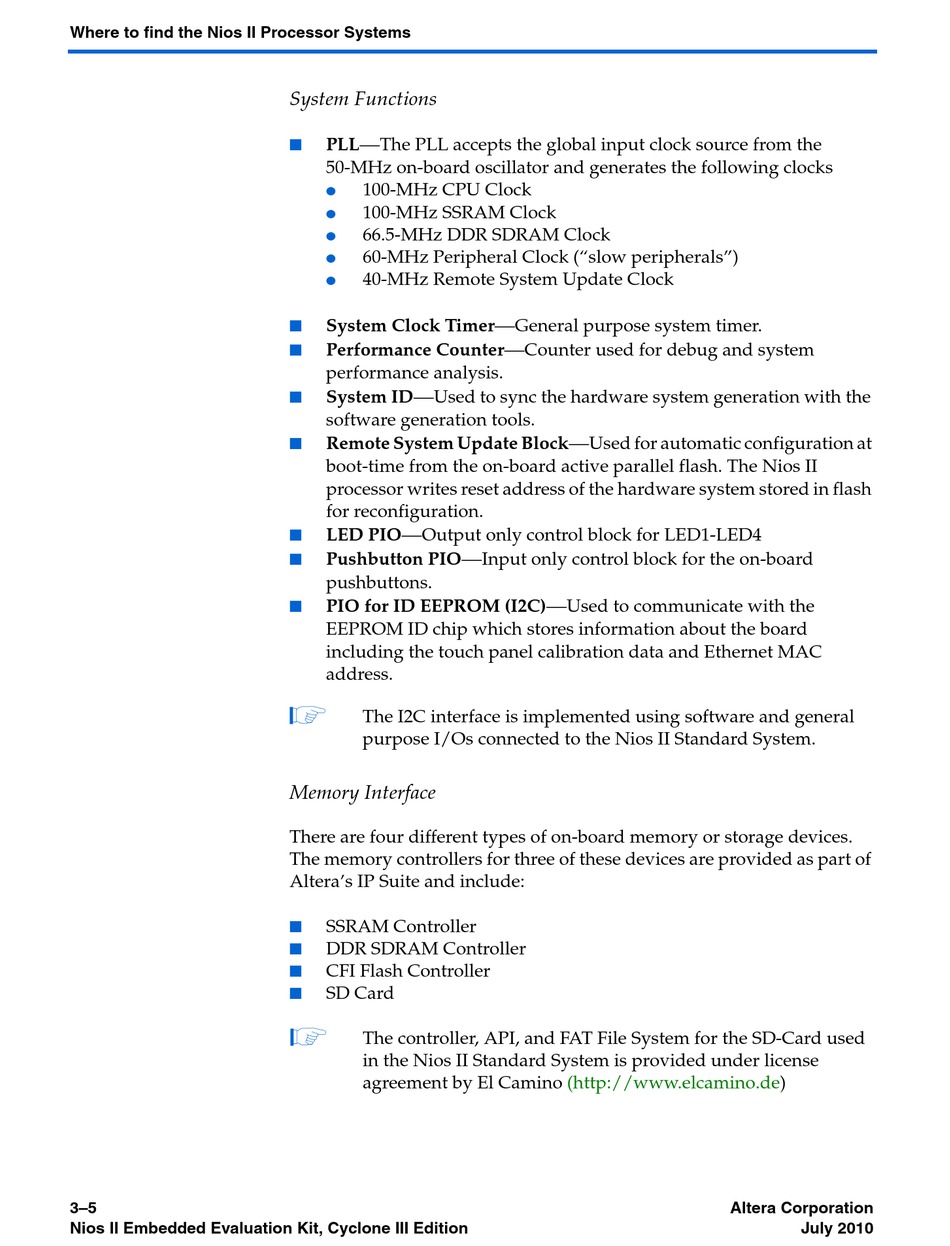

Where to find the Nios II Processor Systems
3–5
Nios II Embedded Evaluation Kit, Cyclone III Edition
System Functions
■
—
PLL The PLL accepts the global input clock source from the
50-MHz on-board oscillator and generates the following clocks
100-MHz CPU Clock
●
100-MHz SSRAM Clock
●
66.5-MHz DDR SDRAM Clock
●
60-MHz Peripheral Clock ("slow peripherals")
●
40-MHz Remote System Update Clock
●
■
System Clock Timer
■
Performance Counter
performance analysis.
■
—
System ID Used to sync the hardware system generation with the
software generation tools.
■
Remote System Update Block
boot-time from the on-board active parallel flash. The Nios II
processor writes reset address of the hardware system stored in flash
for reconfiguration.
■
LED PIO — Output only control block for LED1-LED4
■
—
Pushbutton PIO
pushbuttons.
■
PIO for ID EEPROM (I2C)
EEPROM ID chip which stores information about the board
including the touch panel calibration data and Ethernet MAC
address.
1
The I2C interface is implemented using software and general
purpose I/Os connected to the Nios II Standard System.
Memory Interface
There are four different types of on-board memory or storage devices.
The memory controllers for three of these devices are provided as part of
Altera's IP Suite and include:
■
SSRAM Controller
■
DDR SDRAM Controller
■
CFI Flash Controller
■
SD Card
1
The controller, API, and FAT File System for the SD-Card used
in the Nios II Standard System is provided under license
agreement by El Camino (http://www.elcamino.de)
Development Board Version 1.0.
— General purpose system timer.
—
Counter used for debug and system
— Used for automatic configuration at
Input only control block for the on-board
— Used to communicate with the
