Programming PSoC 6 BLE Prototyping Board using MiniProg3/

KitProg2

The target board provides a provision to program the PSoC 6 MCU using MiniProg3 or an external

KitProg2 via the 5-pin SWD header. To do this, connect wires or a 5-pin 100-mil spaced header to

J5. The PSoC 6 BLE Prototyping Board supports both power cycle and reset programming modes.

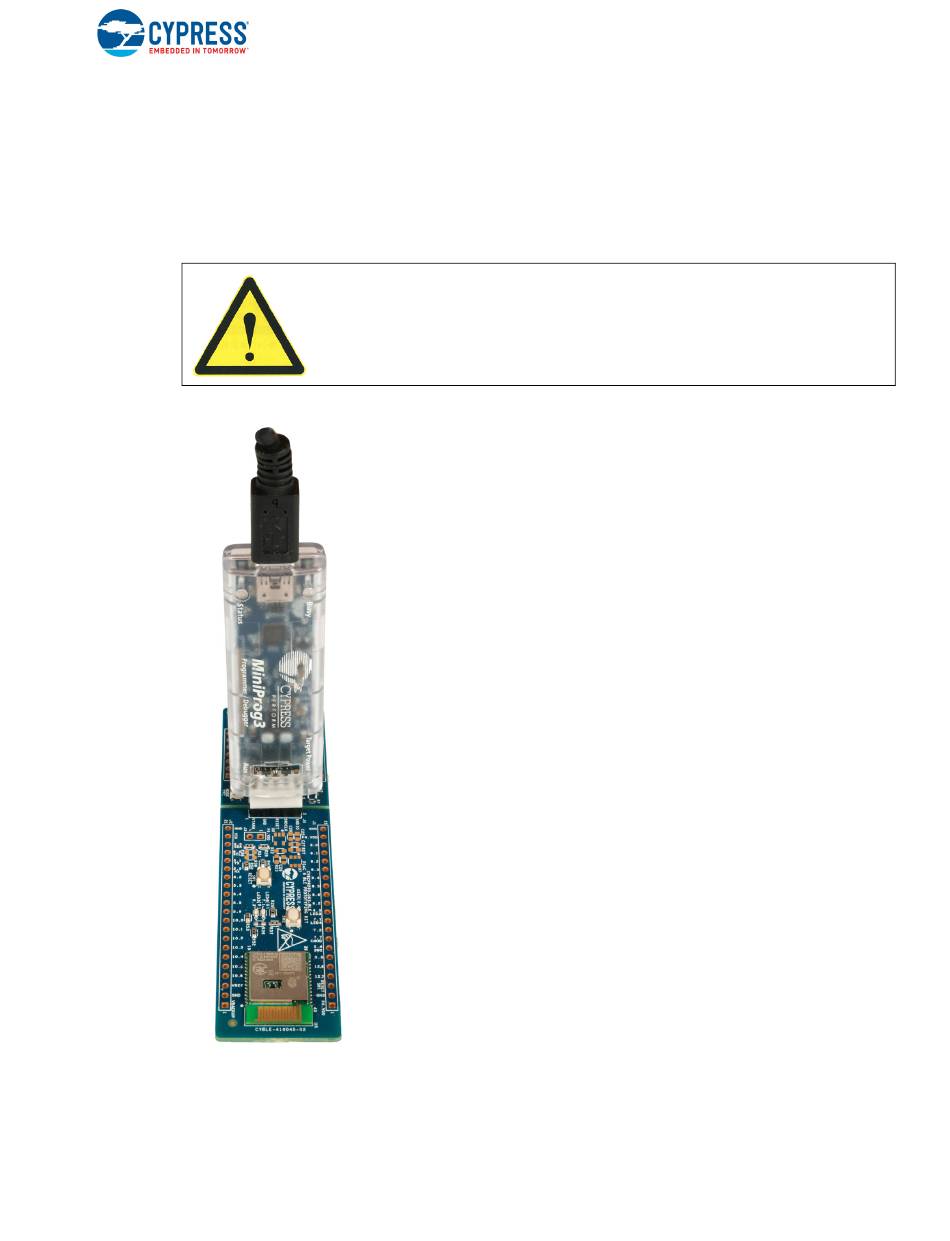

Figure A-15. Connecting the CY8CPROTO-063-BLE to a MiniProg3

Note:

CY8CKIT-002 MiniProg3

be purchased from the

PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **

Caution: MiniProg3 can provide up to 5 V at VTARG which will result in

permanent damage of the device. Please make sure that VTARG is in the

range 1.8 V to 3.3 V. Ideally, this configuration is only used when the

KitProg2 section is separated.

is not part of the PSoC 6 BLE Prototyping Board contents and can

Cypress Online

Store.
