A.2.5.3 Functionality of J6 and J7 Headers (KitProg2)
The KitProg2 board contains two single in-line headers (J6 and J7). Both are 1×7-pin-headers, used
to pull out several pins of the PSoC 5LP device to support advanced features such as low-speed
oscilloscope and a low-speed digital logic analyzer. This header also contains KitProg2 UART and
I2C bridge pins that can be used when the two boards are separated.
The J6 and J7 headers support 100-mil spacing, so you can solder connectors to connect the Kit-
Prog2 board to a development breadboard.

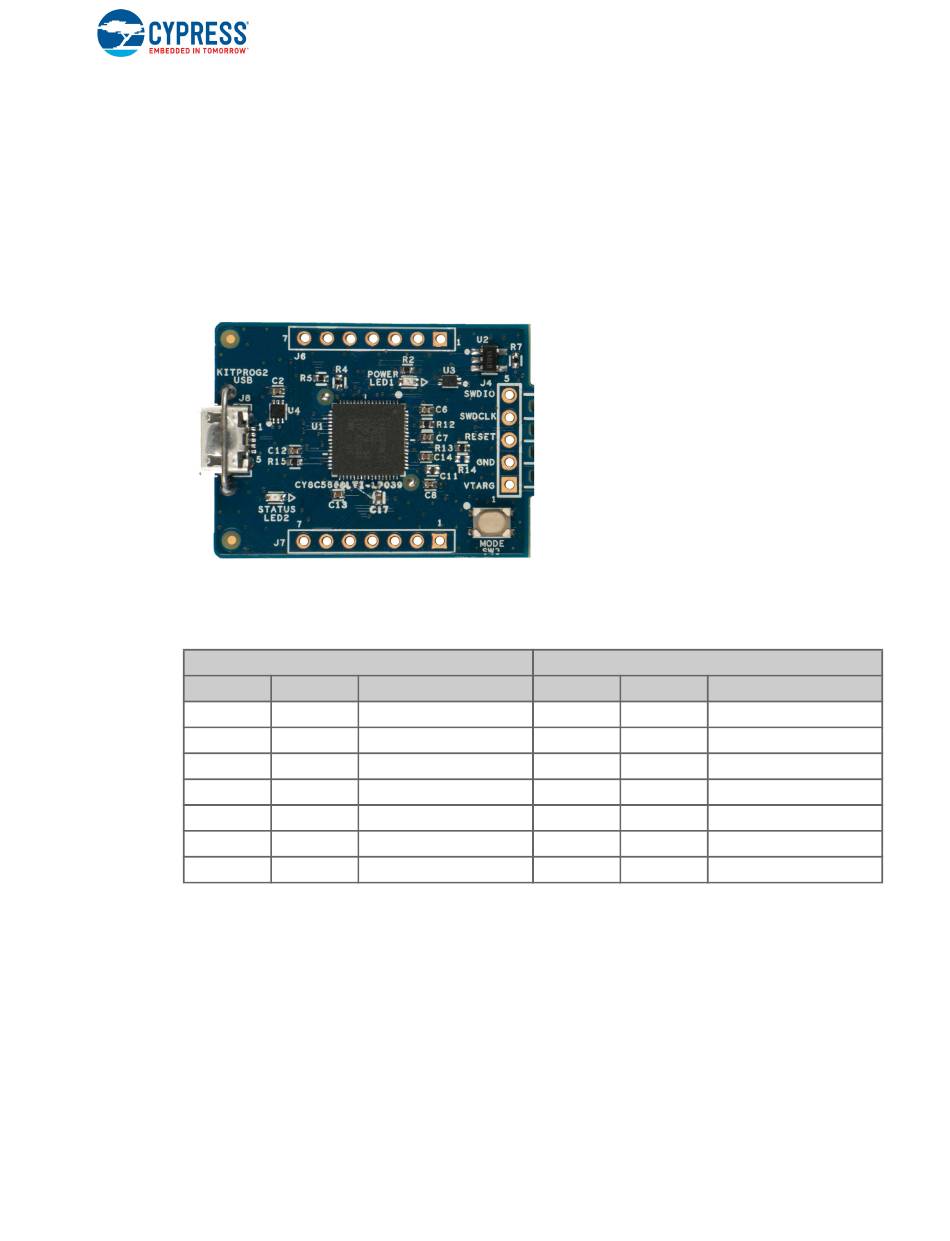

Figure A-9. J6 and J7 Headers
Table A-3. Pin Details of J6 and J7 Headers
PSoC 5LP KitProg2 Header (J6)
Pin
J6_01 P5LP_VDD Power
J6_02 GND
J6_03 P12.5
J6_04 P12.0
J6_05 P12.1
J6_06 P12.7
J6_07 P12.6
PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **
Signal Description
Ground
GPIO
GPIO/I2C_SCL
GPIO/I2C_SDA
GPIO/UART_RX
GPIO/UART_TX
PSoC 5LP KitProg2 Header (J7)
Pin Signal
J7_01 GND Ground
J7_02 P3.0 GPIO
J7_03 P3.4 GPIO
J7_04 P3.5 GPIO
J7_05 P3.6 GPIO
J7_06 P0.2 GPIO
J7_07 P0.1 GPIO
Appendix
Description
