A.2.6.1 User Button
The target PSoC 6 MCU board contains a button connected to the P0.4 pin on the PSoC 6 MCU.
This button can be used for general user inputs or for wakeup during Hibernate mode. The buttons
connect to ground on activation (active low) by default. User button (SW2) can be changed to active
high mode by changing the zero resistors shown below.

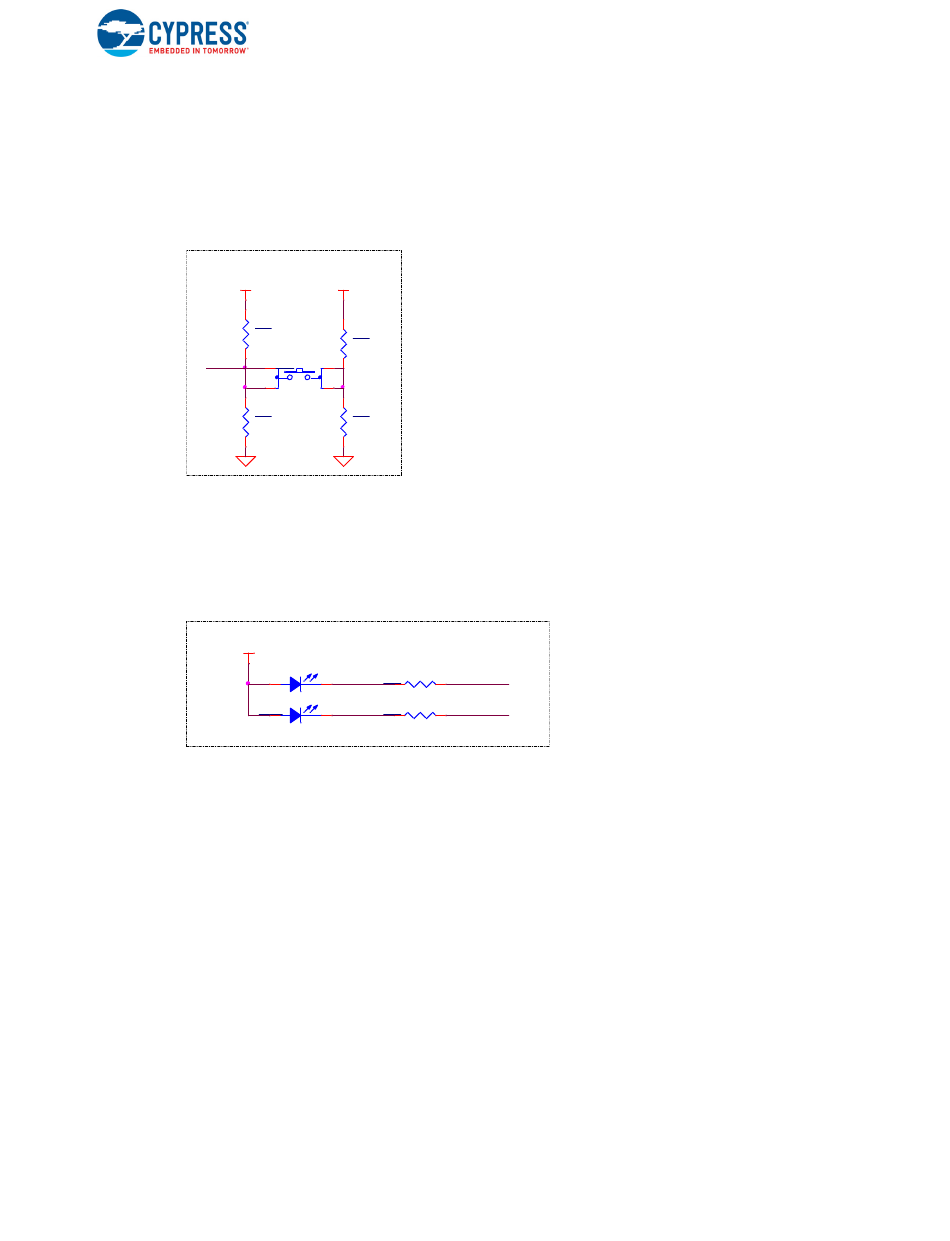

Figure A-11. User Button on the Board
User Button / Hibernate Wakeup
VBACKUP
R33
10K
1
P0_4
SW2
2
SKRPACE010
R30
10K
No Load
A.2.6.2 User LEDs
There are two user LEDs on the board connected to pins P6.3 (red) and P7.1 (green) to allow the
user to indicate an event or mode. The drive is active LOW so the LED will be ON when the GPIO is
driven to a '0' and OFF when driven to a '1'.
Figure A-12. User LEDs
VTARG
LED3
LED4
A.2.6.3 Reset Button
When the Reset button (SW1) is pressed, the XRES line of the PSoC 6 MCU is pulled to ground,
which resets the target device.
PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **
VBACKUP
R32
0ohm
No Load
4
3
R31
0ohm
User LEDs
P6_3
RED LED R36 470ohm
P7_1
GREEN LED R37 330ohm
