4. If there are no errors during build, program the firmware onto the kit by choosing Debug >
Program or press Ctrl + F5, as shown in
the Prototyping Board.

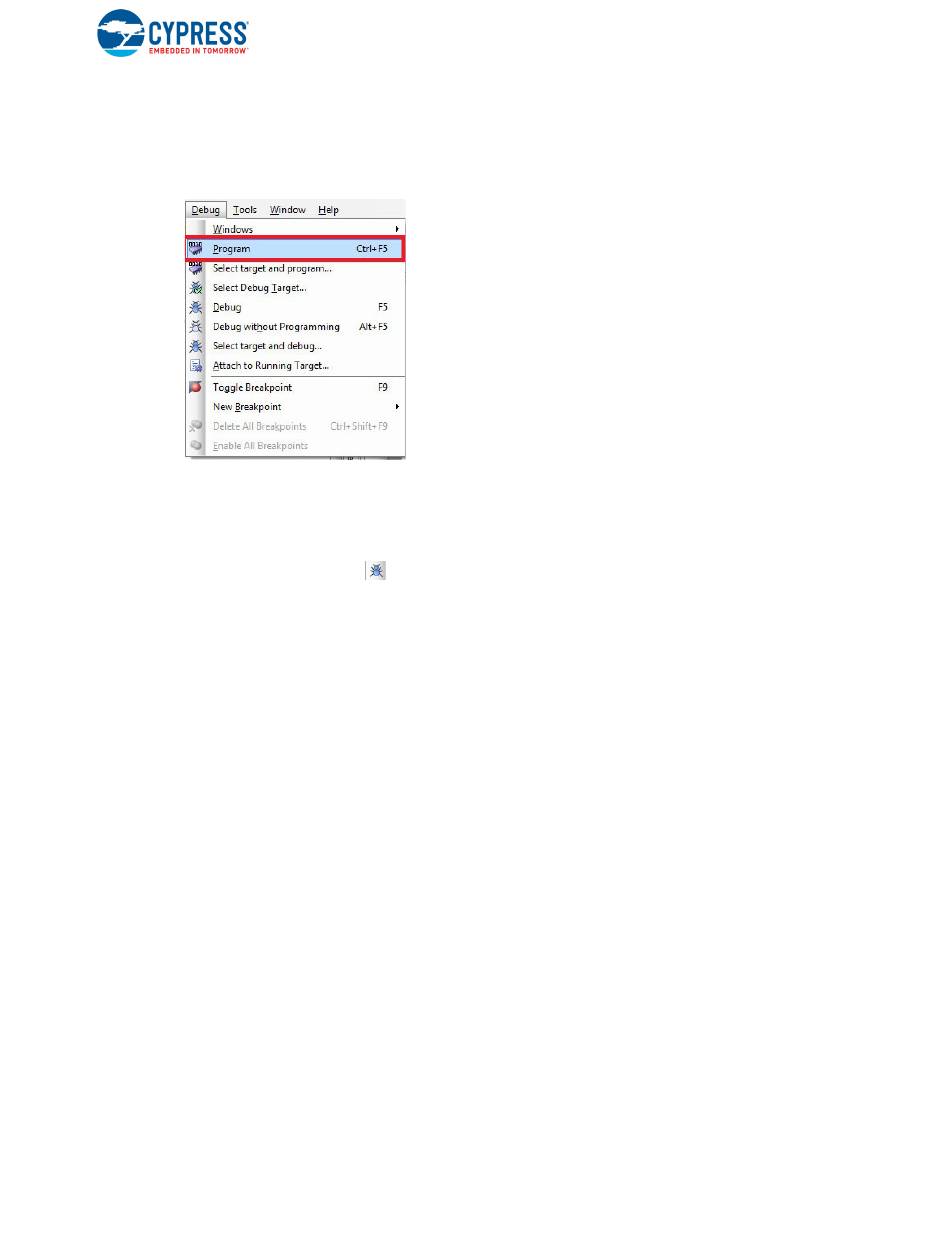

Figure 3-4. Program Device in PSoC Creator
3.2.2

Debugging using PSoC Creator

For debugging the project using PSoC Creator, follow steps 1–3 from
Creator on page 19
1. Click the Debug icon
2. Once PSoC Creator opens in Debug mode, use the buttons on the toolbar to debug your
application.
For more details on using the debug features, see the Debugging using PSoC Programmer
section of the
3.2.3

Programming using PSoC Programmer

PSoC Programmer (3.27.3 or later) can be used to program existing .hex files into the PSoC 6 BLE
Prototyping Board. For a detailed explanation on how to program using PSoC Programmer, see the
Programming using PSoC Programmer section in the
PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **
followed by:
or press F5. Alternatively, you can use the option Debug > Debug.
KitProg2 User
Guide.
Figure
3-4. This programs the target PSoC 6 MCU on
KitProg2 User
Kit Operation
Programming using PSoC
Guide.
20
