Programming and Debugging the Target PSoC 6 MCU

The target PSoC 6 MCU can be programmed and debugged using KitProg2. Before programming
the device, make sure that PSoC Creator and PSoC Programmer software are installed on the PC.
See Install Software chapter on page 15
3.2.1

Programming using PSoC Creator

1. Connect the Prototyping Board to the PC through the USB Micro-B Connector (J8) as shown in
Figure 3-2. The kit enumerates as a composite device. If you are plugging in the PSoC 6 BLE
Prototyping Board to your PC for the first time, the kit drivers will get installed automatically. The
amber status LED (LED2) will turn ON to indicate successful enumeration. If the amber status
LED (LED2) is OFF, see the
troubleshooting instructions.

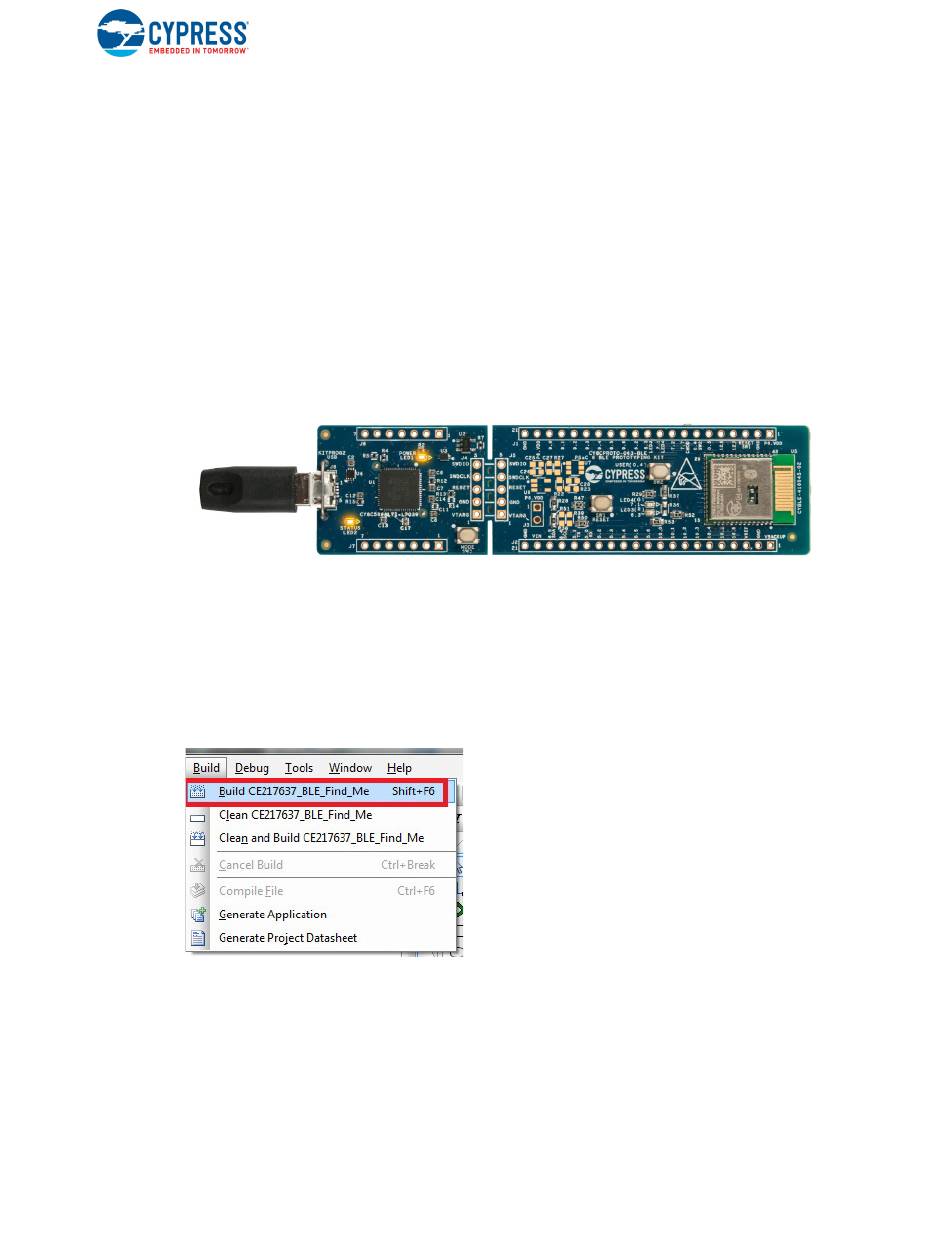

Figure 3-2. Connecting the CY8CPROTO-063-BLE PSoC 6 BLE Prototyping Board to a PC
2. Open the desired project in PSoC Creator. From the PSoC Creator, go to File > Open > Project/
Workspace. You can browse and open a previously saved project. If you want to open one of the
code examples compatible with this kit, follow the instructions in the
page 22.
3. Select the option Build > Build <Project_Name> or press Shift + F6 to build the project as
shown in Figure
Figure 3-3. Build a Code Example
PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **
for more information.
KitProg2 User Guide
3-3.
for details on the KitProg2 status and
Code Examples chapter on
Kit Operation
19
