A.2.5

Header Connections

The PSoC 6 BLE Prototyping Board supports a number of unpopulated headers on both the Kit-
Prog2 and the target PSoC 6 MCU sections.
A.2.5.1
Functionality of the J1 and J2 Headers (Target Board)
The target PSoC 6 MCU section contains two single inline headers (J1 and J2). These 1×21-pin
headers have 0.1-inch spacing and include all of the GPIOs available on the EZ-BLE Creator
Module. Power pins, reference input and reset signal are also available on these connectors. See
Figure A-7
for details.
The target headers J1 and J2 are partially compatible with mikroBUS™. It supports only 3.3 V oper-
ation with
Click

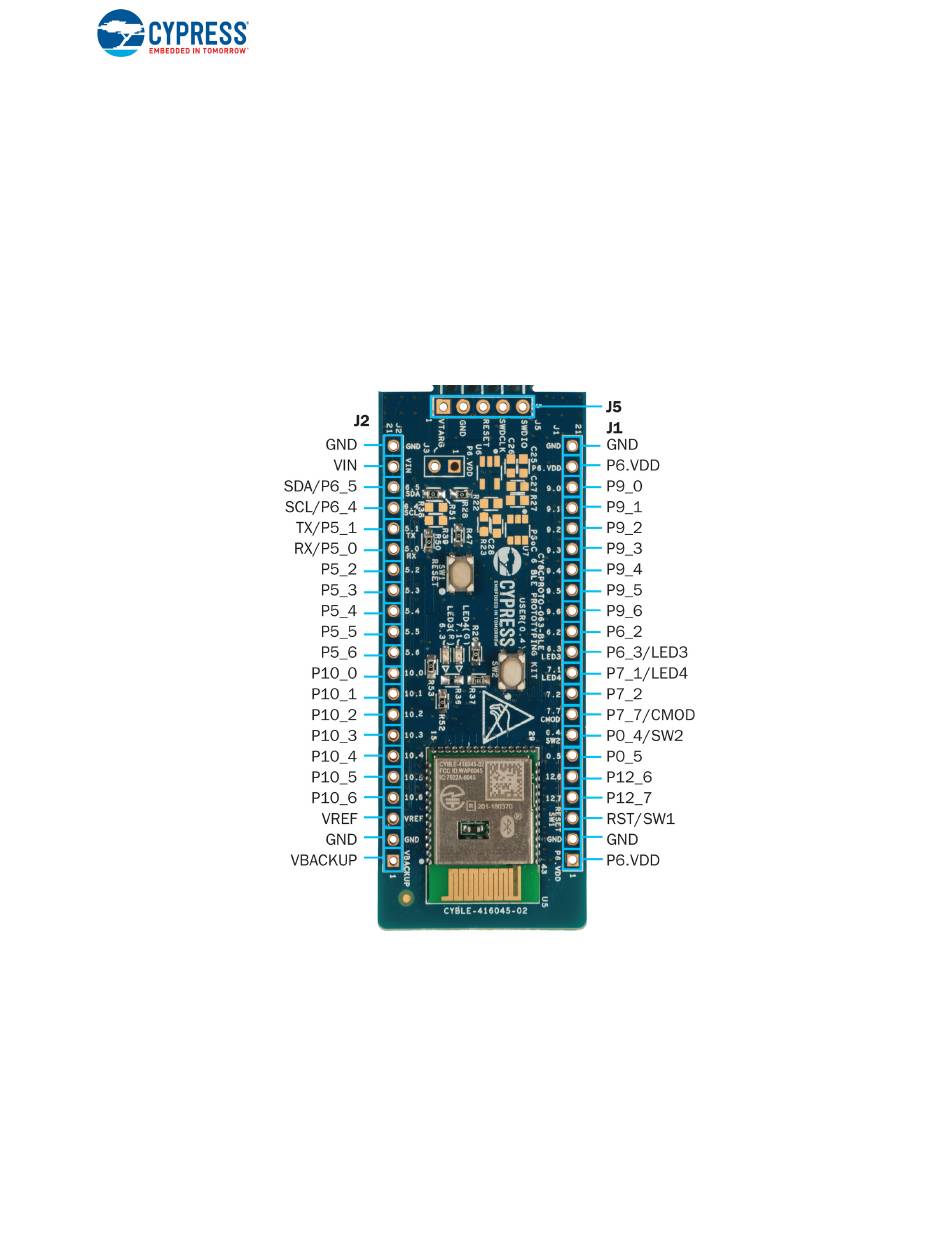

Figure A-7. J1 and J2 Headers
PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **
Boards, and does not have the reset pin functionality.
Appendix
32
