A.2.5.2 Functionality of J4 and J5 Headers (KitProg2 to PSoC 6 MCU)
The KitProg2 and target boards each contain a 1×5-pin header. These headers provide a physical
connection between the two devices. Specifically, the connection includes the SWD interface,
required to program/debug the target PSoC 6 MCU in the EZ-BLE Creator Module, power, ground,
and reset.

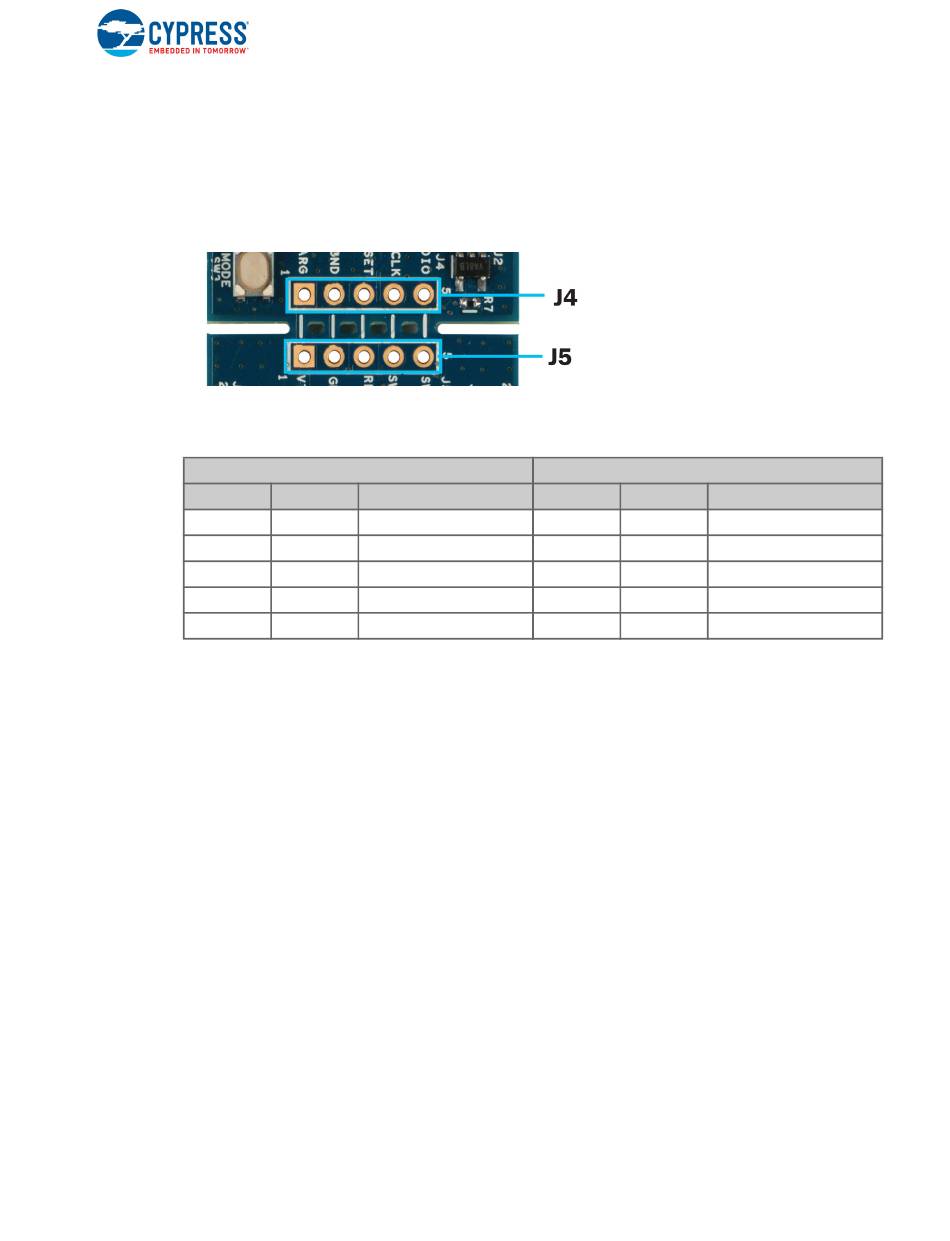

Figure A-8. J4 and J5 Headers
Table A-2. Pin Details of J4 and J5 Headers
Pin
J4_1 VTARG
J4_2 GND
J4_3 P12.4
J4_4 P12.3
J4_5 P12.2
When the boards are separated, the KitProg2 board can be used to program any other PSoC 3,
PSoC 4, PSoC 5LP and PSoC 6 family of devices via J4.
PSoC® 6 BLE Prototyping Board Guide, Doc. # 002-24993 Rev. **
KitProg2 Header (J4)
Signal Description
Power
Ground
Reset
SWD_CLK
SWD_IO
PSoC 6 MCU Header (J5)
Pin Signal
J5_1 VTARG Power
J5_2 GND Ground
J5_3 XRES Reset
J5_4 P6.7 SWD_CLK
J5_5 P6.6 SWD_IO
Appendix
