Dimensional drawings
Dimensional drawing delta ®
0280, material version PV
7
120
140

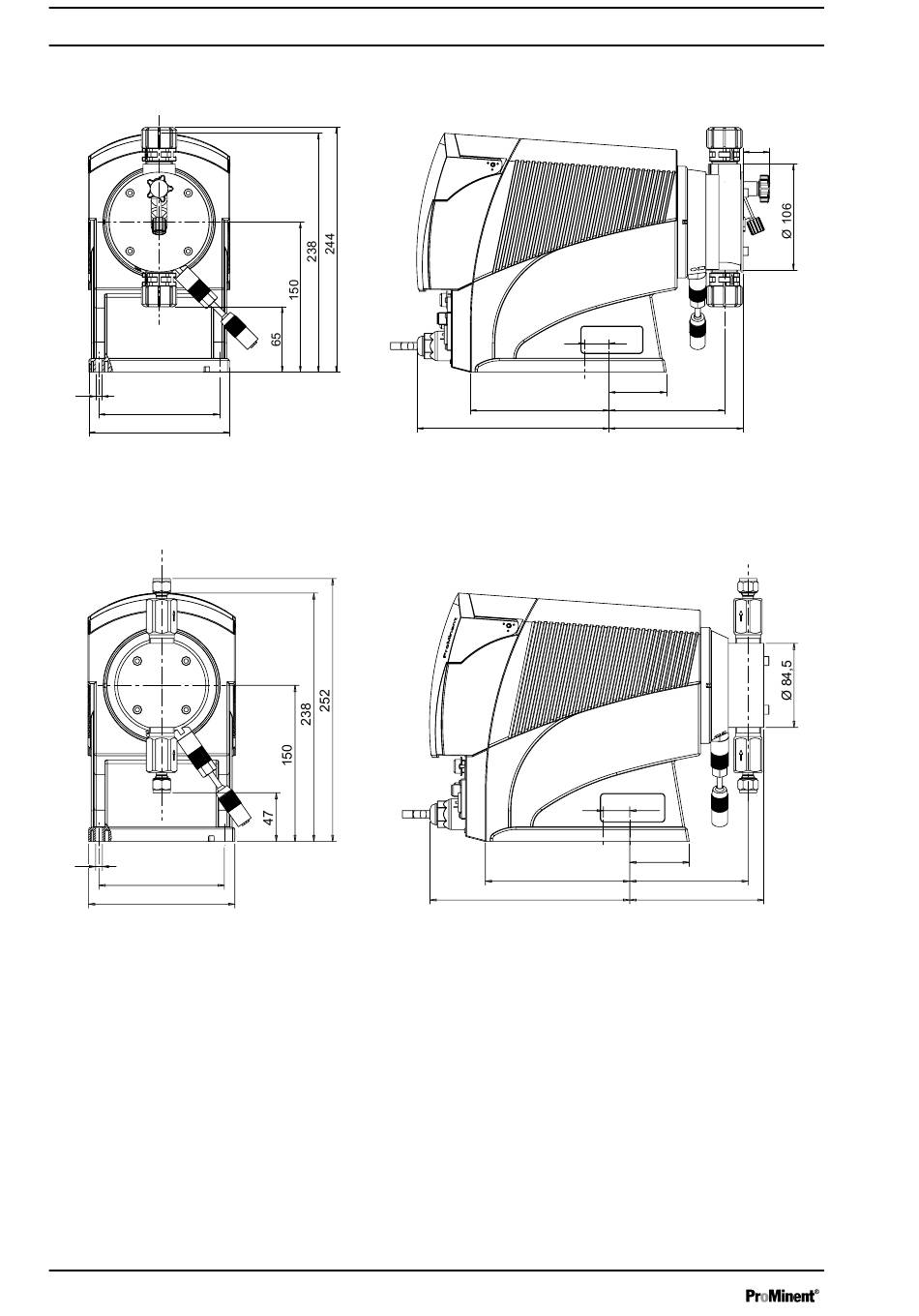

Fig. 36: Dimensional drawing delta
Dimensional drawing delta ®
0730, material version SS
7
120
140
Fig. 37: Dimensional drawing delta
92
type 0450 -
P_DE_0043_SW_2
® type 0450 - 0280, material version PV - dimensions in mm
type 1612 -
P_DE_0044_SW_2
® type 1612 - 0730, material version SS - dimensions in mm
25
57
138 115
191 133
25
57
138 113
191
26
6x4
128
