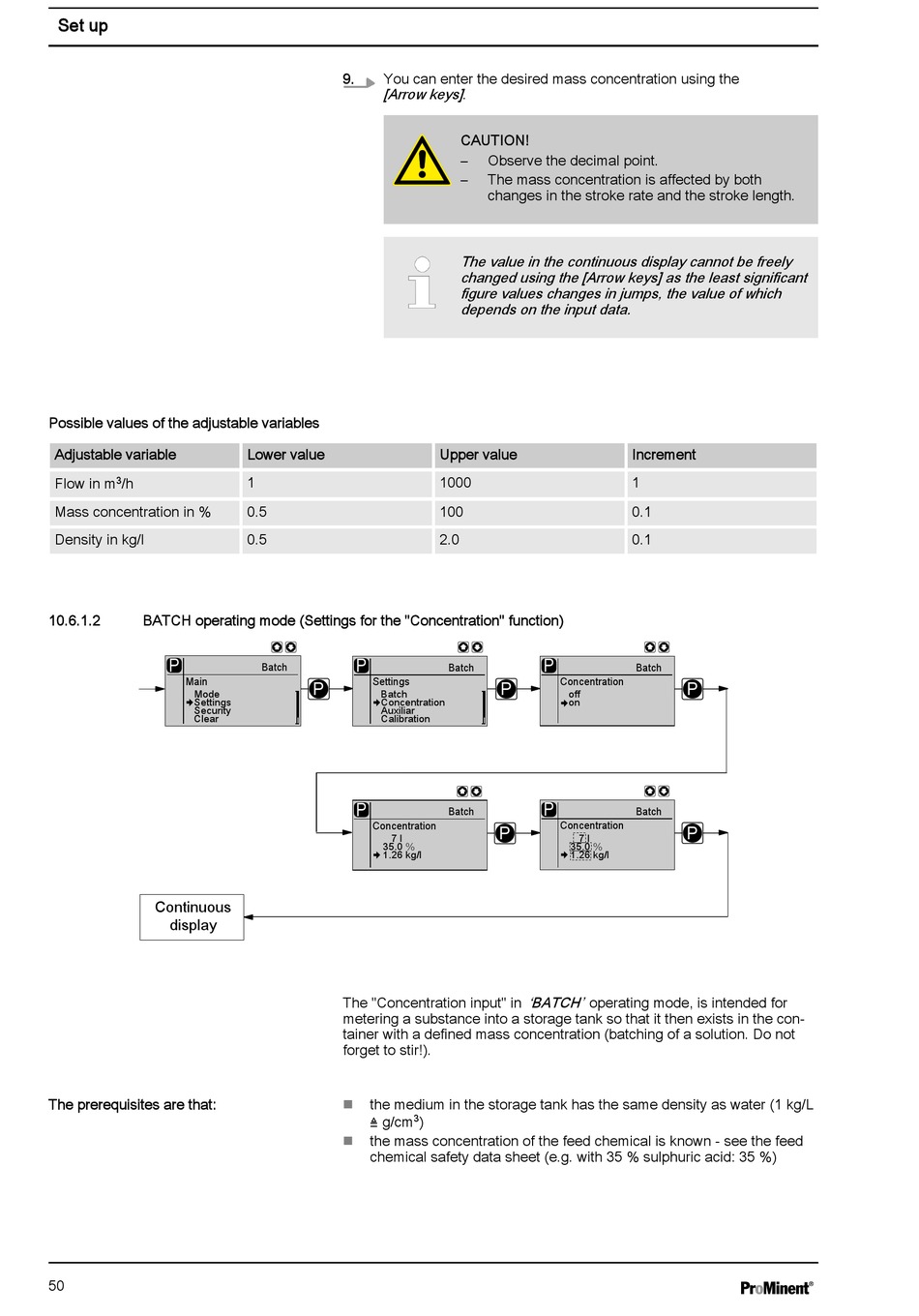

ProMinent delta DLTa optoDrive Operating Instructions Manual page 50

Set up
Possible values of the adjustable variables
Adjustable variable
Flow in m 3 /h
Mass concentration in %
Density in kg/l
10.6.1.2 BATCH operating mode (Settings for the "Concentration" function)
P
Main
Mode
Settings
Security
Clear
Continuous
display
The prerequisites are that:
50
9. You can enter the desired mass concentration using the
[Arrow keys] .
Lower value
1
0.5
0.5
P
Batch
Settings
P
Batch
Concentration
Auxiliar
Calibration
P
Concentration
7 l
35.0 %
1.26 kg/l
The "Concentration input" in
metering a substance into a storage tank so that it then exists in the con‐
tainer with a defined mass concentration (batching of a solution. Do not
forget to stir!).
the medium in the storage tank has the same density as water (1 kg/L
n
≜ g/cm 3 )
the mass concentration of the feed chemical is known - see the feed
n
chemical safety data sheet (e.g. with 35 % sulphuric acid: 35 %)
CAUTION!
– Observe the decimal point.
– The mass concentration is affected by both
changes in the stroke rate and the stroke length.
The value in the continuous display cannot be freely
changed using the [Arrow keys] as the least significant
figure values changes in jumps, the value of which
depends on the input data.
Upper value
1000
100
2.0
P
Batch
Concentration
P
off
on
P
Batch
Concentration
P
7 l
35.0 %
1.26 kg/l
'BATCH' operating mode, is intended for
Increment
1
0.1
0.1
Batch
P
Batch
P
