Clarus SQ 8 MS Hardware Guide
Reassembling
1. Replace the source parts into the source as shown below. Remember to insert
the parts into the source only as positioned below. the parts into the source only as positioned below.
You may want to insert the trap insulator and trap before you insert the
repeller.

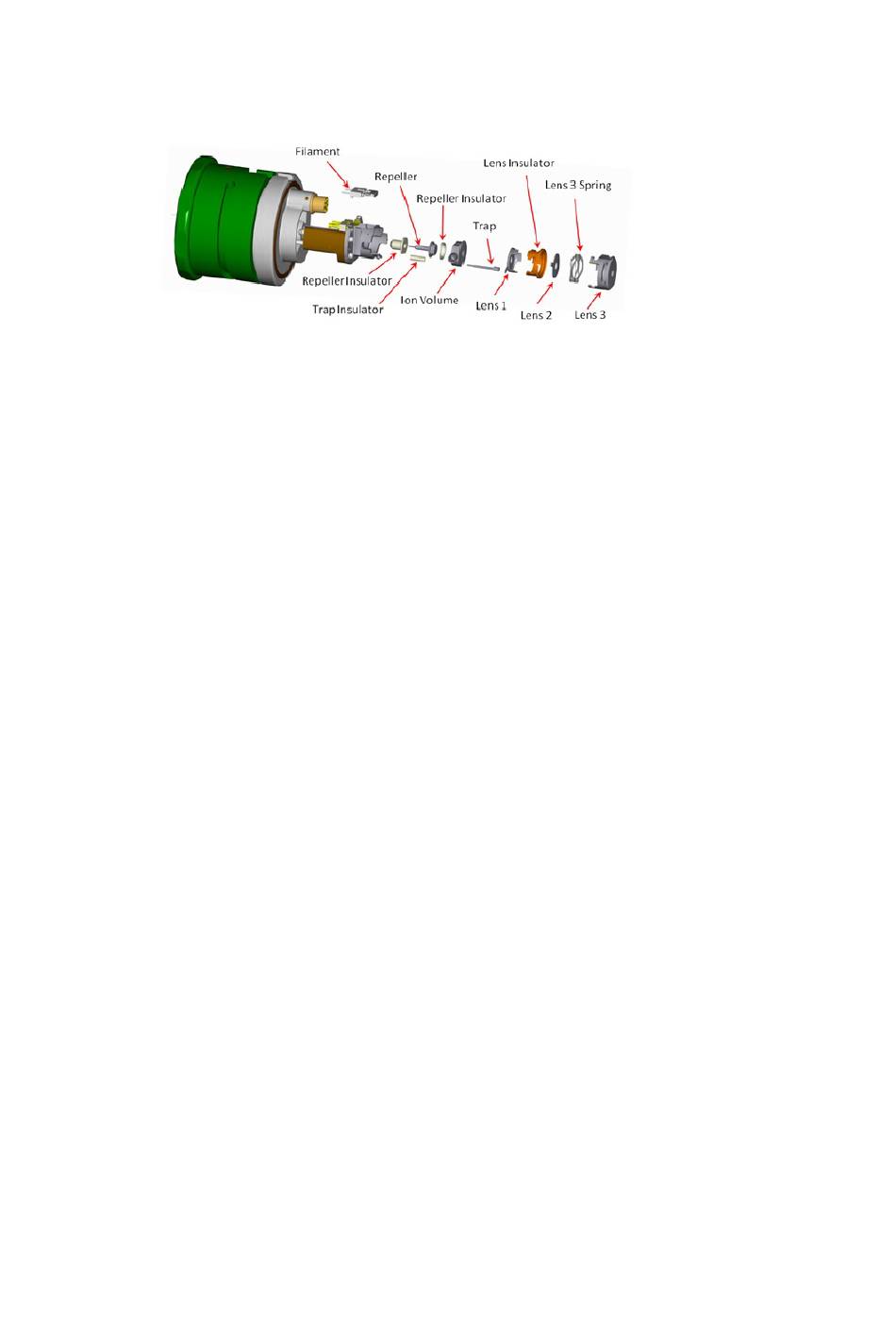

Figure 29 Figure 29 Replacing Replacing the source
2. Align the Lens 3 grabbers with the pin on the source, then turn Lens 3
clockwise to lock it in place. See Figure 27.
3. Position the filament assembly with the coiled filament wire facing and
centered in the orifice in the ion volume and the white ceramic rests on the tab.
4. Insert the Filament retaining clip into the slot in the block to hold it in place.
5. Align the four male gold leads (Trap, Repeller and Filament) with the four
gold female connectors in the ceramic insulating connector assembly.
Carefully move the connector assembly upwards to fully encapsulate the four
6.
gold leads. You should be able to feel it "click" into position around the leads
and close to the underside of the block.
7. Install the source assembly back into the mass spectrometer by following the
procedure Removing and Returning the Source on page 71.
94
