9.6.1.

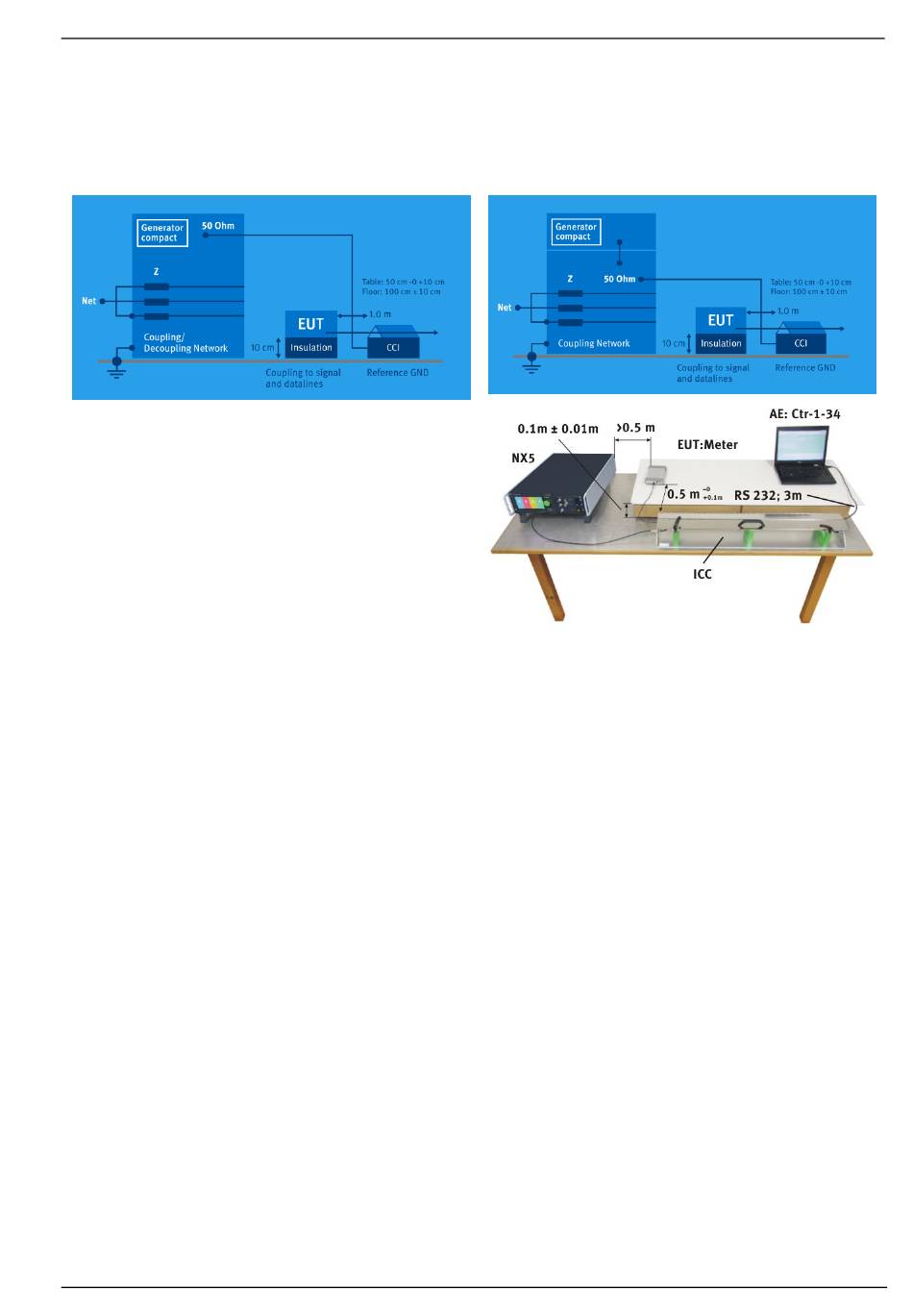

Test setup with capacitive coupling clamp

When using the coupling clamp, the minimum distance between the coupling plates and all other conductive
surfaces (including the generator), except the ground reference plane beneath the coupling clamp and beneath
the EUT, shall be at least 0.5 m.
The distance between any coupling devices and the
EUT shall be (0.5 − 0/+0,1) m for tabletop equipment
testing, and (1,0 ± 0,1) m for floor standing equipment,
unless otherwise specified in product standards. When
it is not physically possible to apply the distances
mentioned above, other distances can be used and
shall be recorded in the test report.
