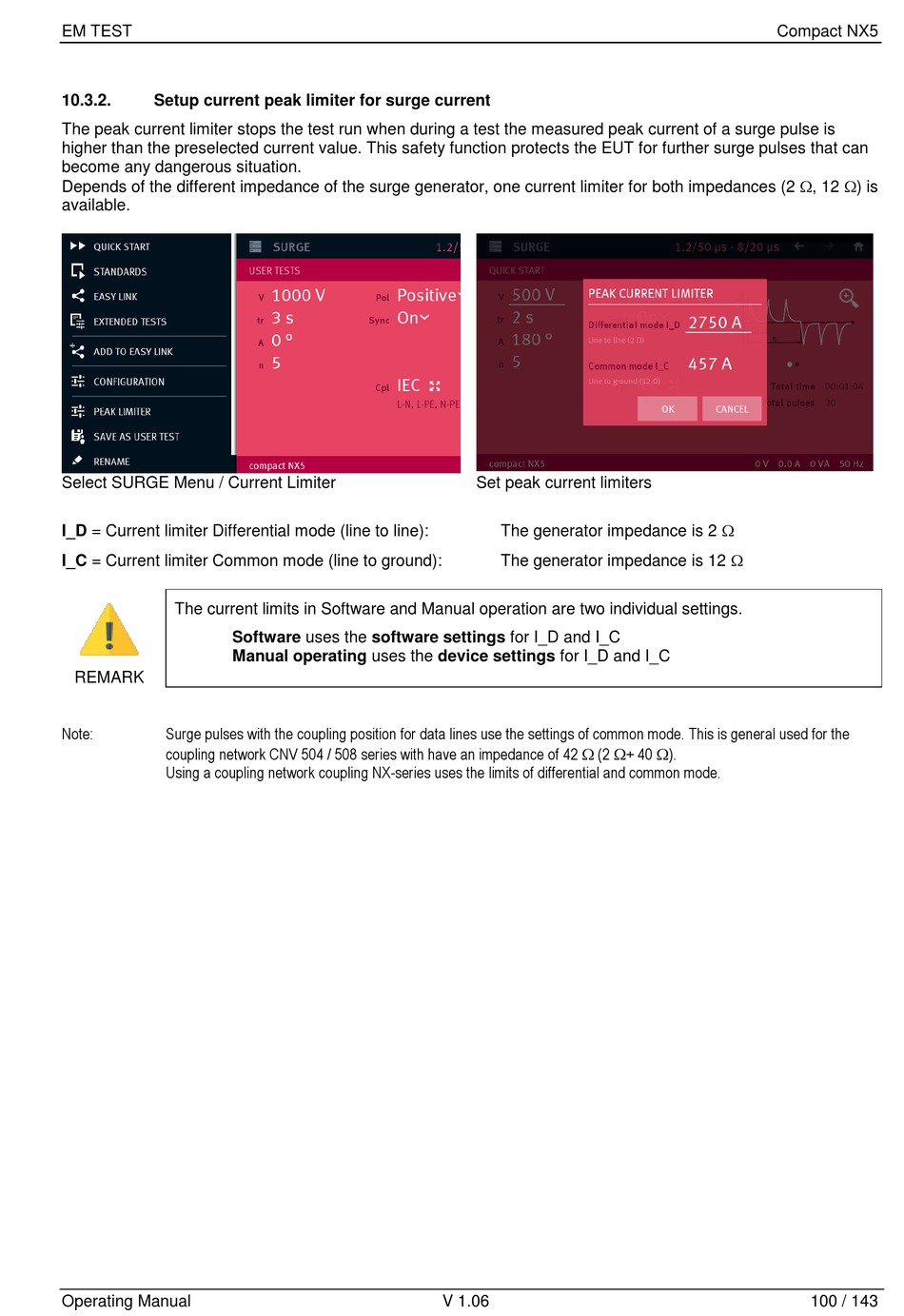

10.3.2.

Setup current peak limiter for surge current

The peak current limiter stops the test run when during a test the measured peak current of a surge pulse is
higher than the preselected current value. This safety function protects the EUT for further surge pulses that can
become any dangerous situation.
Depends of the different impedance of the surge generator, one current limiter for both impedances (2 , 12 ) is
available.
Select SURGE Menu / Current Limiter
I_D = Current limiter Differential mode (line to line):
I_C = Current limiter Common mode (line to ground):
The current limits in Software and Manual operation are two individual settings.
Software uses the software settings for I_D and I_C
Manual operating uses the device settings for I_D and I_C
REMARK
Note: Surge pulses with the coupling position for data lines use the settings of common mode. This is general used for the
coupling network CNV 504 / 508 series with have an impedance of 42  (2 + 40 ).
Using a coupling network coupling NX-series uses the limits of differential and common mode.
Operating Manual
Set peak current limiters
The generator impedance is 2 
The generator impedance is 12 
