Remote Control; Rtf1 19Pol - EWM Microplasma 25 Operating Instructions Manual

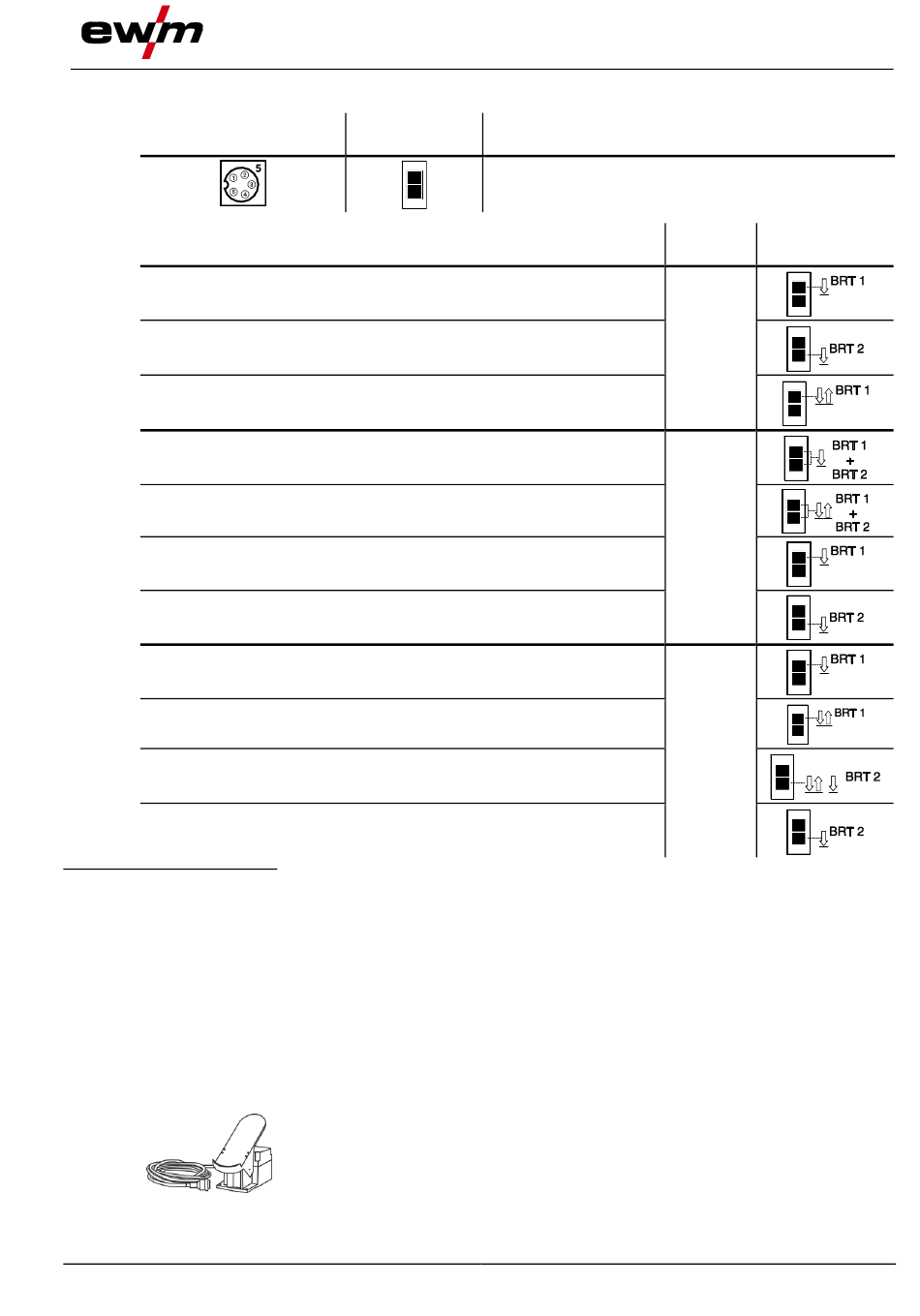

Standard torch with one rocker (rocker, two torch triggers)
Figure
Functions
Welding current on/off
Secondary current
Secondary current (tapping function)
Welding current on/off
Secondary current (tapping function
2
Up function
Down function
Welding current on/off
Secondary current (tapping function)
2
Up function
Down function
1
> see 5.7.1 chapter
2
> see 5.7.3 chapter
5.9

Remote control

The operation of the remote control and its settings are directly dependent on the configuration of the
respective welding machine or wire feed unit. The settings are defined by changeover switches or by
setting special parameters (dependent on the control).
The position of the key switch, to protect against unauthorised use, also has a direct influence on the
operation of the respective remote control.
The remote controls are operated on the 19-pole remote control connection socket (analogue).
5.9.1

RTF1 19POL

099-007027-EW501
28.08.2018
Operating
elements
1
)/(latched operating mode)
1
)
2
1
)/(latched operating mode)
2
Functions
•
Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
•
Start/stop welding operation (TIG)
Design and function
Explanation of symbols
BRT 1 = torch trigger 1
BRT 2 = torch trigger 2
Remote control
Mode Operating
elements
1
(ex works)
2
3
