5.1.10 Welding torch and workpiece line connection

5.1.10.1 Plasma welding

Before commissioning, the plasma welding torch must be equipped for the welding JOB and
correspondingly set/adjusted!

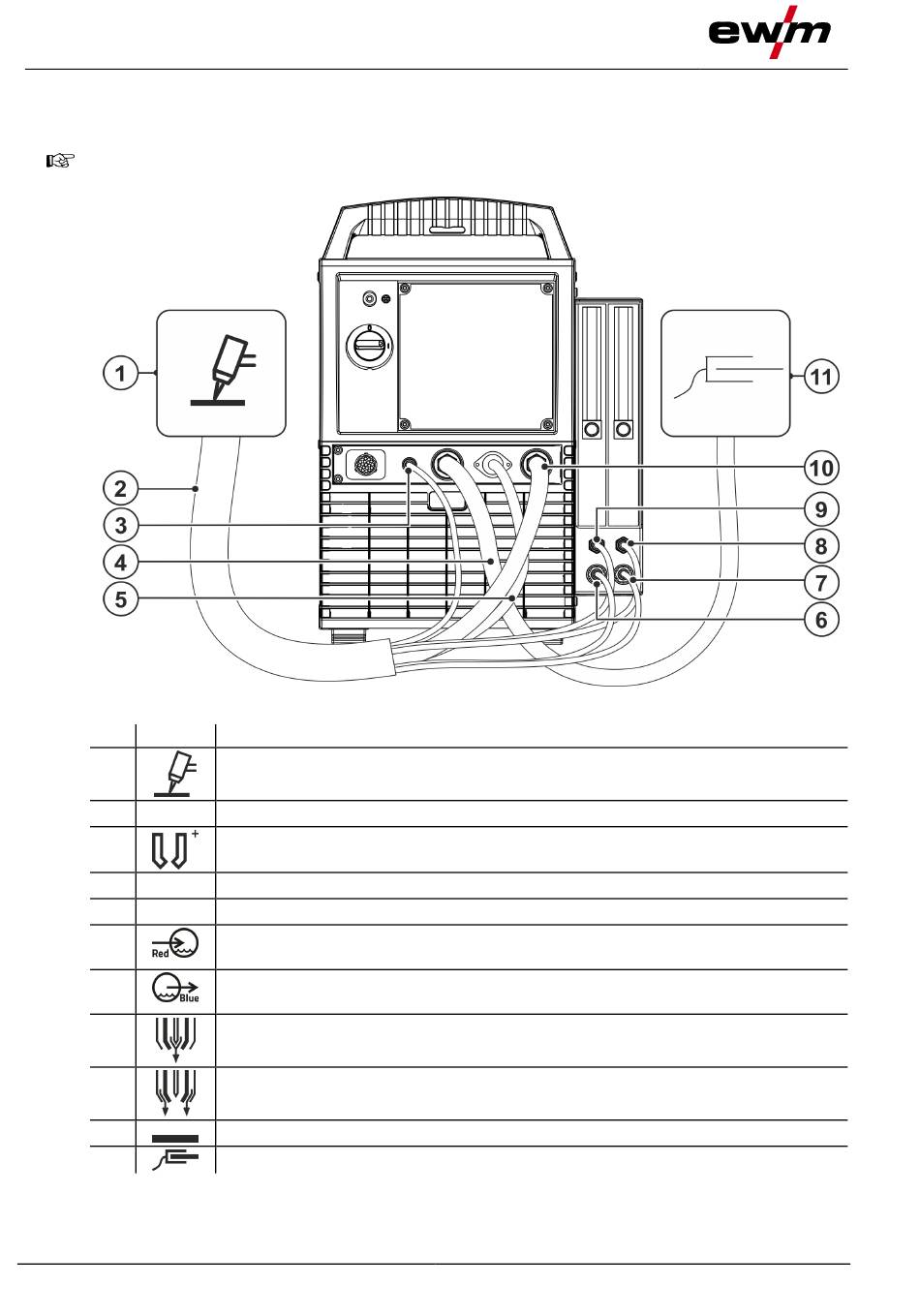

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
34
Description 0
Welding torch
Torch hose package
Pilot current connection socket
Plasma welding torch nozzle potential
Workpiece lead
Connection socket, welding torch control cable > see 5.1.10.3 chapter
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Quick connect coupling plasma gas (plug nipple type 20)
Connection to welding torch
Quick connect coupling shielding gas (coupling type 20)
Connection to welding torch
Welding current connection socket, welding torch
Workpiece
