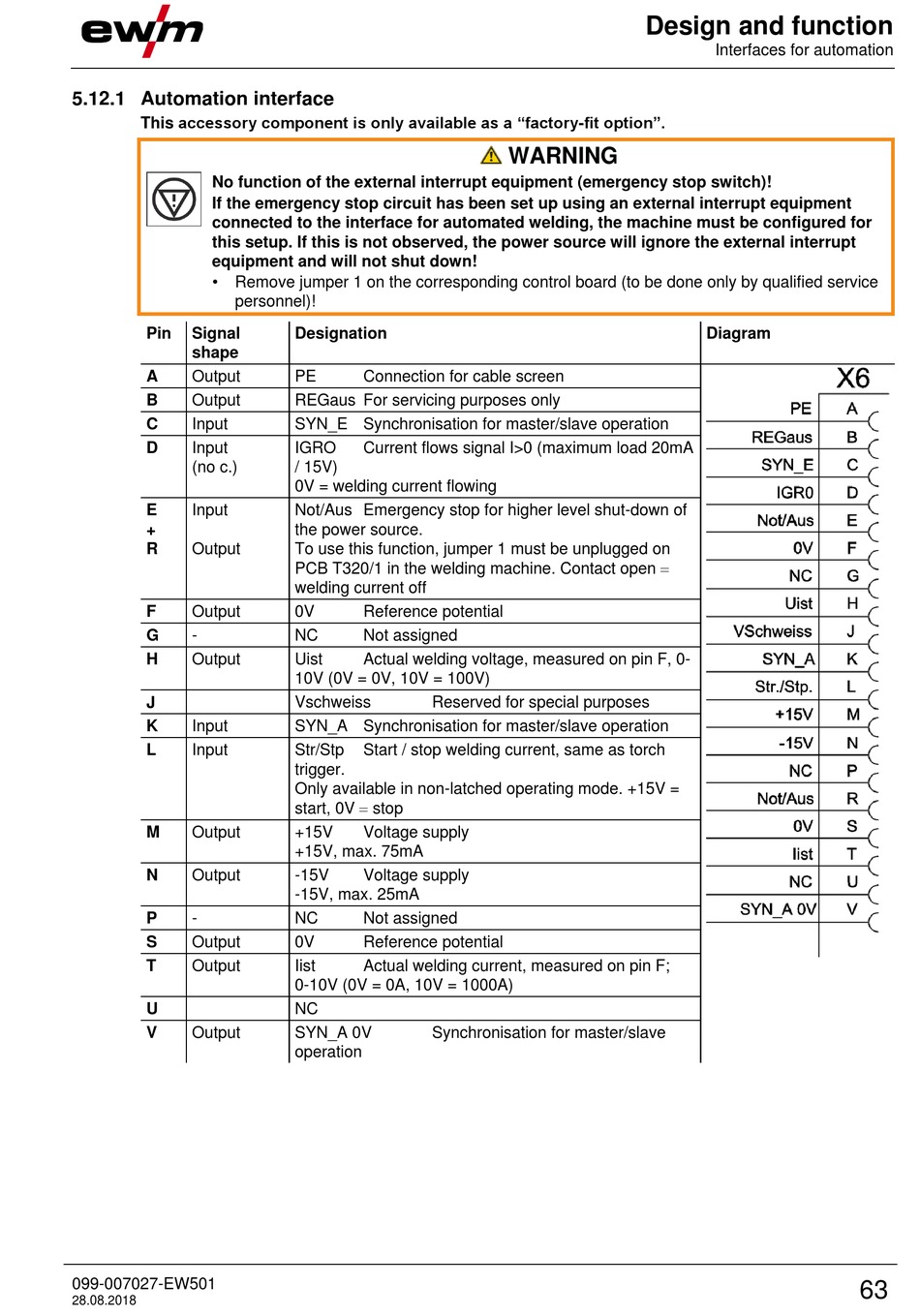

5.12.1 Automation interface

This accessory component is only available as a "factory-fit option".
No function of the external interrupt equipment (emergency stop switch)!
If the emergency stop circuit has been set up using an external interrupt equipment
connected to the interface for automated welding, the machine must be configured for
this setup. If this is not observed, the power source will ignore the external interrupt
equipment and will not shut down!
•
Remove jumper 1 on the corresponding control board (to be done only by qualified service
personnel)!
Pin Signal
shape
Output
A
B Output
Input
C
D Input
(no c.)
Input
E
+
R Output
F Output
G -
H Output
J
K Input
L Input
Output
M
N Output
-
P
S Output
T Output
U
Output
V
099-007027-EW501
28.08.2018
Designation
PE Connection for cable screen
REGaus For servicing purposes only
SYN_E Synchronisation for master/slave operation
IGRO Current flows signal I>0 (maximum load 20mA
/ 15V)
0V = welding current flowing
Not/Aus Emergency stop for higher level shut-down of
the power source.
To use this function, jumper 1 must be unplugged on
PCB T320/1 in the welding machine. Contact open 
welding current off
0V Reference potential
NC Not assigned
Uist Actual welding voltage, measured on pin F, 0-
10V (0V = 0V, 10V = 100V)
Vschweiss Reserved for special purposes
SYN_A Synchronisation for master/slave operation
Str/Stp Start / stop welding current, same as torch
trigger.
Only available in non-latched operating mode. +15V =
start, 0V  stop
+15V Voltage supply
+15V, max. 75mA
-15V Voltage supply
-15V, max. 25mA
NC Not assigned
0V Reference potential
Iist Actual welding current, measured on pin F;
0-10V (0V = 0A, 10V = 1000A)
NC
SYN_A 0V Synchronisation for master/slave
operation
Design and function
WARNING
Interfaces for automation
Diagram
63
