REMOVAL & REPLACEMENT

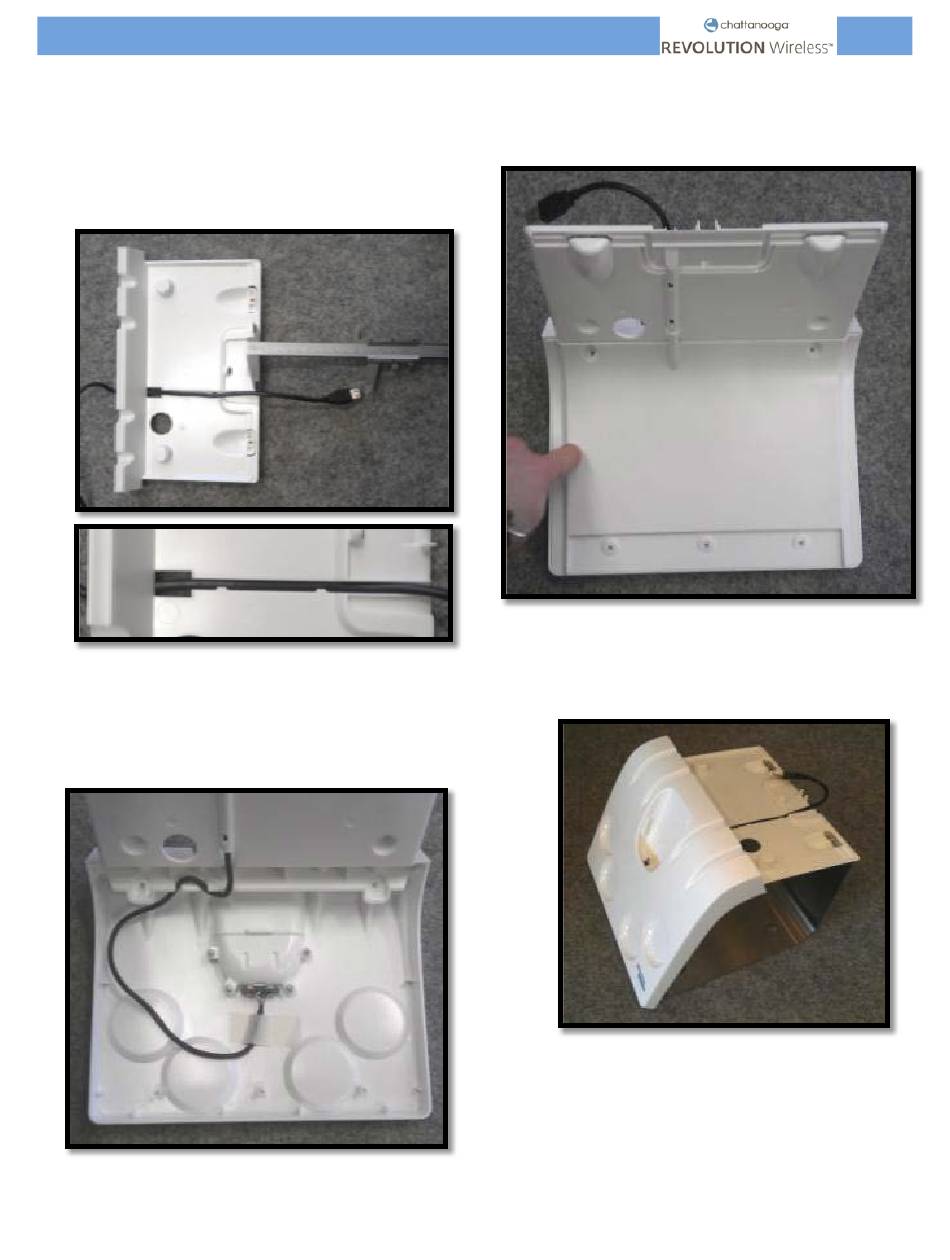

3. Introduce the USB cable into the whole of the
docking station tablet holder and adjust the
length of the USB cable over passing the unit at
± 3
115
[mm]. Then clip the cable into the
docking tab holder.
4. Once that the cable is fixed, join the docking
tablet holder and the docking front top. The USB
cable must placed and fixed with a loop as
shown in the figure below.
5. Place the docking subassembly front bottom and
screw it back.
To finish the assembly, do the exact same other steps
backwards as explained in this section.
Note: Final accessories may differ from the picture
41
