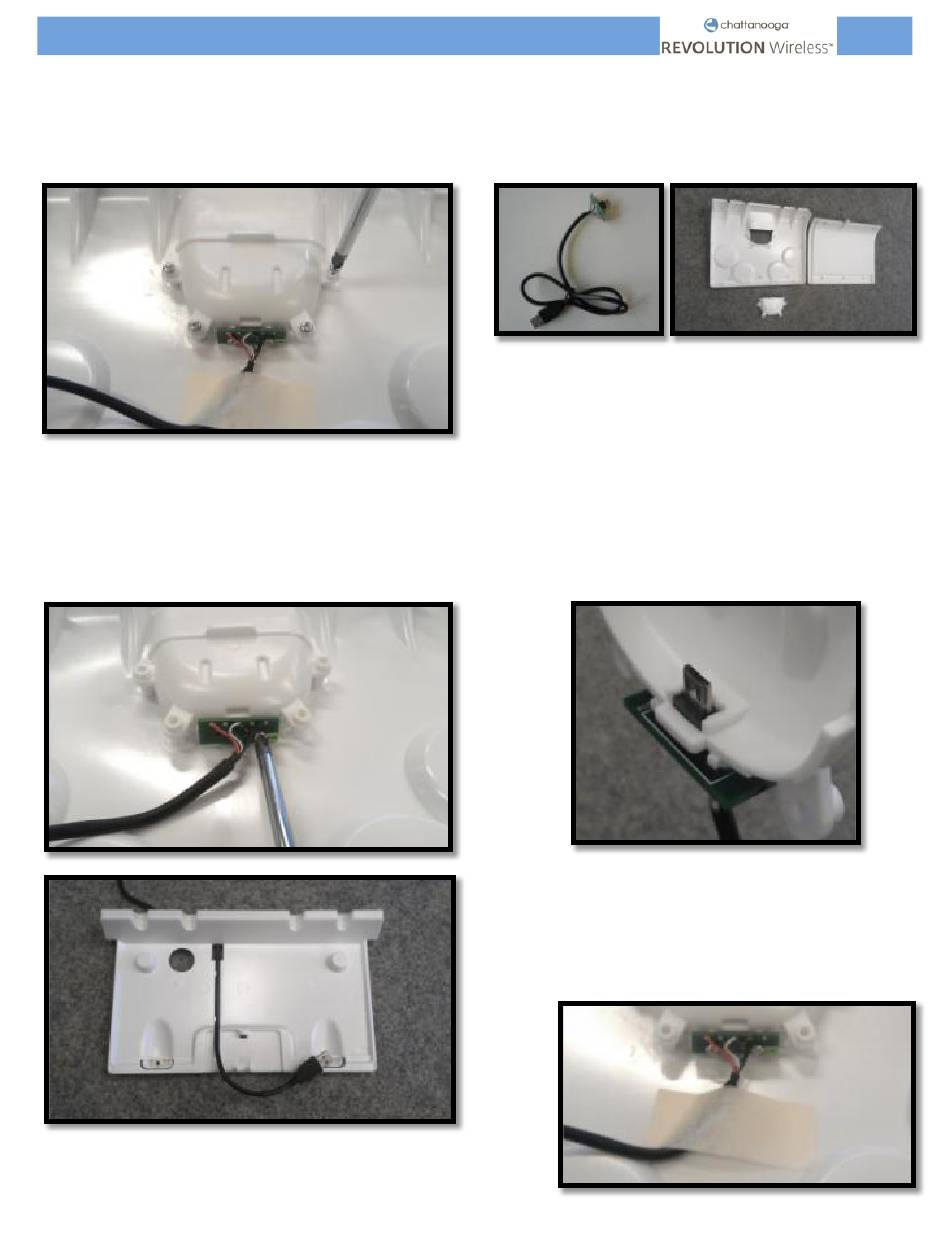

REMOVAL & REPLACEMENT
2. To disassemble all the plastic part of the docking
station subassembly, remove the four screws
(M3.5X12.7) around the remote holder.
3. Finally, to fully disassemble the docking station,
remove the plastic tape and the two screws
holding the PCB in place (M3x6). Then unclip the
USB cable from the tab holder.
From this step the docking station subassembly is fully
disassemble into every separate spare part.
Assemble the docking station
There are several points that must be respected to place
back the internal USB cable.
1. First, in order to be able to correctly insert the
remote into the docking station, the USB
connector must be placed in the remote holder
in the right direction, as shown in the figure
below.
2. Once that the USB cable is screwed back on the
remote holder and the remote holder on the
docking front top do not forget to place a rubber
tape on the USB cable in order to stick it to the
docking unit.
40
