Summary of Contents for Chattanooga 2176KIT

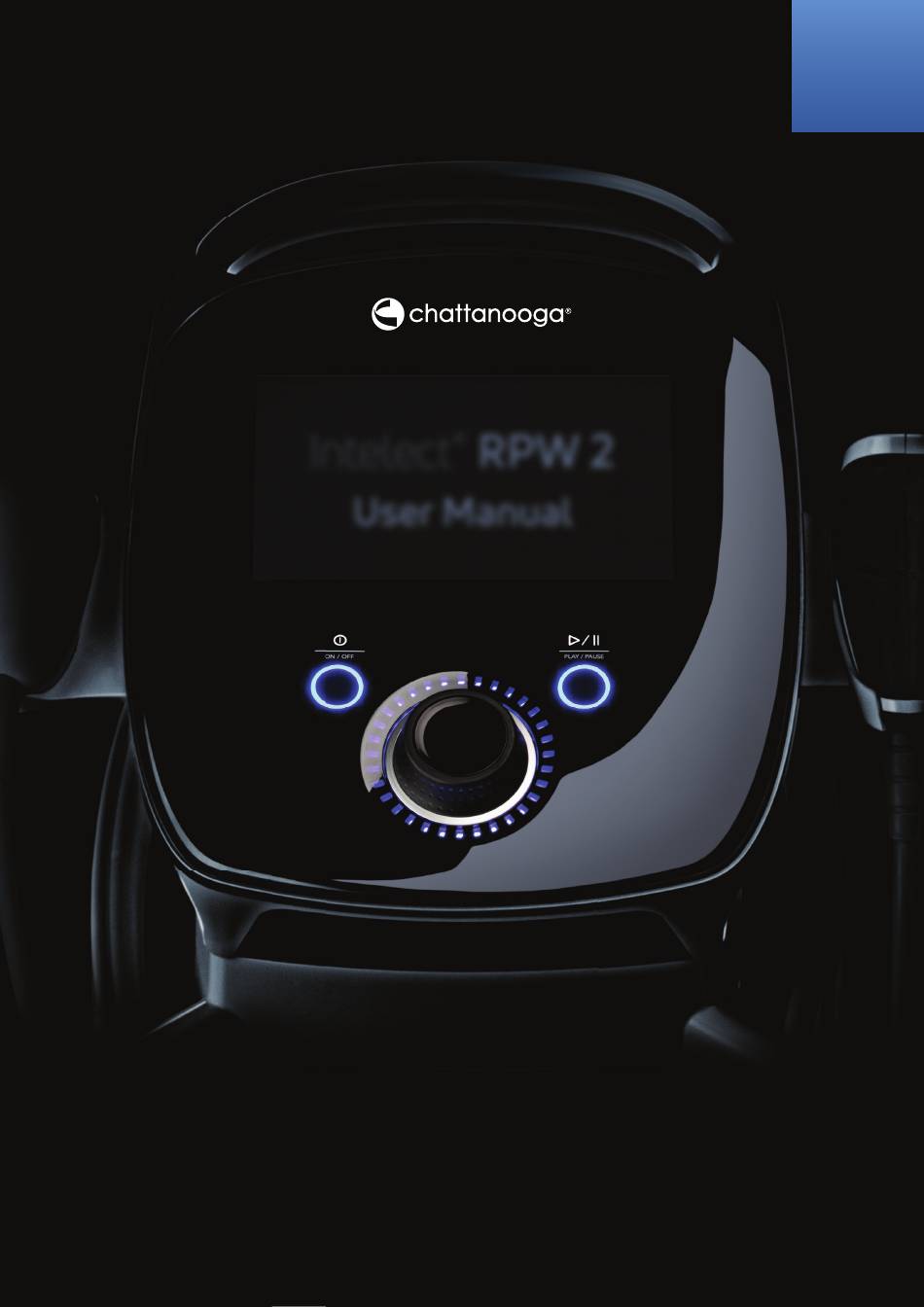

- Page 1 RPW 2 Intelect ® User Manual Operator and Installation Instructions INTELECT RADIAL PRESSURE WAVE 2 (RPW 2 ) REF 2176KIT (120V)
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION GENERAL WARNINGS AND PRECAUTIONS PRODUCT DESCRIPTION CAUTION FOREWORD WARNING INTENDED USER PROFILE DANGER INTENDED ENVIRONMENT FOR USE INTENDED USE SETUP INSTRUCTIONS PRECAUTIONARY INSTRUCTIONS UNPACKING THE DEVICE INTENDED USE AND INDICATIONS DEVICE DESCRIPTION FALCON HANDPIECE SET UP INDICATIONS FOR USE POWERING UP THE DEVICE CONTRAINDICATIONS IFU DOWNLOAD... - Page 3 CONTENTS USER INTERFACE ACCESSORIES DEVICE USER INTERFACE REPLACEMENT ACCESSORIES SCREEN DESCRIPTION OPTIONAL ACCESSORIES UNDERSTANDING YOUR BOTTOM BANNER CHANNEL STATUS POSSIBILITES V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING BAR EXPLAINED AND MAINTENANCE COMFORT MODE EXPLAINED DEVICE DESCRIPTION SETTINGS INSTALLATION INSTRUCTIONS HOME SCREEN UNPACKING TREATMENT REVIEW SCREEN SCOPE OF SUPPLY...
- Page 4 CONTENTS REPROCESSING THE HANDPIECE AND STANDARD SHOCK TRANSMITTERS SHOCK TRANSMITTERS SPINE AND FASCIAE SHOCK TRANSMITTERS V25 AND V10 CLUTCH FOR THE SPINE/FASCIAE SHOCK TRANSMITTERS TROUBLE-SHOOTING OVERHAUL ACCESSORIES AND SPARE PARTS OVERHAULING THE HANDPIECE TECHNICAL SPECIFICATIONS SERVICE & WARRANTY SYMBOLS AND LABELS WARRANTY AND SERVICE SERVICE LIFE OF THE FALCON®...
-
Page 5: Introduction
INTRODUCTION PRODUCT DESCRIPTION The Intelect® RPW 2 is a compressed air-operated ballistic shock wave generator. The shock waves in the device are generated with a precision ballistic mechanism in the handpiece. A projectile is accelerated by compressed air. The motion and weight of the projectile produce kinetic energy. -
Page 6: Foreword
INTRODUCTION FOREWORD INTENDED ENVIRONMENT FOR USE The device is intended to be operated in a clinical environment, it This guide is intended for users of Intelect RPW 2. ® can be moved from room to room. It contains general information on operation, precautionary The device is not intended to be regularly transported from one practices, and maintenance. -
Page 7: Intended Use And Indications
INTRODUCTION INTENDED USE AND INDICATIONS Achillodynia Pain due to inflammation of the Achilles tendon or the bursa The Intelect RPW 2 device is intended to be used to help: associated with it. Retropatellar Pain Syndrome • Reduce muscle pain and aches Pain in the front of, behind, and around the kneecap. -
Page 8: Contraindications
INDICATIONS FOR USE CONTRAINDICATIONS The Intelect RPW 2 should NOT be used under the following ® conditions: • Brain or spinal column in the treatment area. • On any body part during pregnancy. • Direct application over cancerous tumors or lesions due to its potential to increase blood flow to the area of malignancy. -
Page 9: Indications For Use
INDICATIONS FOR USE ADDITIONAL PRECAUTIONS ADVERSE EFFECTS When administering Radial Pressure Wave treatment, keep in Side effects could occur after a treatment with Radial Pressure mind the following: Wave therapy. The majority will appear after 1-2 days. Do not • Radial Pressure Wave treatment should be applied with repeat a treatment until the previous side effects have diminished. -
Page 10: Device Desciption
DEVICE DESCRIPTION COMPONENTS Gel Bottle Throughout these instructions the terms “left” and “right” referring to the device sides are from the perspective of a user standing in front of the device. The components of the Intelect RPW 2 are shown below. ®... -
Page 11: Ifu Download
DEVICE DESCRIPTION IFU DOWNLOAD TO STOP TREATMENT 1. To download the IFU go to the Chattanooga website www. Press Play/Pause button to pause treatment then press Stop on chattanoogarehab.com touch screen. If device is on mains power press the On/Off button on 2. -
Page 12: General Terminology
DEVICE DESCRIPTION GENERAL TERMINOLOGY The following are defiitions for the terminology used throughout this manual. Study these terms to become familiar with them for ease of system operation and control functionality of the Intelect RPW 2. ® SYSTEM SOFTWARE SYMBOLS Home Run again Back to previous screen... - Page 13 DEVICE DESCRIPTION Relative Humidity Range Atmospheric Pressure Range Testing agency Class 1 equipment Radio frequency equipment WEEE Directive conformity Shelf life Batch number No condensation allowed Read the instruction for use AC Rated supply voltage Medical Device For provision and use only at a licensed physician' s direction and under medical supervision Markings are conform to ISO7010 and ISO15-223-1"...
-
Page 14: General Warnings And
GENERAL WARNINGS AND PRECAUTIONS CAUTION • This device should be operated at 10°C to +40°C and 30% to 75% Relative Humidity (no condensation). The device should be transported and stored at -20°C to +60°C and 10% to 90% Relative Humidity (no condensation). •... -
Page 15: Warning
GENERAL WARNINGS AND PRECAUTIONS WARNING • This equipment is not designed to prevent the ingress of water or liquids. Ingress of water or liquids could cause malfunction of internal components of the system and therefore create a risk of injury to the patient. •... -
Page 16: Danger
GENERAL WARNINGS AND PRECAUTIONS DANGER • DO NOT connect the device to an electrical supply without first verifying that the power supply is the correct voltage. Incorrect voltage may cause device damage, malfunction, electrical shock, fire, or personal injury. Your device was constructed to operate only on the electrical voltage specified on the Voltage Rating and Serial Number Plate. -
Page 17: Setup Instructions
SETUP INSTRUCTIONS UNPACKING THE DEVICE 4. A pouch is provided with the device. This pouch can be attached onto the side of the device handle and can be useful for The device is generally delivered with the packaging accessories storage. material supplied by the manufacturer. -
Page 18: Device Description
SETUP INSTRUCTIONS DEVICE DESCRIPTION Handle Color Touch Screen Power Button Play / pause button V actor applicator support Rotary adjustment Falcon Hand Piece Support knob Switch ON/OFF USB Connector Transmitter Tray Holder* * Device delivered with 2 transmitters. Other transmitters displayed are optional. * V-actor applicator is optional. -
Page 19: Falcon Handpiece Set Up
SETUP INSTRUCTIONS FALCON HANDPIECE SET UP 3. Screw the shaft into the handpiece until finger-tight. Using one hand, press the handpiece firmly onto the table and tighten the 1. Unscrew the shaft from the handpiece and pull it out of the shaft using the open-end spanner. -
Page 20: Powering Up The Device
Switch device on with switch on the back of the device. IFU DOWNLOAD Make sure the mains connector remain accessible at all times 1. Go to the Chattanooga website as it can serve as an emergency switch. Turn off the main rocker www.chattanoogarehab.com switch to completely switch off the device. -
Page 21: Communications
SETUP INSTRUCTIONS COMMUNICATIONS Download and install the Windows 10 Intelect Connect App for free from chattanoogarehab.com To prepare for communication with the INTELECT RPW2 press the settings button and scroll down the screen and press the Data transfer button to begin the Bluetooth connection. 1. -
Page 22: System
SYSTEM OPERATING DATA AND RATINGS FALCON HANDPIECE TECHNICAL SPECIFICATIONS Values displayed on the device are with a tolerance of ±10% Compressed air input ......1.0 - 5.0 bar Width . -
Page 23: Patient Preparation
PATIENT PREPARATION PATIENT PREPARATION Before applying Radial Pressure Wave therapy to the patient, first prepare the patient’s skin. By properly preparing the patient’s skin for therapy, it allows more energy to reach the targeted areas and reduces the risk of skin irritation. To prepare the patient’s skin for therapy, do the following: 1. -
Page 24: Device User Interface
USER INTERFACE DEVICE USER INTERFACE Intelect RPW 2 ON/OFF button has several light indicators: ® - steady ON from device connection to the mains - Flashing while powering ON/OFF PLAY/PAUSE button blue indicator: it flashes when user can start/resume a treatment. Otherwise, steady. SCREEN DESCRIPTION 1. -
Page 25: User Interface
USER INTERFACE Each screen contains the following areas: Menu Bar Located at the top of each screen and lists the current screen name. (Black connected, Grey inactive) Settings Main area Located under the menu bar, this area displays icons unique to the current screen. 1. -
Page 26: Understanding Your Bottom Banner
USER INTERFACE UNDERSTANDING YOUR BOTTOM BANNER The home screen will tell you if the handpiece(s) is connected (available = connected; unavailable = not connected). If the handpiece is connected but the device detects an error, a message might be displayed, please see page 64 for details. The left side of the screen will tell you what transmitter you have selected with an image of the transmitter - ensure you have the proper transmitter on the end of the handpiece. -
Page 27: Channel Status Possibilites
USER INTERFACE CHANNEL STATUS POSSIBILITIES: Indicates the Indicates that handpiece is not handpiece is available for use available for use Indicates that Indicates that transmitter type transmitter type has is selected not been selected Indicates Indicates treatment is running compressor is armed Indicates that the handpiece Indicates... -
Page 28: Comfort Mode Explained
USER INTERFACE COMFORT MODE EXPLAINED In the legacy Intelect RPW this feature was called Ramp Mode. This same user friendly functionality has been applied to the Intelect RPW ® 2, but with a name change to better describe the feature itself. This patented unique feature can only be found on the Intelect RPW devices. 3 BAR NO RAMP RAMP ON... -
Page 29: Settings
USER INTERFACE SETTINGS SETTINGS The settings icon on the top right hand corner of the home screen menu bar offrs users the opportunity to set preferences and can be accessed by pressing the '' button. Swipe vertically to see more settings 1. -
Page 30: Home Screen
USER INTERFACE HOME SCREEN The Intelect RPW 2 Home screen provides access to all of the system modalities and functions. The Home screen has the following ® information: Modalities Assign or launch Shortcut Libraries « Suggested Parameter Setup » Pre-programmed protocol library Clinician protocol library Educational library: ·... -
Page 31: Treatment Review Screen
USER INTERFACE TREATMENT REVIEW SCREEN By selecting Radial Pressure Wave, Vibration Therapy, or the screen will automatically change to the ‘treatment review screen. The Intelect ® RPW 2 Treatment Review screens include the following information: Parameters 1. Touch to activate Treatment guidelines Active box surrounded by black line... - Page 32 USER INTERFACE Select transmitter INTELECT RPW 2 USER MANUAL ®...
-
Page 33: Guidelines Screen
USER INTERFACE GUIDELINES SCREEN The Guidelines provide the following information: Modality description, terms, indications and contraindications, treatment guidelines Touch image to view in full screen mode Swipe horizontally for more RADIAL PRESSURE WAVE OPERATION Complete the following steps to begin treatment: 1. - Page 34 USER INTERFACE 3. SET UP TREATMENT On the treatment review screen - you can adjust treatment parameters to desired level. Note: Never start with pressure adjustment – first adjust all other parameters and set Bar just before starting treatment Parameters 1.
- Page 35 USER INTERFACE 5. START TREATMENT WITH COMFORT MODE "ON" Press the start/pause button The compressor is arming for a few seconds then when the message "armed" is displayed, the treatment can start by triggering the handpiece. The button on the top of the handpiece is the trigger button, also called the start/stop button. INTELECT RPW 2 USER MANUAL ®...
- Page 36 USER INTERFACE 6. TREATMENT RUNNING When the treatment starts with Comfort mode "ON" the bar will increase progressively starting at 1/10 of the set value. The actual value is displayed on the Comfort mode progression bar. When the patient states that the treatment feels uncomfortable or painful, the therapist pauses the treatment by triggering the handpiece. The therapist has 2 options : 1.
- Page 37 USER INTERFACE 7. PAUSE TREATMENT Pausing treatment will automatically display stop treatment on the Treatment Review screen. The treatment can be paused by pressing the PAUSE buttons located on the device. The treatment can also be paused by pressing the button located on the handpiece.
- Page 38 USER INTERFACE 8. STOP TREATMENT If handpiece is active and projectile is moving: Pause the treatment first, then the handpiece becomes inactive. Then by selecting Stop treatment, the treatment will end and treatment summery displayed. 9. SINGLE SHOT MODE The Falcon D-Actor has the ability to do single shots. This can be done by selecting Frequency and turning the dial to the left so that the Hz is displayed as “—“.
- Page 39 USER INTERFACE 10. TREATMENT SUMMARY When treatment has completed, the Treatment Summary screen will appear with the following options: • Repeat the treatment by pressing the Run again box. • Save button » the treatment protocol as a Custom Protocols •...
-
Page 40: Sps (Suggested Parameter Setup)
USER INTERFACE SPS (SUGGESTED PARAMETER SETUP) The Intelect RPW 2 has a Suggested Parameter Setup (SPS) icon that is a series of protocol presets where the body area, clinical ® indication, pathological condition and severity are selected by the user, and the suggested algorithm will select the parameter settings. All settings can be edited to suit appropriate patient treatment prescription and patient comfort. - Page 41 USER INTERFACE 3. Select INDICATION Select Pressure Wave 4. Select SPECIFICATION Select Pain Zone treatment INTELECT RPW 2 USER MANUAL ®...
- Page 42 USER INTERFACE 5. SELECT MODALITY Select Radial Pressure Wave 6. SET UP TREATMENT On the treatment review screen the suggested treatment settings are displayed and you can adjust parameters to desired level. Parameters 1. Touch to activate 2. Adjust with Adjustment dial: •...
- Page 43 USER INTERFACE 7. START TREATMENT Press the START button Treatment Running INTELECT RPW 2 USER MANUAL ®...
-
Page 44: Treatment Data
USER INTERFACE TREATMENT DATA After a treatment has been completed, Treatment data can be saved on the Intelect RPW 2 for later use on the device. ® SAVE TREATMENT DATA Click on Assign To button. Treatment data can be assigned to a folder at any time of the treatment (set up, running or completed) but data will only be saved once the treatment is fiished and channel is free for next treatment (after pressing EXIT button on Treatment Summary screen) Open Pain scale to record post-treatment pain... - Page 45 USER INTERFACE The TREATMENT DATA screen appears Save treatment data to an existing ID folder or create and save to a new ID folder Create & save to new ID Select & save to existing ID SAVE TREATMENT DATA TO A NEW ID: Enter ID and Save INTELECT RPW 2 USER MANUAL...
- Page 46 USER INTERFACE VIEW AND MANAGE TREATMENT DATA Press the TREATMENT DATA ICON on the home screen 1. VIEW Treatment Data Select Treatment Data INTELECT RPW 2 USER MANUAL ®...
- Page 47 USER INTERFACE The TREATMENT HISTORY is displayed including all previously saved treatment sessions ranked chronologically 28/07/2020 11:18 Select session to view 28/07/2020 11:18 Treatment Summary for that session. 28/07/2020 11:18 28/07/2020 11:18 Session details are displayed INTELECT RPW 2 USER MANUAL ®...
- Page 48 USER INTERFACE 2. DELETE Treatment Data Delete all IDs Delete one ID INTELECT RPW 2 USER MANUAL ®...
- Page 49 USER INTERFACE Delete all treatment sessions Delete one session INTELECT RPW 2 USER MANUAL ®...
-
Page 50: Custom Protocols
USER INTERFACE CUSTOM PROTOCOLS The Intelect RPW 2 allows for a maximum of 25 custom protocols to be defined. ® SAVE A CUSTOMIZED PROTOCOL A new custom protocol may be saved at either the Treatment Review or Treatment Summary screen. 1. - Page 51 USER INTERFACE CREATE NEW CUSTOM PROTOCOL: Enter Custom Protocol Name and Save PLANTAR FASCIITIS INTELECT RPW 2 USER MANUAL ®...
- Page 52 USER INTERFACE VIEW AND MANAGE CUSTOM PROTOCOLS Touch the CUSTOM PROTOCOLS icon on the Home Screen 1. VIEW Custom Protocol Select desired Custom Protocol INTELECT RPW 2 USER MANUAL ®...
- Page 53 USER INTERFACE The TREATMENT REVIEW SCREEN is displayed showing the protocol settings. Start treatment or perform other actions. 2. DELETE custom protocol Delete all protocols INTELECT RPW 2 USER MANUAL ®...
- Page 54 USER INTERFACE Delete individual protocol INTELECT RPW 2 USER MANUAL ®...
-
Page 55: Shortcuts
USER INTERFACE SHORTCUTS Intelect RPW 2 allows for 12 custom protocol shortcut assignments on the home screen. ® ASSIGN SHORTCUT Complete the following steps to assign a home screen shortcut unassigned. Short cut icons appear grey in color for a customized protocol: Press one of the unassigned “Shortcut”... - Page 56 USER INTERFACE Shortcut assigned on home screen Once assigned the shortcut icon becomes the colour and icon associated with the modality it contains INTELECT RPW 2 USER MANUAL ®...
-
Page 57: Unassign Shortcut
USER INTERFACE UNASSIGN SHORTCUT Complete the following steps to unassign a Home screen shortcut for a customized protocol: From the Home screen, press and hold the shortcut icon you wish to unassign. The device will display a text box asking, “Remove “My Custom Protocol 1” shortcut?” Select Cancel to quit the unassignment process and return to the Home screen or “Confim”... -
Page 58: Clinical Resources
USER INTERFACE CLINICAL RESOURCES The Intelect RPW 2 contains a unique Clinical Resources Library. ® The anatomical and pathological image library are designed to aid the operator in visually understanding and locating specific muscle groups and commonly found problems associated with pathological conditions, as well as providing an educational tool for the clinician to use with the patient. - Page 59 USER INTERFACE 2. Touch the body part for which you wish to view information. Choose either anterior (on left of screen) or posterior (on right of screen). 3. The available images for the selected body part are displayed. Touch the image you want to see in full screen mode. INTELECT RPW 2 USER MANUAL ®...
- Page 60 USER INTERFACE 4. Full screen image Close full screen mode INTELECT RPW 2 USER MANUAL ®...
-
Page 61: Modality Descriptions
USER INTERFACE MODALITY DESCRIPTIONS Complete the following steps to view the Radial Pressure Wave and Vibration therapy descriptions: 1. Select one of the modality description 2. The modality description is displayed PRINT SCREEN FUNCTION The Intelect RPW 2 device has a built in function allowing the user to print screen for example to print a treatment session this performed ®... -
Page 62: Troubleshooting Codes
TROUBLESHOOTING TROUBLESHOOTING CODES 1. All system messages, warning messages and fault messages that are generated by the device are self-explanatory excepting system error. 2. If System error occurs, note error code and contact DJO selling dealer or DJO Service Department 3. -
Page 63: Accessories
ACCESSORIES ACCESSORIES REPLACEMENT ACCESSORIES The following tables provide users of the Intelect RPW 2 the necessary information to order replacement accessories used with the ® system. This list of replacement accessories is designed for use with the Intelect RPW 2 . When ordering, provide the respective part ®... -
Page 64: Optional Accessories
ACCESSORIES OPTIONAL ACCESSORIES Model Number Description 29104 Revision Kit Short 28739 Guiding tube cleaning brush 31800 9 Transmitter Set In Case, Accessory 29801 A6 Point, Transmitter 29802 T10 Finger, Transmitter 29729 C15, 15 mm Cerama-X Transmitter, Black 29728 DI15, 15 mm, Deep Impact Transmitter, Black 29726 F15 Focus-Lens 15 mm Transmitter 29724... -
Page 65: V-Actor Hf Handpiece
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE ® DEVICE DESCRIPTION INSTALLATION INSTRUCTIONS The V-ACTOR HF is a “vibration therapy” handpiece and can ® be used as an optional accessory with the Intelect RPW 2. -
Page 66: Connecting The Handpiece
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE CONNECTING THE HANDPIECE The Intelect RPW 2 has a connector for the V-ACTOR HF ® ® handpiece and a designated handpiece holder on the left hand side of the device. To connect your V-Actor HF, please find the connectors on the front of the device. -
Page 67: Operation
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE OPERATION The handpiece is operated via the display on the Intelect RPW 2. The settings can either be made manually on the display or ® preprogrammed settings can be applied. At tenti o n! Malfunction of the device or its components is possible! Before starting treatment, it is essential to perform the FUNCTIONAL CHECKS described below. - Page 68 V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE The chart shown here displays the relationship between pressure and frequency when using the V-Actor HF with the Intelect RPW 2. ® Pressure (Bar) Frequency (Hz) INTELECT RPW 2 USER MANUAL ®...
-
Page 69: Treatment
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE TREATMENT SAFETY INFORMATION Before using the device, the user must make sure it is functioning safely and in proper condition. Each time the device is transported, subsequently make sure that all functional checks have been performed on the device before you start treatment. -
Page 70: Cleaning, Maintenance, Overhaul
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE CLEANING, MAINTENANCE, OVERHAUL • To remove the V40 vibration transmitter, unscrew the vibration transmitter from the handpiece. • Unscrew the vibration transmitter screw cap (1 and 5) and pull out the shock transmitter. CHANGING THE VIBRATION TRANSMITTERS •... -
Page 71: Handpiece
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE HANDPIECE Cau t io n! Cleaning agents and disinfectants may generate an explosive atmosphere. Disconnect the handpiece from the control device before starting any cleaning or maintenance work. At tenti on! It is essential that no fluid be permitted to penetrate either the device or its tubing. •... -
Page 72: Reprocessing The Handpiece And
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE REPROCESSING THE HANDPIECE AND VIBRATION TRANSMITTERS After each use, the parts of the handpiece that come into contact with the patient must be cleaned and disinfected thoroughly before they are used again. The instructions must be strictly observed in order to prevent damage to the parts and malfunctions. -
Page 73: Trouble-Shooting
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE TROUBLE-SHOOTING Fault description Possible cause Corrective actions Check the cable and tube connections and replace them, if No compressed air supply Leaks in handpiece cable or cable not properly connected necessary No power output Handpiece defective Replace the handpiece ACCESSORIES AND SPARE PARTS... -
Page 74: Symbols And Labels
V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE SYMBOLS AND LABELS Label Meaning You must read the operating manual! WARRANTY AND SERVICE WARRANTY FOR THE V-ACTOR HF HANDPIECE ® The V-ACTOR HF handpiece is a wear part. We will replace new handpieces that have performed up to 1 million pulses at no charge to the ®... -
Page 75: Device Maintenance
2. Remove the lid of the water reservoir carefully and dispose of the waste water. IFU DOWNLOAD 1. Go to the Chattanooga website To reattach the reservoir www.chattanoogarehab.com 1. Replace the reservoir lid and insert the water tube into the 2. -
Page 76: Instructions For Software Upgrade
Please note that you must use the USB provided with the device for this procedure. 1. Erase the USB drive supplied with the Intelect RPW 2. 2. Go to the Chattanooga website www.chattanoogarehab.com 3. Go to Intelect RPW 2 product page 4. -
Page 77: Falcon Handpiece Cleaning
FALCON HANDPIECE CLEANING, MAINTENANCE; OVERHAUL FALCON HANDPIECE CLEANING, MAINTENANCE; OVERHAUL ® CLEANING Regular cleaning ensures perfect hygiene and operation of the Falcon handpiece. The handpiece, in particular the shock transmitter, must ® be thoroughly cleaned and disinfected after each therapy session. Caut i o n! Flammable and volatile cleaning and disinfecting agents may generate an explosive atmosphere. -
Page 78: Standard Shock Transmitters
CLEANING, MAINTENANCE, OVERHAUL STANDARD SHOCK TRANSMITTERS 5. Screw the shock transmitter screw cap onto the handpiece until finger-tight. 1. Disconnect the handpiece from the control device. 2. Unscrew the shock transmitter screw cap from the handpiece. 6. After replacing the shock transmitter, make sure that the handpiece cap and the cap parts are screwed firmly in place. -
Page 79: Spine And Fasciae Shock Transmitters
CLEANING, MAINTENANCE, OVERHAUL SPINE AND FASCIAE SHOCK TRANSMITTERS 4. Push the inner part of the clutch in direction to the shaft of the handpiece (1). 1. Disconnect the handpiece from the control device. • Push the shock transmitter into the clutch (2). The spine or fasciae transmitter set contents a special clutch for mounting the spine or fasciae transmitters. -
Page 80: Cleaning The Handpiece
CLEANING, MAINTENANCE, OVERHAUL CLEANING THE HANDPIECE 4. Unscrew the shaft from the handpiece and pull it out of the handpiece handle (5). Note: After cleaning, the handpiece must be dry before it can be • Use the supplied open-end spanner (4) for this purpose. reassembled. -
Page 81: Cleaning The Shock Transmitters
CLEANING, MAINTENANCE, OVERHAUL CLEANING THE SHOCK TRANSMITTERS Note: The shock transmitter insert of two-part transmitter caps can only be dismantled and the sealing rings can only be removed using special tools. You should avoid doing this because it could result in damage to the shock transmitter. -
Page 82: Spine And Fasciae Shock Transmitters
CLEANING, MAINTENANCE, OVERHAUL SPINE AND FASCIAE SHOCK TRANSMITTERS • After shockwave application for humans an ultrasonic bath of our shockwave transmitters can have an • Remove the applicator from the handpiece and additional cleaning effect. However, an ultrasonic bath is disconnect it from the coupling. -
Page 83: Overhaul
CLEANING, MAINTENANCE, OVERHAUL OVERHAUL Shockwaves are generated mechanically. Due to the effects of friction, the handpiece components are continuously exposed to mechanical stress, which will cause minor wear. Note: The Falcon handpiece should be overhauled about every 1,000,000 shocks. This can be done by the user of the device. All that is required is the overhaul kit, which includes all required wear parts. - Page 84 CLEANING, MAINTENANCE, OVERHAUL 1. Disconnect the handpiece from the control device. 3. Pull the tightly fitting guide tube out of the shaft. If necessary, use a thin metal rod or the supplied hexagonal spanner as a • Unscrew the shock transmitter screw cap respectively pulling tool by inserting it through the openings in the guide tube.
- Page 85 CLEANING, MAINTENANCE, OVERHAUL B15, T10 shock transmitters and the sealing ring on the shaft. Note: The shock transmitter insert of two-part transmitter caps can only be dismantled and the sealing rings can only be removed using special tools. You should avoid doing this because it could result in damage to the shock transmitter.
- Page 86 CLEANING, MAINTENANCE, OVERHAUL O - RING GUIDE Part No. Measurements Used For Ref No. O-Ring (1:1) D1 = 11.0 mm 15090 Ro40, T10, F15, C15 D2 = 3.0 mm D1 = 12.0 mm 13411 DI15, T10 D2 = 2.5 mm D1 = 14.5 mm 28140 C15, DI15...
- Page 87 CLEANING, MAINTENANCE, OVERHAUL 10. Insert the guide tube into the opening in the shaft by pressing 13. Screw the transmitter screw cap with the required in until the stop. transmitter firmly back onto the shaft. • For two-part transmitter caps: Make sure that the two cap parts IMPORTANT: Make sure that the end of the guide tube where the are screwed firmly in place and that the transmitter screw cap is two air slots are located is in the direction of the handpiece handle.
-
Page 88: Service & Warranty
SERVICE AND WARRANTY Transmitters, guiding tube, projectile, transmitters and SERVICE & WARRANTY o-rings are consumables, they are designed for 1 million shocks expected life. SERVICE LIFE OF THE FALCON HANDPIECE ® Ultrasound gel has a shelf life that is lower than the life The Falcon handpiece should be overhauled after around every expectancy of the device, handpieces, and other accessories. -
Page 89: Warranty
SERVICE AND WARRANTY WARRANTY COMPANY SHALL NOT BE LIABLE IN ANY EVENT FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Attention Modifications to the device or handpiece are not permitted. This warranty gives you specific legal rights and you may also Any unauthorized opening, repair or modification of the device have other rights which vary from location to location. -
Page 90: Appendix
APPENDIX ELECTROMAGNETIC COMPATIBILITY (EMC) Medical electrical equipment requires special precautions regarding EMC and must be installed and operated according to The Intelect RPW 2 has been tested and found to comply with ® these instructions. It is possible that the electromagnetic compatibility (EMC) limits for medical devices high levels of radiated or conducted radio-frequency to IEC 60601-1-2. - Page 91 APPENDIX ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES The product designation Intelect RPW 2 used in the text below includes all their variants. ® The Intelect RPW 2 device is subject to particular precautions regarding electromagnetic compatibility (EMC). The device must be installed and put into service strictly in compliance with the EMC directives set forth in the accompanying documents.
- Page 92 APPENDIX ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES (CONTINUED) 12.1 Electromagnetic emissions: Guidance and Manufacturer’s Declaration – Electromagnetic Emissions Intelect RPW 2 is intended for use in the electromagnetic environment specified below. It is the responsibility of the customer or user to ensure that the Intelect RPW 2 device is used in such an environment.
- Page 93 APPENDIX ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES (CONTINUED) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity Intelect RPW 2 is intended for use in the electromagnetic environment specified below. It is the responsibility of the customer or user to ensure ® that the Intelect RPW 2 device is used in such an environment. Immunity Test IEC 60601 Test Level Compliance Level...
- Page 94 APPENDIX ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES (CONTINUED) 12.3 RF (Radio Frequency) Interference EMC disturbance can affect the performance of the Intelect RPW 2. To prevent the user from unacceptable risks the device runs ® performance checks regularly during operation. This is what happens, if a problem is identified: −...
- Page 95 NOTES INTELECT RPW 2 USER MANUAL ®...
- Page 96 DJO France SAS Centre Européen de Frêt 3 rue de Bethar 64990 Mouguerre • France T: + 33 (0) 5 59 52 86 90 • F: + 33 (0) 5 59 52 86 91 DJOglobal.com DJO, LLC | 5919 Sea Otter Place | Suite 200 | Carlsbad CA | 92010 | U.S.A. www.chattanoogarehab.com Copyright ©...
