ERROR CODES

FIRMWARE

The firmware contains error codes that can detect the root location of a malfunction. These data are less useful for the
troubleshooting service. However, if one of these errors is encountered, the error code targets the unit that can be replaced
or serviced (remote / module). To see the last error code, switch off the remote control. Then press and maintain the two
channel keys in the middle (keys #2 and #3) and press the On/Off button.
Code Description / Comment
0xEA63 Mi-scan error: seems to occur more on channel 3 & 4. Corrected bug since the 0105 module version.
0x00D2 Seems particular out of range. handling of topstim from Remote control when out of range + start/stop
0x5002 Stimulation was in pause state instead of stop
Remote control cannot connect with the module. Missing feedback from the Rfnode master in the given
0x4902
timeout value
0x4905 Remote freed command state machine, but command state machine not ready
0x00C8 Module hardware failure not detected during self tests, probably due to hardware failure
A pause was sent, but a stimulation module did not send its status to the remote in the correct timing.
0x4782
This might be an out of range side-effect
0x0115 ERROR_SC2_IStimNotCompensated
0x00CE This might be an out of range side-effect
Pulse duration too long, more than 4.5ms between trigger-pulse and end-of-pulse. Check what's
0x0113
happening when stop is received exactly during pulse
0x5006 Mostly probably missing one of the 32bits frame when load program to flash memory
V_CMD not relative to PWM output. Check what's happening when stop or emergency stop is received
0x00D0
exactly during pulse
0x0116 ERROR_SC8_IStimOverAbsoluteMax. Over current
0x480B RF chip is not working at 100%. RF communication is ok, but no topstim is generated
Check if this error could have been raised before buy. If not, hide the Menu RD. (1 month elapsed
0x47E0 between error and first program done. Did the error occur during prod, and associated to the matching
user?)
Not enough time given to dc power to generate HV before trigger pulse was called. Remove this error,
0x025A
simply stop HV generation
Wrong menu ID. The function asserting this error is called with flash-based value. It's near not possible
0x2001
that this value to be the one stored in record

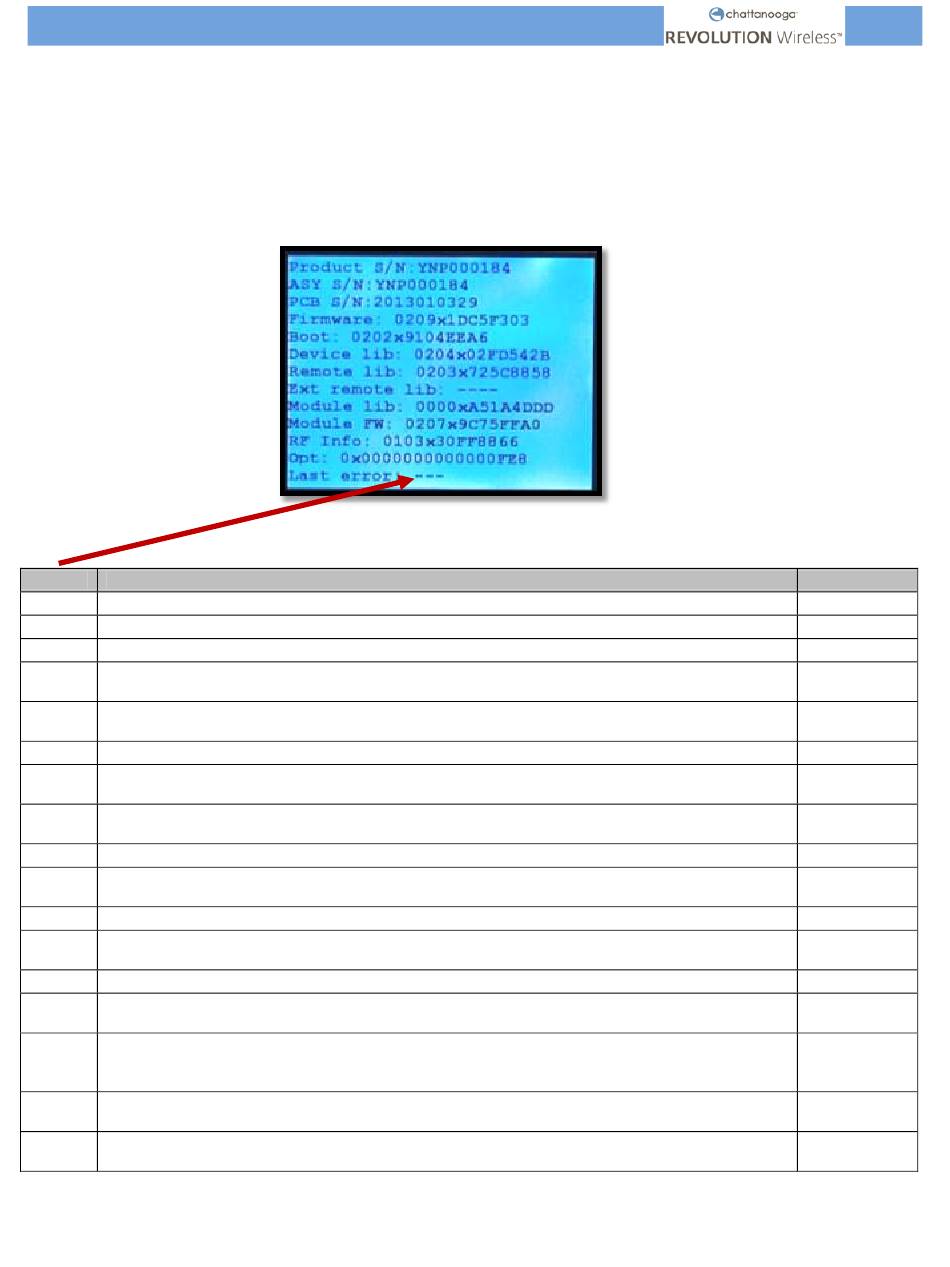

Figure 10 : Error code screen
Note: Final accessories may differ from the picture
37
Part to change
Module FW
-
Remote
Remote FW
Remote
Control
Module HW
-
Module (80/20
FW vs HW)
-
Module FW
Module (80/20
FW vs HW)
-
Remote
(FW/HW)
Remote FW
Module FW
Remote FW
