Exerpeutic 4200 Owner's Manual

Exerpeutic 4200 Owner's Manual

Training cycle
Hide thumbs
Table of Contents

Advertisement

Quick Links

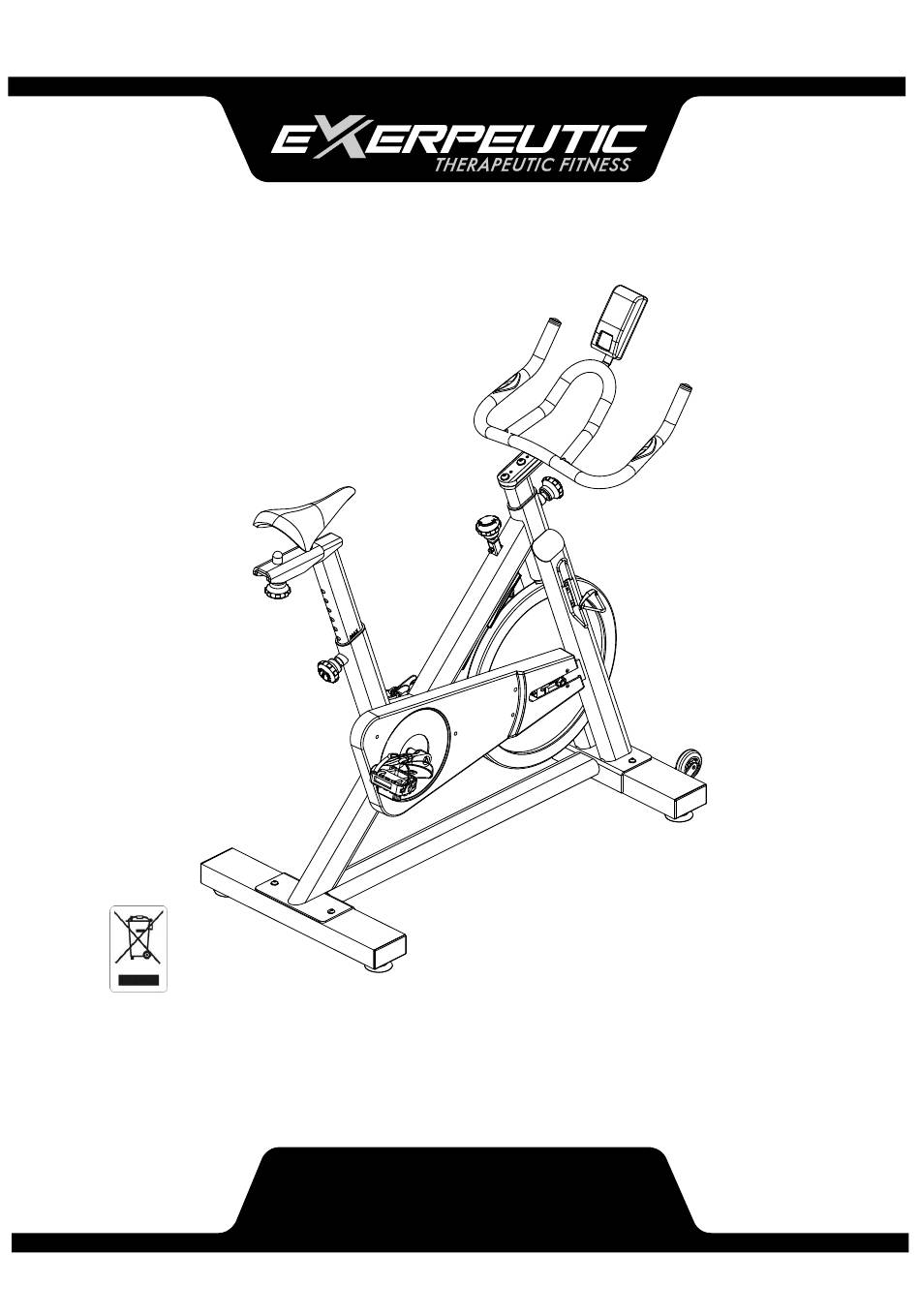

TRAINING CYCLE
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
The specifications of this product may vary from this photo, subject to
change without notice.
OWNER'S MANUAL
Item #4200
V1.0-061114

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exerpeutic 4200

Summary of Contents for Exerpeutic 4200

  • Page 1 TRAINING CYCLE IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. OWNER’S MANUAL Item #4200 V1.0-061114...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SERVICE ------------------------------------------------------------------------ 2 LABEL PLACEMENT --------------------------------------------------------- 3 PRODUCT SAFETY ---------------------------------------------------------- 4 OVERVIEW DRAWING ------------------------------------------------------ 5 PARTS LIST --------------------------------------------------------------------- 6 HARDWARE PACKING LIST & TOOLS --------------------------------- 7 ASSEMBLY --------------------------------------------------------------------- 8 ADJUSTMENTS ---------------------------------------------------------------- 13 COMPUTER ---------------------------------------------------------------- TROUBLE SHOOTING & MAINTENANCE ----------------------------- 20 WARM UP ----------------------------------------------------------------------- 21 WARRANTY -------------------------------------------------------------------- 22 FAX FORM ---------------------------------------------------------------------- 23...

  • Page 3: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-844-641-7921 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number...

  • Page 4: Label Placement

    LABEL PLACEMENT...

  • Page 5: Product Safety

    PRODUCT SAFETY Basic precautions should always be followed, including the following safety instructions when using this equipment. Read all instructions before using this equipment. 1. Read all the instructions in this manual and do warm up exercises before using this equipment. 2.

  • Page 6: Overview Drawing

    OVERVIEW DRAWING...

  • Page 7: Parts List

    PARTS LIST Description Qty No. Description Seat 1 021 Water Bottle Holder Seat Bracket 1 022 Handlebar Post Seat Post 1 023 Handlebar Hexagon Socket Pan Head Cap Round Knob M10*22*Φ19*35 1 024 Screw M10*25*S6 Oval Bushing 2 025 Flat Washer d10*φ20*1.5 PT80*40*PT70*30*L175 Hexagon Cylinder Cap Bolt 006L/R Left/Right Foot Pedal 9/16”...

  • Page 8: Hardware Packing List & Tools

    HARDWARE PACKING LIST & TOOLS (10) Flat Washer (9) Hexagon Socket Pan Head Cap Bolt 4PCS 4PCS (20)Flat Washer (19) Cross Recessed Pan Head Screw 2PCS 2PCS (24) Hexagon Socket Pan Head Cap Screw (25) Flat Washer 2 PCS 2PCS Multi Hex Tool with Phillips Allen Wrench S6 Screwdriver...

  • Page 9: Assembly

    ASSEMBLY 1. Front and Rear Stabilizers Installation Position the Front Stabilizer (15) in front of the Main Frame (39) and align bolt holes. Attach the Front Stabilizer (15) onto the front curve of the Main Frame (39) with two Hexagon Socket Pan Head Cap Bolt (9), two Flat Washer (10). Tighten Hexagon Socket Pan Head Cap Bolt(9)with the Allen Wrench(30) S6 Provided.
  • Page 10 ASSEMBLY Tool: Important: Please make sure the right foot pedal matches up with the right crank and the left foot pedal matches up with the left Multi Hex Tool with Phillips Screwdriver crank. If reversed the cranks may become damaged or stripped. Important: Screw Right Foot Pedal (6R) into right crank clockwise!
  • Page 11 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1. Seat Post, Seat, Seat Sliding Tube, and Handlebar Post Installation Seat Post Installation Turn the Round Knob (8) on the Main Frame (39) in a counterclockwise direction until it can be pulled out. Pull out the Round Knob (8) and then insert the Seat Post (3) into the tube of the Main Frame (39).
  • Page 12 ASSEMBLY Tool: Allen Wrench S6 Multi Hex Tool with Phillips Screwdriver S13, S14, S15 1.Handlebar Post Installation Turn the Round Knob (8) on the Main Frame (39) in a counterclockwise direction until it can be pulled out. Pull out the Round Knob (8) and then insert the Handlebar Post (22) into the tube of the Main Frame (39).
  • Page 13 ASSEMBLY Hardware: (24) Hexagon Socket Pan Head Cap Screw 2PCS (38) Phillips Pan Head Cap Screw 4PCS (25)Washer 2PCS...

  • Page 14: Adjustments

    ADJUSTMENTS Rear Stabilizer End Cap Adjusting the Adjustable Leveler Turn the Adjustable Leveler on the front and rear stabilizers as needed to level the bike. → Brake Knob Adjusting the Brake Knob To increase the tension, turn the Brake Knob in a clockwise direction. To decrease the tension, turn the Brake Knob in a counterclockwise direction.
  • Page 15 ADJUSTMENTS Round Knob Adjusting the Handlebar Height Loosen the Round Knob by turning counterclockwise direction until it can be pulled out. Pull out the Round Knob and then slide the Handlebar Post up or down direction to the suitable position. Lock the Handlebar Post in place by releasing the Round Knob and sliding the Handlebar Post up or down slightly until the Round Knob "pops"...
  • Page 16 ADJUSTMENTS Round Knob Adjusting the Seat Forward or Back Loosen the Round Knob by turning it in a counterclockwise direction. Slide the Seat Sliding Tube in a forward direction to the suitable position. Lock the Seat Sliding Tube in place by turning it in a clockwise direction.

  • Page 17: Computer

    COMPUTER MODE To confirm all settings. To set up the value of TIME, DISTANCE, CALORIES and PULSE. You can hold the button to increase the value fast. (The computer has to be in stop condition.) RESET To clear the set-up value. Press RESET key and hold for 2 seconds to reset all function figures.
  • Page 18 COMPUTER OPERATION PROCEDURE: 1. Installs 2 pcs of 1.5V “AAA” batteries, then the screen will display as following “Drawing A” and have “Beep” sound at the same time. After that, it goes to the next step to the main menu as “Drawing B”. 2.
  • Page 19 COMPUTER 5. You can also press “MODE” button to select single function display except RPM & SPEED function. The RPM & SPEED function will switch display. 6. RECOVERY： (1)When the user presses “RECOVERY” button, the RECOVERY function is active. At this time only PULSE and TIME is working, other functions will not be displayed, and the Sensor Input is not available.
  • Page 20 COMPUTER (3)If the count down action to 0:00 is not completed and there is no pulse signal, the count down action has to be done and shown F6. (4)If you press the RECOVERY button prior to count down to 0:00, it will be end and return to the main menu.

  • Page 21: Trouble Shooting & Maintenance

    TROUBLE SHOOTING & MAINTENANCE TROUBLE SHOOTING PROBLEM: The training bike wobbles when in use. SOLUTION: Turn the rear stabilizer end cap on the rear stabilizer as needed to level the bike. PROBLEM: The training bike makes a squeaking noise when in use. SOLUTION: The bolts may be loose on the training bike.

  • Page 22: Warm Up

    WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.

  • Page 23: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has be installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 24: Fax Form

    FAX FORM Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________...
