Summary of Contents for Exerpeutic EXERWORK 2000i

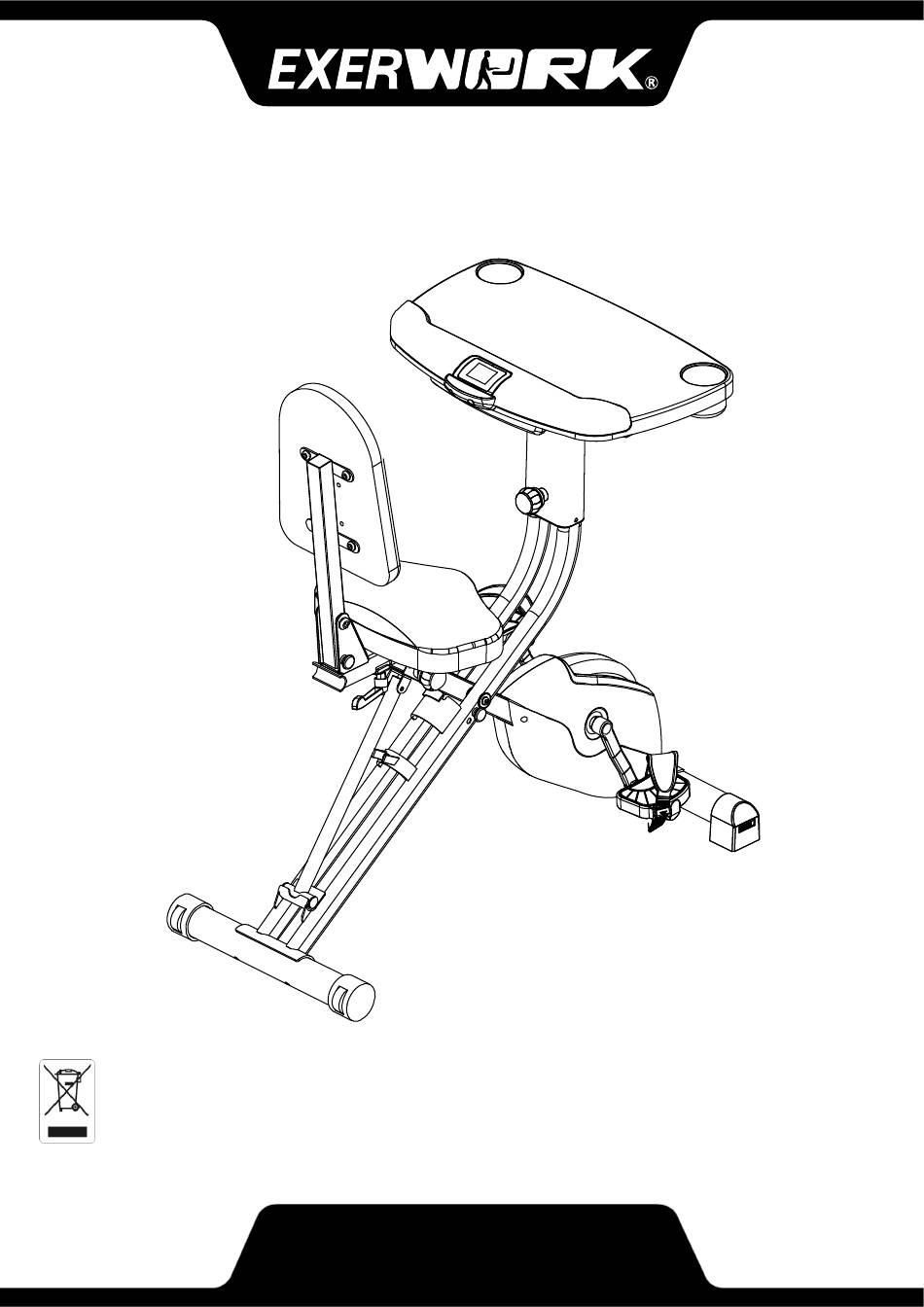

- Page 1 Desk Bike IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. OWNER’S MANUAL 7151.5 -111620...
- Page 2 STOP ARRÊT ALTO PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. Automatically set up an Email to CUSTOMER SERVICE by SCANNING this QR code with the Camera or a QR code scanner APP on your smart device. See the Service Page for other methods of contacting Customer Support.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SERVICE ..........................2 LABEL PLACEMENT ......................3 IMPORTANT SAFETY GUIDELINES ................. 4 OVERVIEW DRAWING ...................... 6 PARTS LIST ........................7 HARDWARE & TOOLS PACK ................... 9 ASSEMBLY ........................11 CONSOLE ........................19 OPERATIONS & ADJUSTMENTS ................... 21 STORAGE ........................ -
Page 4: Service
SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department using one of the below methods: Scan the QR code with the camera or any QR code scanner app on your smart device. -
Page 5: Label Placement
LABEL PLACEMENT... -
Page 6: Important Safety Guidelines
IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety guidelines when using this desk bike. Read all of the guidelines before using this desk bike. Before exercising and to avoid injuring your muscles, it is highly recommended to perform warm-up exercises for each muscle group. - Page 7 IMPORTANT SAFETY GUIDELINES Consult your personal physician before using this equipment if you have any of the following conditions or ailments: Pregnancy Extreme obesity Middle ear infection Hiatus hernia or Ventral hernia Glaucoma, retinal detachment or conjunctivitis ...
-
Page 8: Overview Drawing
OVERVIEW DRAWING... -
Page 9: Parts List
PARTS LIST Description Description Rear Frame Flywheel Ø195 Front Frame Belt Wheel with Crank Axle Ø155 Rear Stabilizer Bearing Bracket Seat Bracket Wave Washer Seat Bearing 6003RS Left Pedal C-ring Ø17 7-1 Left Pedal Strap Belt Wheel with Crank Axle Ø150 Right Pedal Bearing 6000z 8-1 Right Pedal Strap... - Page 10 PARTS LIST No. Description Description 76 Hexagon Socket Bolt M8x43L 102 Spring Washer Ø8.2 77 Handlebar End Cap Ø25.4 103 Hexagon Socket Bolt M8x25 Front Frame Support Tube End Cap 104 Carriage Bolt M8x75L Ø22.2 79 Hexagon Socket Bolt M8x58 105 Screw M5x10 80 Nut M6 106 Adaptor Wire...
-
Page 11: Hardware & Tools Pack
HARDWARE & TOOLS PACK... - Page 12 THIS PAGE IS INTENTIONALLY BLANK...
-
Page 13: Assembly
ASSEMBLY TOOL 13-15mm Wrench STEP 1 1A. Setting Up the Frames Pull apart the Front Frame (2) and the Rear Frame (1). Rest the Rear Frame Support Tube (67) into the hooked plate on the Rear Frame (1). Align the pin holes where the Front Frame (2) and Rear Frame (1) intersect and insert the Safety Pin (22) into the aligned holes. - Page 14 ASSEMBLY IMPORTANT: Make sure the right pedal matches up with the right crank and the left pedal matches up with the left crank. If matched incorrectly, the cranks may become damaged or stripped. IMPORTANT: Screw the Right Pedal (8) into the Right Crank (24) in a CLOCKWISE direction.
- Page 15 ASSEMBLY STEP 3 3A. Installing the Seat Post Insert the Seat Post (10) into the Front Frame (2). Tighten the Seat Post (10) with the Seat Adjustment Knob (14). TOOLS 5mm Allen Wrench With Phillips Screwdriver 1 PC STEP 4 4A.
- Page 16 ASSEMBLY TOOLS 5mm Allen Wrench With Phillips Screwdriver 1 PC 13-15mm Wrench 1 PC STEP 5 5A. Installing the Seat Bracket to the Seat Post Place the Seat Bracket (5) into the top slot of the Seat Post (10). Insert one Socket Hexagon Bolt (79) through the hole located on the side of the Seat Bracket (5) and Seat Post (10).
- Page 17 ASSEMBLY TOOLS 5mm Allen Wrench With Phillips Screwdriver 1 PC 17-19 mm Wrench 1 PC STEP 6 6A. Installing the Backrest Attach the Backrest (49) onto the Backrest Frame (9) with four Hexagon Socket Bolts (58), four Spring Washers (102), and four Flat Washers (33). Tighten the Hexagon Socket Bolts (58) with the 5mm Allen Wrench with Phillips Screwdriver provided.
- Page 18 ASSEMBLY STEP 7 7A. Installing the Desk Mount Attach the Desk (88) to the Desk Mount (87) with one Plastic Bushing (92), one Hexagon Socket Bolt (97), one Flat Washer (114), one Flat Washer (33), and one Nylon Nut (34). Simultaneously tighten the Hexagon Socket Bolt (97) and Nylon Nut (34) with the 5mm Allen Wrench with Phillips Screwdriver and 13-15mm Wrench provided.
- Page 19 ASSEMBLY...

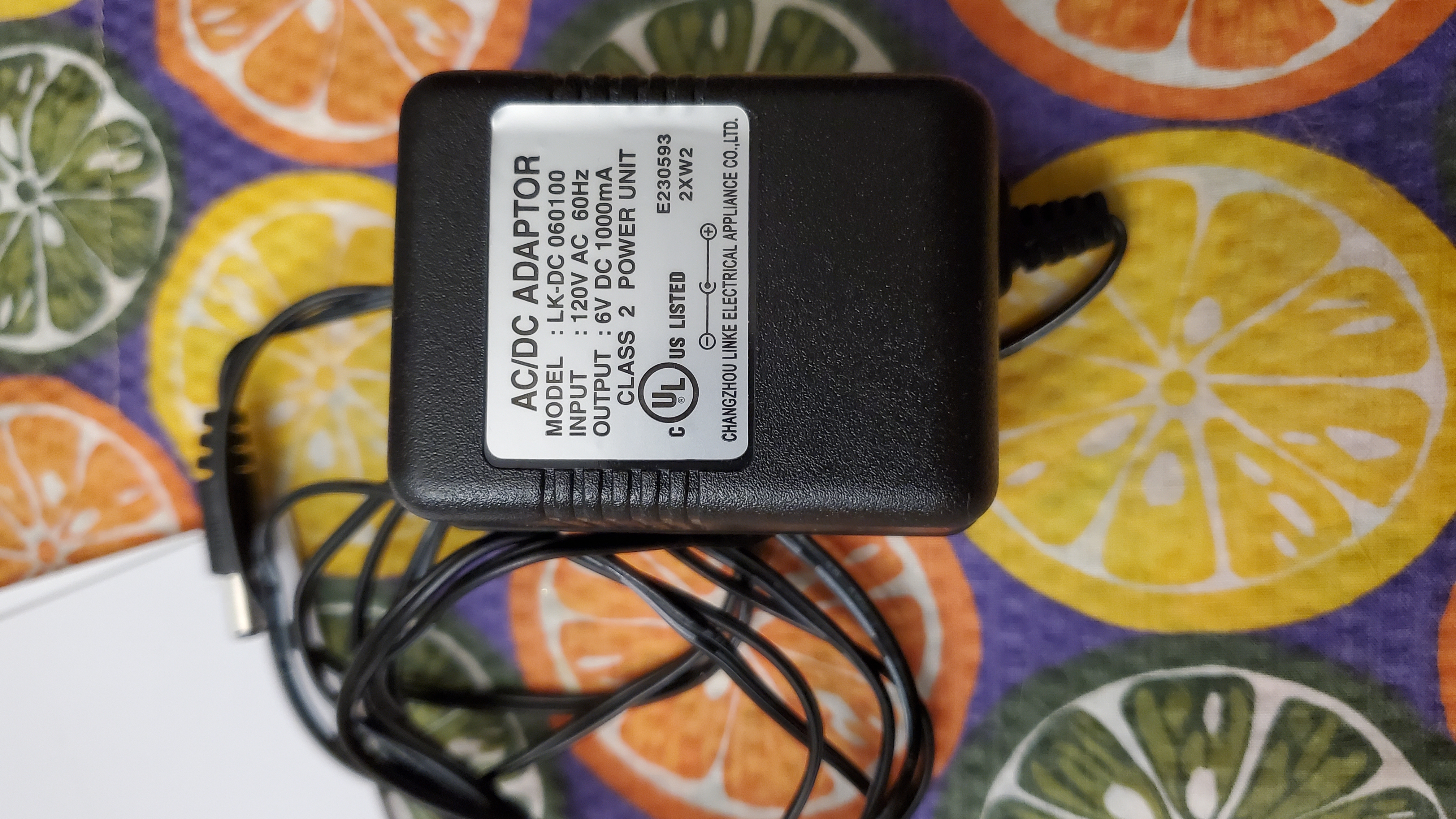

- Page 20 ASSEMBLY STEP 8 8A. Power Adaptor Installation Insert the small end of the AC Adaptor (98) into the Adaptor Wire (106) at the underside of the Left Cover (18). Plug in the AC Adaptor (98) into an electrical outlet.
-
Page 21: Console
CONSOLE SPECIFICATIONS: TIME --------------------------------------- 0:00-99:59 MIN:SEC SPEED ------------------------------------ 0.0-999.9 MPH DISTANCE ------------------------------- 0.0-999.9 M (miles) CALORIE --------------------------------- 0.0-999.9 CAL ODOMETER ----------------------------- 0.0-999.9 M (miles) LEVEL ---------------------------------- -- 0-24 REVOLUTIONS PER MINUTE ----- 0.0-999 RPM CONSOLE BUTTONS: START/STOP: Pressing this at the main screen will start a QUICKSTART workout. ... - Page 22 CONSOLE WORKOUT PROGRAM LIST: these images represent the changes in resistance level during each program.
-
Page 23: Operations & Adjustments
OPERATIONS & ADJUSTMENTS ADJUSTING THE SEAT HEIGHT (SEE FIG. F) Loosen the Seat Adjustment Knob (14) and pull to release the Seat Post (10). Slide the Seat Post (10) to the desired height. The tip of the Seat Adjustment Knob (14) should POP into one of the holes on the Seat Post (10). - Page 24 OPERATIONS & ADJUSTMENTS ADJUSTING THE DESK HEIGHT ADJUSTING THE DESK RANGE 1. Loosen the Long Adjustment Knob (119) 1. Loosen the Desk Slide Knob (95) by by turning it COUNTER-CLOCKWISE. turning it COUNTER-CLOCKWISE. 2. Pull the Desk Height Knob (119) to 2.
-
Page 25: Storage
STORAGE For your convenience, the bike can be folded up for storage when NOT in use. 1. Adjust the Desk (88) height to the lowest position. 2. Adjust the Desk (88) angle up to the 33 Degree position. 3. Slide the Desk (88) to the furthest forward position. 4. -
Page 26: Transportation
TRANSPORTATION TRANSPORTING THE BIKE 1. Hold onto the Desk (88) and tilt the bike back onto to the wheels of the Rear Stabilizer End Caps (11). 2. Carefully move the bike to the desired location. 3. Gently lower the bike until the Front Stabilizer End Caps (73) touch the floor. -
Page 27: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING MAINTENANCE Cleaning The bike can be cleaned with a soft cloth and a mild detergent. Do not use abrasives or solvents on the plastic parts. Be sure to wipe your perspiration off the bike after each use. Be careful to not get excessive moisture on the console display panel as this may cause an electrical hazard or the electronics to fail. -
Page 28: Warranty
WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. -
Page 29: Parts Request Form
PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:______________________________________________________________________ ADDRESS:__________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:________________________ TELEPHONE: (Day)_______________________________________________________ (Night)______________________________________________________ SERIAL#:____________________________________________________________________ MODEL#:____________________________________________________________________ PURCHASE DATE:____________________________________________________________ PLACE OF PURCHASE:_______________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” *This form can also be faxed to #: 626-810-2166...
