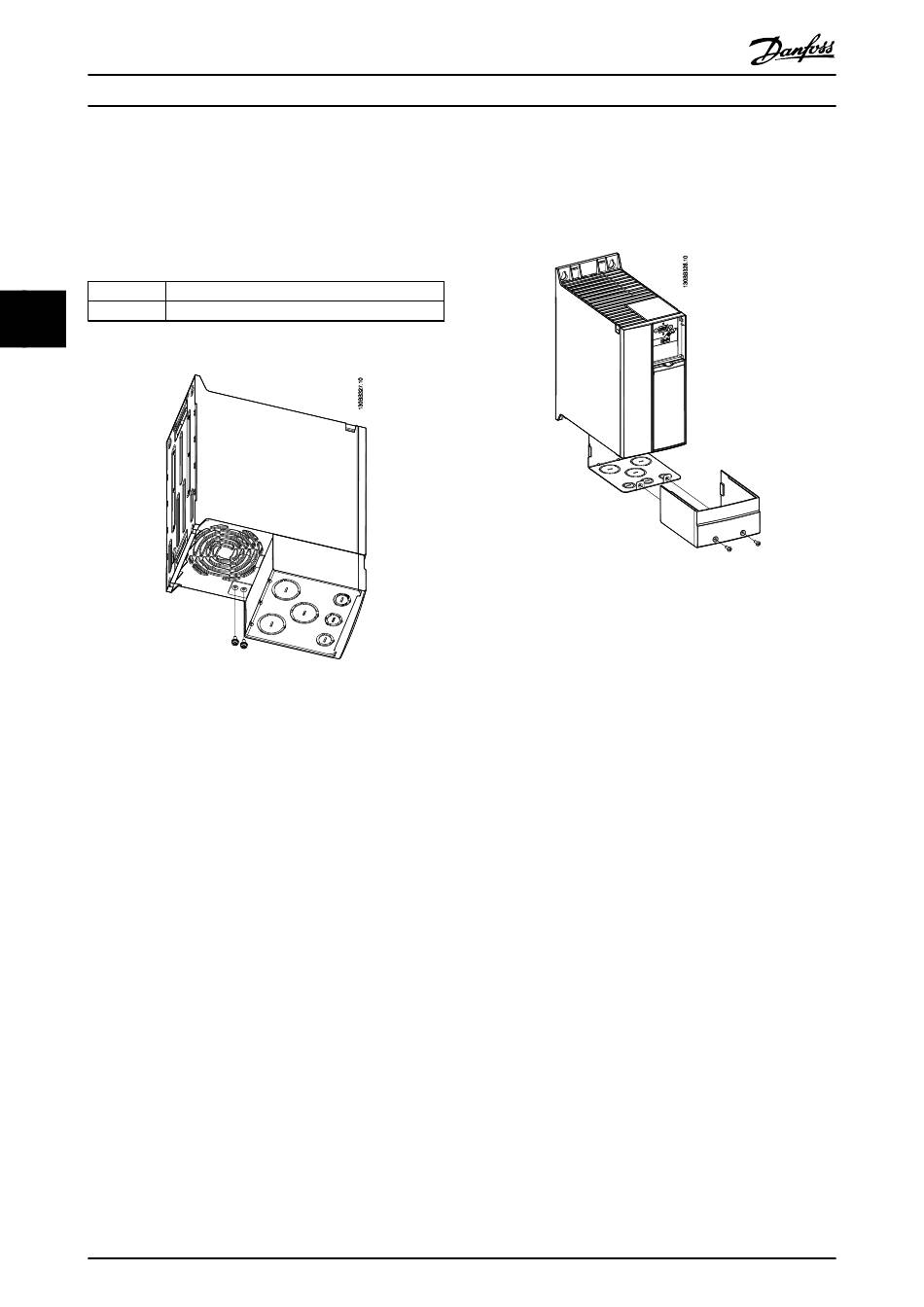

4.1.8 FC 51 Type 1 Kit Mounting Instruction for M4 and M5
Step 1
Mount metal plate on frequency converter and tighten the
screws. Tightening torque: 2 Nm.
M4
3x½"
4
4
M5
3x1"
Table 4.6 Conduit Sizes
Illustration 4.12
32
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
®
VLT
Micro Drive FC 51 Design Guide
Step 2
Fit bottom cover on frequency converter and tighten
screw.
Illustration 4.13
®
MG02K202 - VLT
is a registered Danfoss trademark
