4.1.13 FC 51 DIN Rail Kit Mounting
Instruction

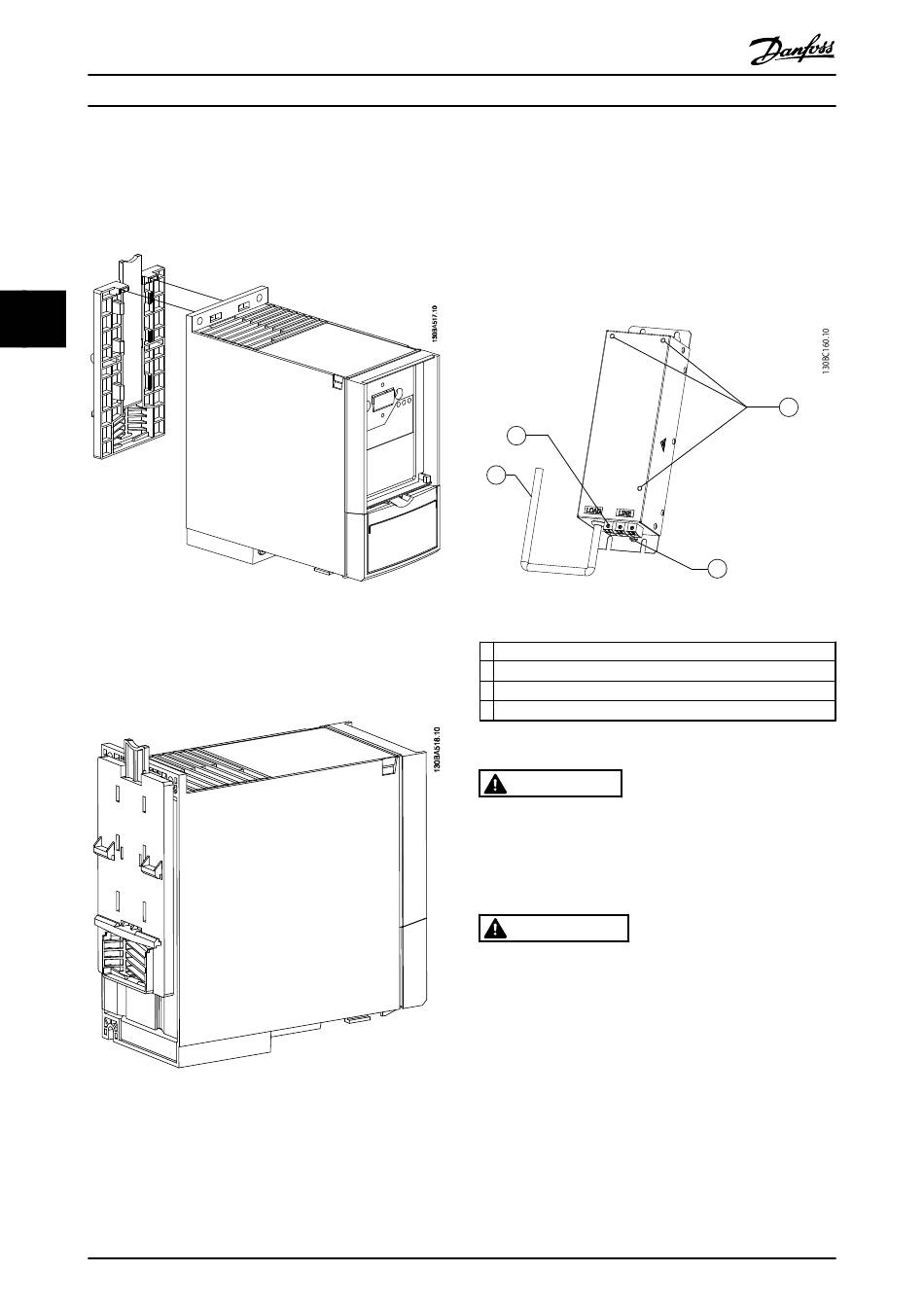

Step 1
Mount plastic part on frequency converter.
4 4
Illustration 4.28
Step 2
Fit frequency converter on DIN rail (Din Rail kit is only for
M1 and M2).
Illustration 4.29
38
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
®
VLT Micro Drive FC 51 Design Guide
4.1.14 Line Filter MCC 107 Installation
Line Filters of the type MCC 107 combine a harmonic filter
and an EMC filter. The line filters improve performance of
the line current to the VLT
different Line Filter frame sizes correspond to the M1, M2
and M3 Micro Drives.
3
Illustration 4.30 Line Filter MCC 107 with Micro Drive FC 51
1 Mounting holes for frequency converter
2 Input terminal
3 Output line
4 Protective earth (PE)
Table 4.7
CAUTION
Hot surfaces
Risk of high surface temperatures.
•
WARNING
High voltage
Risk of electric shock.
•
NOTE
•
®
MG02K202 - VLT is a registered Danfoss trademark
Instructions
®
Micro Drive FC 51. The three
2
Do NOT touch the Line Filter during operation or
wear protective gloves
Never carry out maintenance work on the Line
Filter during operation. Wait at least 4 minutes
after the equipment has been disconnected from
the frequency converter before touching any
potentially live parts.
Never repair a defective filter
1
4
