VLT Micro Drive Selection
®
4 VLT
Micro Drive Selection

4.1 Options and Accessories

4.1.1 Local Control Panel (LCP)

For detailed information on programming, see
4 4
Programming Guide MG02C.
NOTE
The frequency converter can also be programmed from a
PC via RS-485 com-port by installing the MCT 10 Set-up
Software.
This software can either be ordered using code number
130B1000 or downloaded from the DanfossWeb site: /
BusinessAreas/DrivesSolutions/software-download

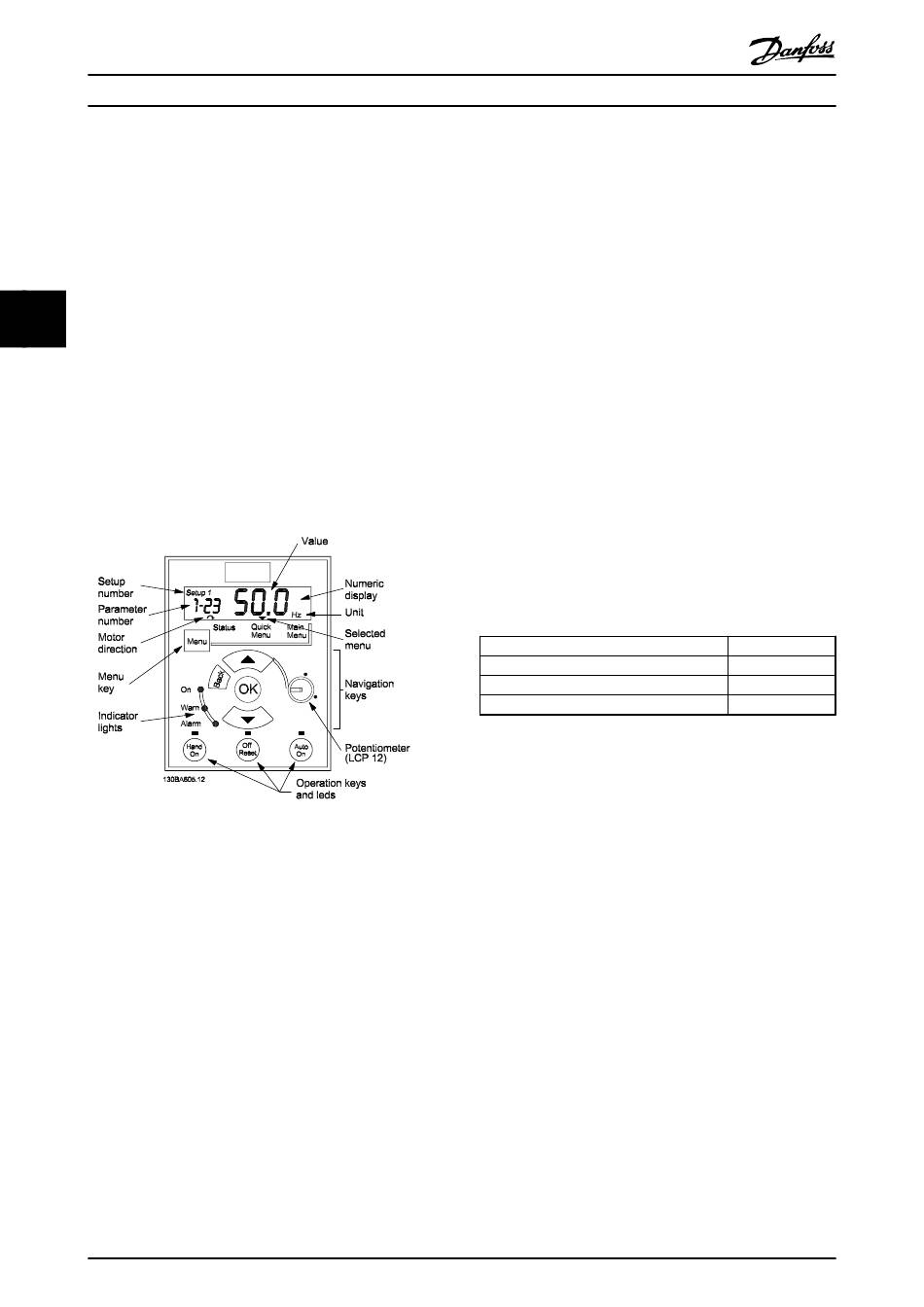

Illustration 4.1 Description of LCP Buttons and Display
Use the [Menu] key to select one of the following menus:
Status:
For readouts only.
Quick Menu:
For access to Quick Menus 1 and 2, respectively.
Main Menu:
For access to all parameters.
Navigation Keys:
[Back]: For moving to the previous step or layer in the
navigation structure.
▲ ▼
Arrows [ ] [ ]: For maneuvering between parameter
groups, parameters and within parameters.
[Ok]: For selecting a parameter and for accepting changes
to parameter settings.
26
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
®
VLT Micro Drive FC 51 Design Guide
Operation Keys:
A yellow light above the operation keys indicates the
active key.
[Hand on]: Starts the motor and enables control of the
frequency converter via the LCP.
[Off/Reset]: Stops the motor (off). If in alarm mode the
alarm will be reset.
[Auto on]: The frequency converter is controlled either via
control terminals or serial communication.
[Potentiometer] (LCP 12): The potentiometer works in two
ways depending on the mode in which the frequency
converter is running.
In Auto Mode the potentiometer acts as an extra
programmable analog input.
In Hand on Mode the potentiometer controls local
reference.
The LCP can be moved to the front of a cabinet by using
the remote build-in kit. The enclosure is the IP55.
Enclosure
Max. cable length between and unit:
Communication std:
Ordering no.
Table 4.1 Technical Data
®
MG02K202 - VLT is a registered Danfoss trademark
IP55 front
3 m
RS-485
132B0102
