FITTING THE TABLE EXTENSION

Parts needed for this step
8 x Allen screws
6 x Allen screws
8 x Small Washers
6 x Large Washers
8 x Hexagonal nuts
14 x Spring washers

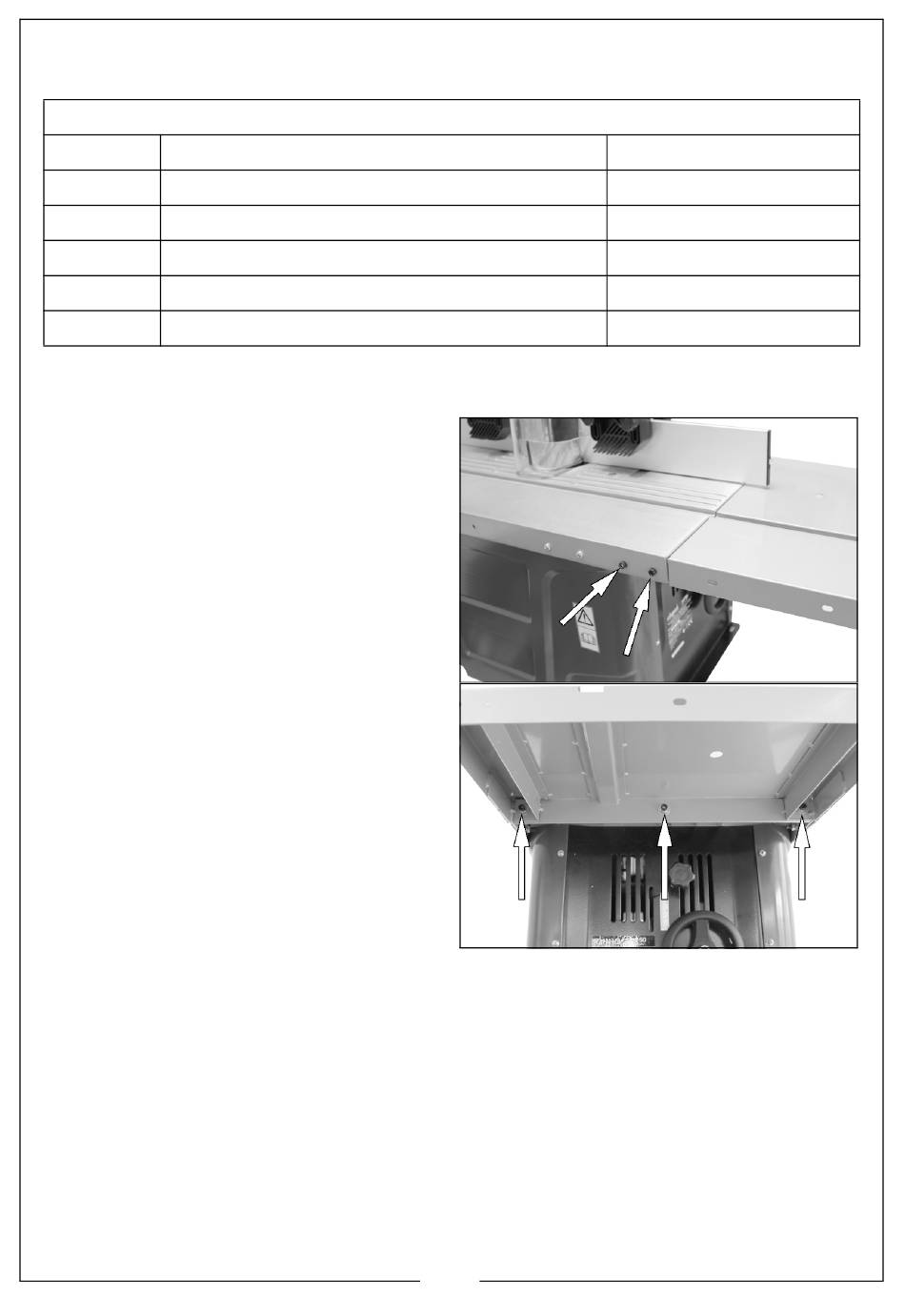

1. Attach the extension table to
both sides with 4 allen screws M5 x
20, 4 washers, 4 spring washers
and 4 hexagonal nuts M5.
• Make sure that the channel on
top of the extension table lines
up with the main table.
2. Also secure from below using 3
allen screws M5 x 12, 3 large
washers and 3 spring washers
each.
3. Align the table and tighten all
screws.
4. Repeat for the other table
extension.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
16
M5 x 20
M5 x 12
5mm
5mm
M5
5mm
