ASSEMBLY
WARNING: BEFORE CARRYING OUT ANY ADJUSTMENT OR
MAINTENANCE, MAKE SURE THAT THE MACHINE IS DISCONNECTED FROM
THE MAINS SUPPLY.

MOUNTING THE MACHINE

It is recommended to fix the machine to a work bench using the four holes
provided.
1. Holes must be drilled in the workbench which align with those on the
machine base.
2. Each corner must be secured to the workbench using nuts and bolts long
enough to go through the workbench (not supplied).
3. The workbench must be large enough to prevent tilting of the shaper when
working.

THE MOULDING FENCE

The moulding fence has been shipped in the carton disassembled.
Before starting work, it must be assembled and fitted onto the working table.

FITTING THE SLIDING BRACKET ONTO THE FENCE

Parts needed for this step
1 x Sliding bracket
1 x Carriage bolt
1 x Plastic cap nut
1 x Washer

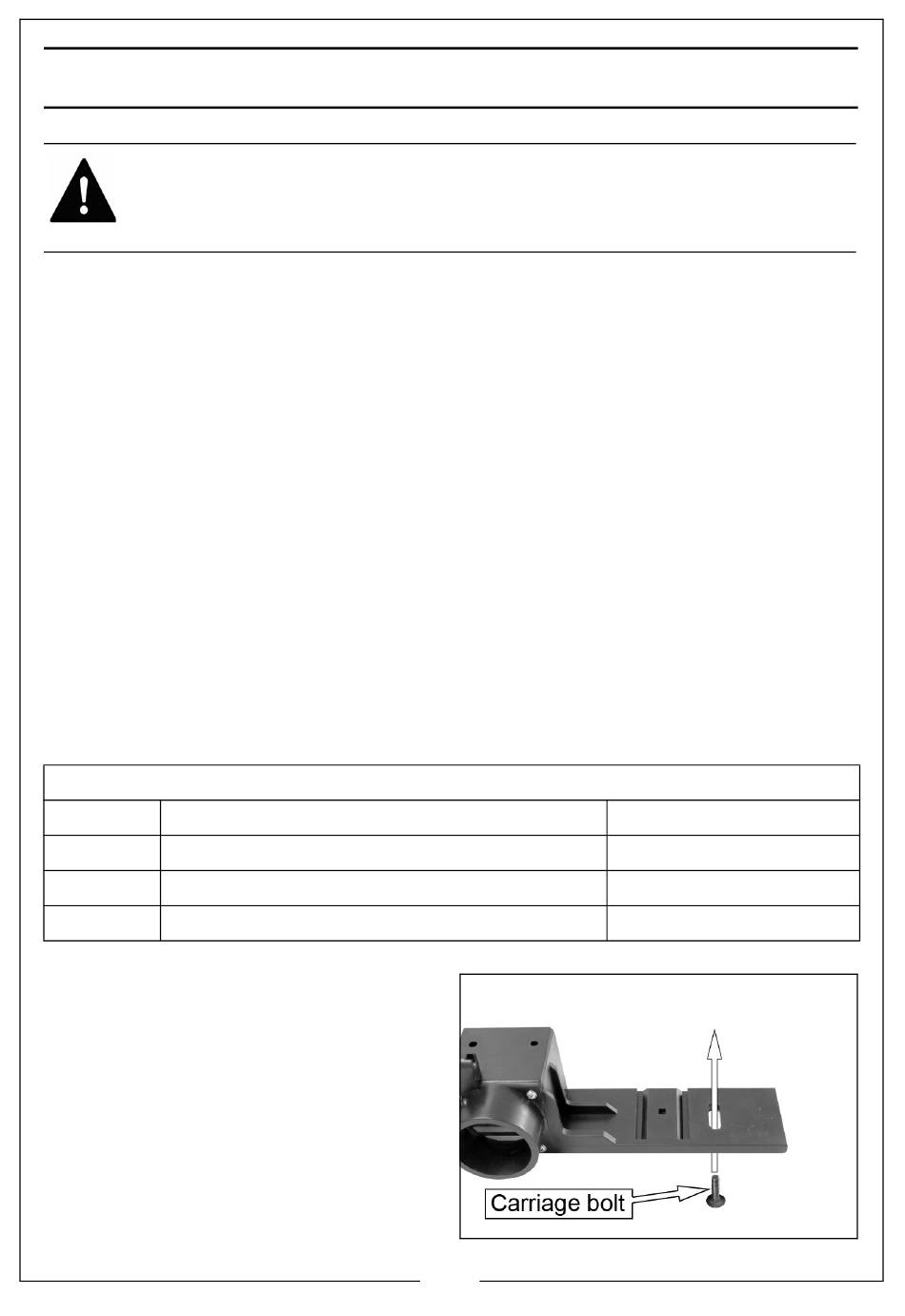

1. Insert the carriage bolt into the
fence from below as shown.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
10
M6 x 25
M6
6mm
