Fitting The Fence Plates - Clarke CBTSR Operation & Maintenance Instructions Manual

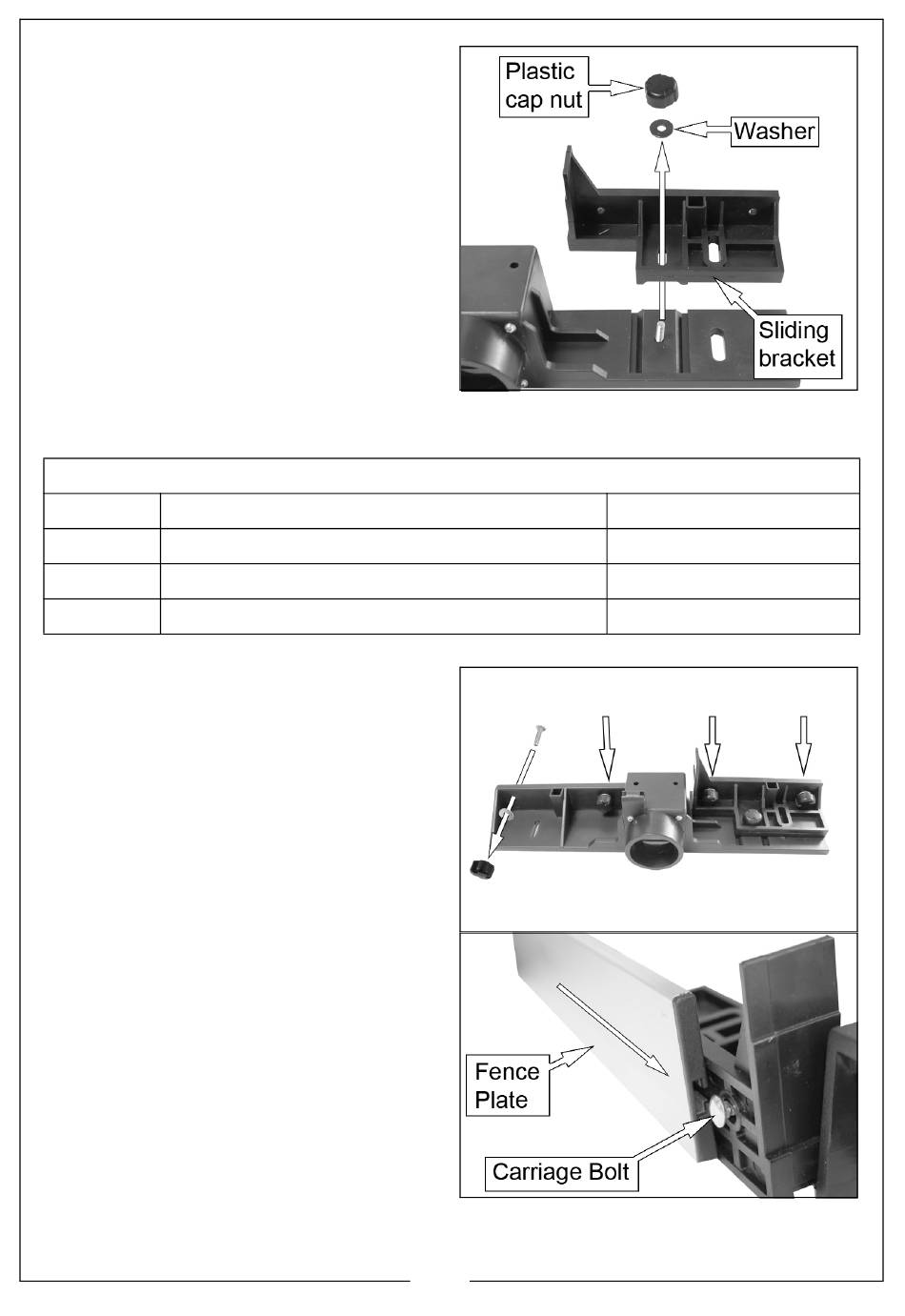

2. Drop the sliding bracket over the
bolt so that it sits in the grooves on
the fence.
3. Secure in place using the washer
and plastic cap nut.

FITTING THE FENCE PLATES

Parts needed for this step
4 x Carriage bolt
4 x Plastic cap nut
4 x Washers
2 x Fence plates
1. Insert the 4 carriage bolts into the
attachment holes and screw
them on finger tight with a washer
and a plastic cap nut.
2. Slide the fence plates over the
carriage bolt heads.
• Make sure that the fence
plates are at the same height.
3. Tighten the plastic cap nut to lock
the fence plates in position.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
11
M6 x 25
M6
6mm
