- Page 1 ELECTRIC DRILL BIT SHARPENER MODEL NO: CBS20 PART NO: 6480231 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL0822...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Electric Drill Bit Sharpener. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Product Overview

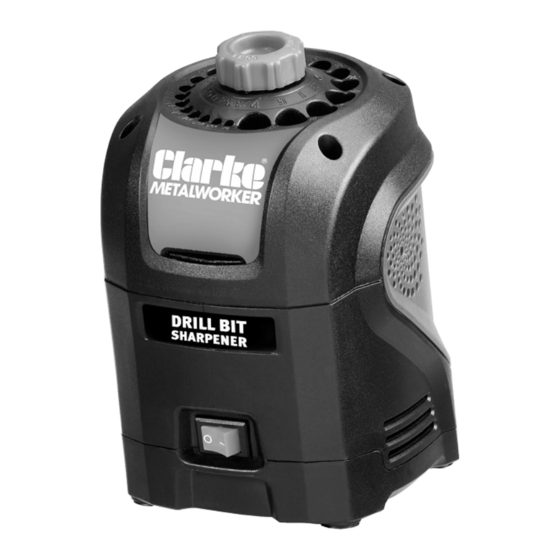

PRODUCT OVERVIEW DESCRIPTION Grinding Stone Height Adjustment Knob Head Assembly On/Off Switch Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: Safety Symbols
SAFETY SYMBOLS Read instruction Wear Eye Protection manual before use Class 2 Double Indoor Use Only Insulated ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling &... - Page 5 4. STORE IDLE EQUIPMENT. When not in use, tools should be locked up in a dry location to inhibit rust. Always lock up tools and keep out of reach of children. 5. DO NOT FORCE THE TOOL. It will do the job better and more safely at the rate for which it was intended.
- Page 6 TOOL SPECIFIC SAFETY RULES 1. Make sure that flammable materials or materials that may explode are kept out of the immediate vicinity. 2. DO NOT overload the tool. Only use the device for its intended purpose. 3. Make sure you are positioned firmly and with a natural stance when working with the tool.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 8 OPERATIONS BEFORE EACH USE What Check the power cable and plug for Conduct a visual inspection and damage have the cable replaced by an electrician if necessary. Check the grinding stone Visual check, Change the grinding stone if necessary (see page 10). Cleaning the device Wipe the unit with a damp cloth.
- Page 9 WARNING: THIS SHARPENER SHOULD ONLY BE USED TO SHARPEN HSS DRILL BITS. CARBIDE, COBALT AND TITANIUM DRILL BITS SHOULD NOT BE SHARPENED USING THIS TOOL. 1. Place sharpener on a flat, sturdy surface and plug in. 2. Put a single drill bit (HSS only) into the appropriate hole (3mm - 12mm). 3.
-
Page 10: Maintenance And Troubleshooting
MAINTENANCE & TROUBLESHOOTING CHANGING THE GRINDING STONE 1. Make sure that the sharpener is switched off and disconnected from the mains power supply. 2. Remove the four screws that hold the head assembly in place and remove the head assembly. 3. -
Page 11: Troubleshooting
NOTE: Replacement grinding stones can be purchased via the CLARKE International Parts & Service department (see bottom of page). CLEANING 1. Keep the surface of your sharpener free of grit, dirt, and grease. Use a damp soapy cloth or non-toxic solvents and regular wipe down the grinding stone assembly. -
Page 12: Parts List And Diagram
PARTS LIST AND DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Specification
Description Description Adjustment Knob Screw, M3 x 5 Screw, ST4.2 x 14 Junction Plate Head Assembly Right Side Motor Casing Cap Ring Gear Screw, ST2.9 x 8 Motor Adjustment Cylinder Lower Motor Housing Washer Power Cable Grinding Stone On/Off Switch Wheel Base Tension Disc Spring... - Page 14 DECLARATION OF CONFORMITY - UKCA Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 15: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
