FITTING THE DOWNWARD PRESSURE BAR

Parts needed for this step
1 x Mounting Bracket
2 x Bolt
2 x Nut
4 x Washers
1 x Pressure Bar
2 x Carriage Bolts
2 x Wingnuts

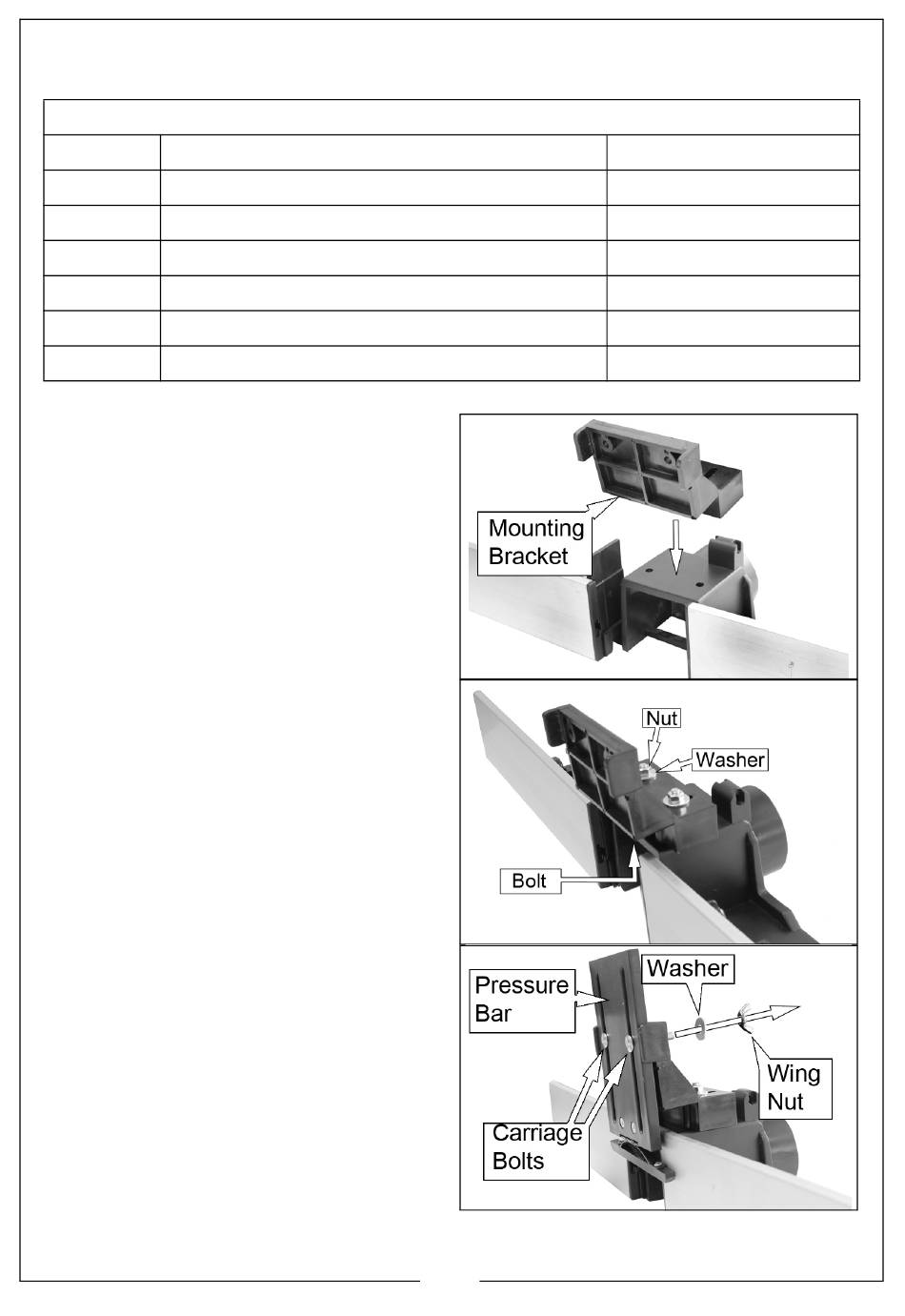

1. Fit the mounting bracket to the
central part of the main fence as
shown.
2. Secure in place using 2 x M6 x 40
bolts (from below), 2 washers and
2 x M6 nuts supplied.
3. Position the pressure bar and lock
in position using the 2 carriage
bolts, 2 washers and 2 wing nuts
provided.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
12
M6 x 40
M6
6mm
M6 x 35
M6
