Summary of Contents for Clarke CBS16

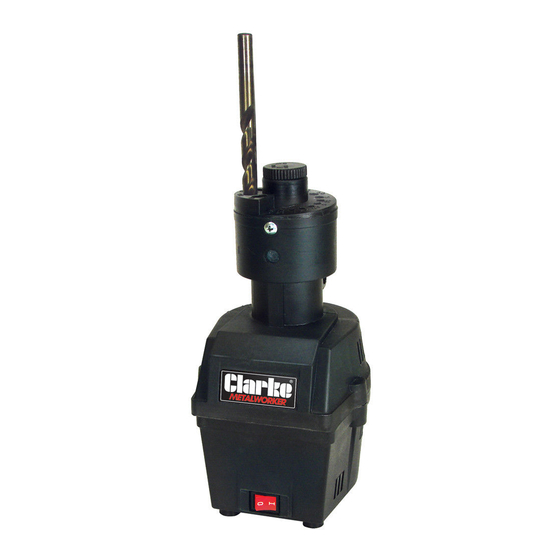

- Page 1 ELECTRIC DRILL BIT SHARPENER MODEL NO: CBS16 PART NO: 6480230 OPERATION & MAINTENANCE INSTRUCTIONS LS0910...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE electric drill bit sharpener. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: WHEN USING ELECTRIC TOOLS, MACHINES, OR EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL INJURY. 1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries. Keep work area well lit. 2. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 5: Product Overview
PRODUCT OVERVIEW DESCRIPTION Grinding Wheel Height Adjustment Knob Head Assembly On/Off Switch Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 6 OPERATIONS PROPERLY SHARPENED BITS Your bit is properly sharpened when it has the following characteristics. • A sharp point in the center of the bit. • Two sharp and equal cutting edges • Two trailing edges that are slightly lower than the cutting edges. SHARPENING PROCEDURE 1.
- Page 7 ADJUSTING THE GRINDING WHEEL 1. Turn the grinding wheel height adjustment knob clockwise to raise the wheel. • This will give you an aggressive cutting action. This is also useful when you are working with short bits. 2. Lower the wheel by turning the adjusting knob to the left.
-
Page 8: Maintenance
MAINTENANCE CHANGING THE WHEEL 1. Make sure that the sharpener is switched off and disconnected from the mains power supply. 2. Remove the two screws that hold the head assembly in place and remove the head assembly. 3. Remove the wheel assembly. •... -
Page 9: Troubleshooting
CLEANING 1. Keep the surface of your sharpener free of grit, dirt, and grease. Use soapy water or non-toxic solvents. Do not use petroleum based solvents. 2. Keep the air vents free of foreign matter at all times. 3. If the motor does not operate, it needs to be serviced or replaced by a qualified technician. -
Page 10: Parts List And Diagram
PARTS LIST AND DIAGRAM DESCRIPTION PART NO DESCRIPTION PART NO 4A Adjustment Knob HTCBS1604A 16 Connector (Male) HTCBS16016 Index HTCBS16001 17 Upper Motor Housing HTCBS16017 Cap Ring HTCBS16002 18 Bolt HTCBS16018 Adjustment Cylinder HTCBS16005 19 Motor HTCBS16019 Washer HTCBS16006 20 Cover HTCBS16020 Grinding Wheel HTCBS16007... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
