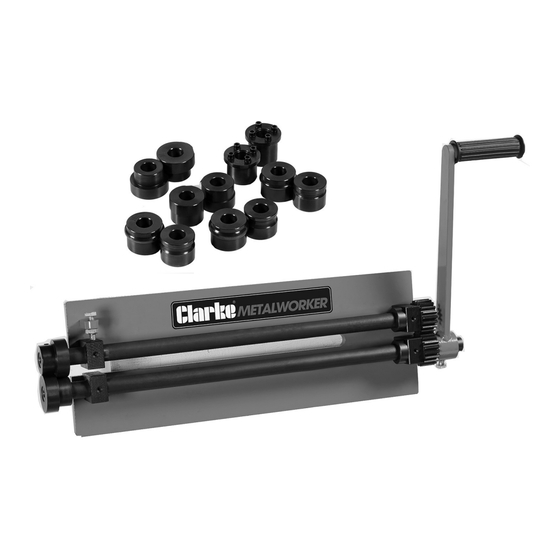

- Page 1 BEAD ROLLER MODEL NO: CBRM1 PART NO: 7627907 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC 0724...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Bead Roller. The bead roller is excellent for producing strengthening ribs in panels used in creating replacement floor pans, bulkhead panels, inner wing panels etc. The gear-driven design of the steel bead roller machine delivers maximum forming power while requiring minimal handle force for the greatest accuracy.
- Page 3 UNPACKING & ASSEMBLY Ensure the product suffered no damage during transit and that all items are present. Should any loss or damage become apparent, please contact your CLARKE dealer immediately. The numbers in the diagrams refer to the component parts on pages 7 & 8.
- Page 4 2. Inspect the Cutting Plates (9) as shown in Figure 2. When the Bead Roller is properly aligned, the edges of the Cutting Plates (9) should be touching (or almost touching). If they are not, perform the following steps. NOTE: If the edges are touching and the machine does not cut material properly, adjust the roller tension as discussed in the section titled: Adjusting Roller Tension.
- Page 5 4. Using a wrench, remove the two bolts (14) securing the Cutting Dies (10-01 and 10-02) to the Driving Shaft (3) and Driving Shaft (4). Remove the washers (13). 5. Using a hex key (27), loosen the screws (16) that lock the Cutting Dies (10-01 and 10-02) onto the rollers.
- Page 6 ADJUSTING ROLLER TENSION 1. Adjust the bolt (15) finger tight. 2. Using a wrench, tighten 1 to 3 turns, depending on desired results. IN USE It may be helpful if two people operate the Bead Roller depending on the size of the workpiece.
- Page 7 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 8 Hex key 4mm GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
