Front Panel Features; Mounting The Mp 101 - Extron electronics MP 101 User Manual

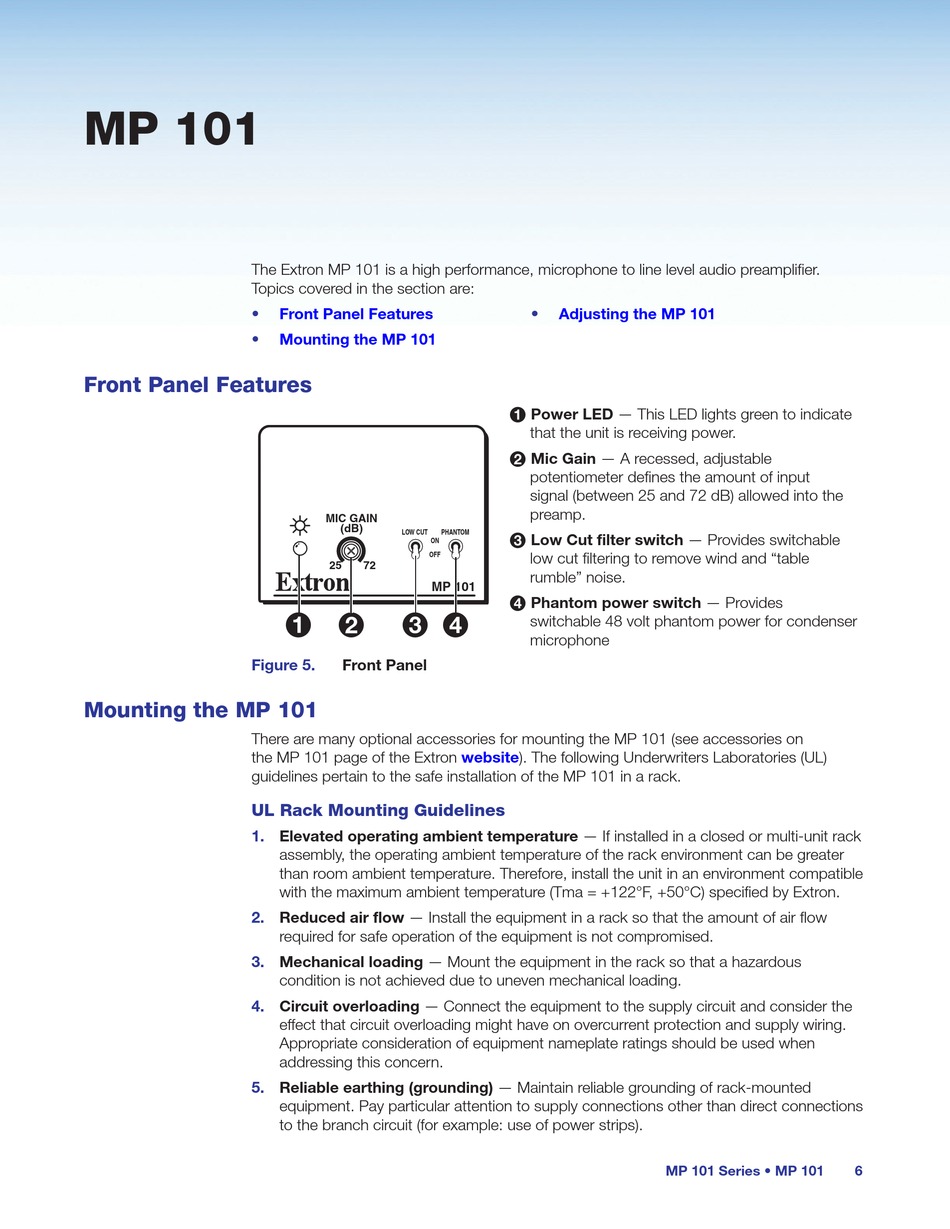

MP 101
The Extron MP 101 is a high performance, microphone to line level audio preamplifier.
Topics covered in the section are:
•
•

Front Panel Features

Figure 5.

Mounting the MP 101

There are many optional accessories for mounting the MP 101 (see accessories on
the MP 101 page of the Extron website). The following Underwriters Laboratories (UL)
guidelines pertain to the safe installation of the MP 101 in a rack.
UL Rack Mounting Guidelines
1.
2.
3.
4.
5.
Front Panel Features
Mounting the MP 101
MIC GAIN
(dB)
LOW CUT PHANTOM
ON
OFF
25 72
MP 101
1 1 2 2 3 3 4 4
Front Panel
Elevated operating ambient temperature — If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment can be greater
than room ambient temperature. Therefore, install the unit in an environment compatible
with the maximum ambient temperature (Tma = +122°F, +50°C) specified by Extron.
Reduced air flow — Install the equipment in a rack so that the amount of air flow
required for safe operation of the equipment is not compromised.
Mechanical loading — Mount the equipment in the rack so that a hazardous
condition is not achieved due to uneven mechanical loading.
Circuit overloading — Connect the equipment to the supply circuit and consider the
effect that circuit overloading might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted
equipment. Pay particular attention to supply connections other than direct connections
to the branch circuit (for example: use of power strips).
• Adjusting the MP 101
Power LED — This LED lights green to indicate
1
that the unit is receiving power.
Mic Gain — A recessed, adjustable
2
potentiometer defines the amount of input
signal (between 25 and 72 dB) allowed into the
preamp.
Low Cut filter switch — Provides switchable
3
low cut filtering to remove wind and "table
rumble" noise.
Phantom power switch — Provides
4
switchable 48 volt phantom power for condenser
microphone
MP 101 Series • MP 101 6
