- Page 1 User Guide Category MP 101 Series Microphone to Line Preamplifiers 68-992-02 Rev. B 04 19...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad This symbol, , when used on the product, is intended to WARNING avvertire l’utente della presenza di tensione non isolata pericolosa alert the user of the presence of uninsulated dangerous voltage within the all’interno del contenitore del prodotto che può...
- Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 20xx-2019 Extron Electronics. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
MP 101 D ..........12 About this Manual..........1 Front Panel Features .......... 12 About the MP 101, MP 101 AAP, and Adjusting the MP 101 D ........12 MP 101 D ............1 Mounting the MP 101 D ........13 Features .............. - Page 6 Technical Publications Standards and Styles • Contents...
-
Page 7: Introduction
About the MP 101, MP 101 AAP, and MP 101 D The Extron MP 101, MP 101 AAP, and MP 101 D (the MP 101 Series) are high quality microphone to line level audio preamplifiers. These products can add microphone capability to most Extron audio and switcher systems. -
Page 8: Mp 101 Series Rear Panels
MP 101 Series Rear Panels This section covers rear panel feature for the MP 101, the MP 101 APP, and the MP 101 D. Rear Panel Features MP 101 LINE OUTPUT MIC TO LINE PREAMPLIFIER POWER 0.3A MAX REMOTE INPUT VOL/MUTE 1 1 2 2 4 4 3 3... - Page 9 To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter. • Pour vérifier la polarité avant la connexion, brancher l’alimentation hors charge et mesurer sa sortie avec un voltmètre. MP 101 Series • MP 101 Series Rear Panels...
-
Page 10: Remote Connection
MediaLink product to remotely control volume and mute levels for the MP 101 unit (see Remote Control on page 7). Mic Input (Microphone Level) Mic Input (MP 101 only) — A 3-pin, captive screw connector for a standard condenser microphone connection. 3/16" Ring Sleeve... -
Page 11: Audio Output (Line Level)
Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne PAS connecter les manchons aux contacts négatifs (–). Low Cut Filter Switch Low Cut filter switch (MP 101 AAP and MP 101 D) — Provides low cut filtering to remove wind and “table rumble” noise. Phantom Power Phantom Power (MP 101 AAP and MP 101 D) —... -
Page 12: Front Panel Features

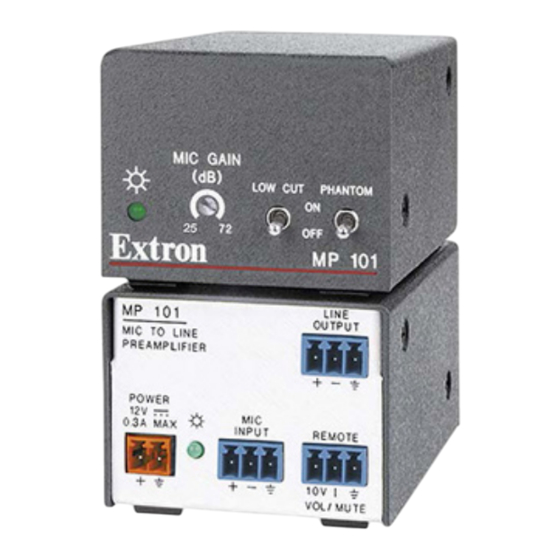

MP 101 The Extron MP 101 is a high performance, microphone to line level audio preamplifier. Topics covered in the section are: • Front Panel Features • Adjusting the MP 101 • Mounting the MP 101 Front Panel Features Power LED — This LED lights green to indicate that the unit is receiving power. -
Page 13: Adjusting The Mp 101
Adjusting the MP 101 After the MP 101 has been properly mounted and connected, do the following to adjust it: If using a condenser microphone, set the Phantom power switch to the ON position. If using a dynamic microphone, set the Phantom power switch to the OFF position. -
Page 14: Mp 101 Aap
MP 101 AAP The Extron MP 101 AAP is a high performance microphone to line level audio preamplifier. This model is a two-space MP 101 AAP in black. Topics covered in this section are: • Front Panel Features • Mounting the MP 101 •... -
Page 15: Adjusting The Mp 101 Aap
Mounting the MP 101 AAP The MP 101 AAP must be attached to a device faceplate or AAP wallplate and then cabled before you can test and perform the final mount (installation into a wall or piece of furniture). -
Page 16: Remote Control
Repeat steps 1 through 3 to mount any other AAPs. Cover any openings in the faceplate with blank plates (provided). Adjusting If it was not done previously, adjust the MP 101 AAP from its rear panel (see the MP 101 AAP on the previous page for detailed instructions). -
Page 17: Remote Control Options
10 k ohm potentiometer as the main method for controlling volume levels. The VCM 110 AAP mute button overrides the mute button of the MP 101 D. The Extron MLA-VC10 Plus converts RS-232 serial command to 0 to 10 volt variable DC for volume control. -
Page 18: Front Panel Features
MP 101 D The Extron MP 101 D provides the same features as the other MP 101 models in a convenient, Decorator-style wallplate. Like the MP 101 and MP 101 AAP, this mic to line preamplifier can be remotely controlled via a VCM volume/mute control module. -
Page 19: Mounting The Mp 101 D
Place the MP 101 D through the opening in the wall or furniture and into the wall box. Take care not to damage the output cables, which fit behind the preamplifier at the back of the wall box. -
Page 20: Remote Control
50 volume controller use a 10 k ohm potentiometer as the main method for controlling volume levels. The VCM 110 AAP mute button overrides the mute button of the MP 101 AAP. The Extron MLA-VC10 Plus converts RS-232 serial command to 0 to 10 volt variable DC for volume control. -
Page 21: Architectural Installation
Preparing the Site and Installing the Wall Box Installation Instructions Two versions of the MP 101 series, the MP 101 AAP and MP 101 D, can be mounted into furniture, a wall, or a floor box. Unless otherwise noted, both units (the MP 101 AAP and the MP 101 D) are referred to as the “MP 101”... - Page 22 Cut out the material from the marked area. Check the opening size by inserting the wall box (if used) or the MP 101 (if no box is used) into the opening. The box and preamplifier should fit easily into the opening.
- Page 23 Insert the wall box into the opening, and attach it to the wall, stud, or furniture. • If the MP 101 AAP or MP 101 D are being installed in a two- or four-gang AAP plate, attach the wall box to the wall stud or furniture with nails or screws, leaving the front edge flush with the outer wall or furniture surface.
-
Page 24: Dimensions And Template For The Mp 101 D
(3.3 mm) 0.1" (4.3 mm) (8.4 mm) (2.5 mm) 2.6" 4.10" (66 mm) (104 mm) 1.29" 0.33" (33 mm) (8.4 mm) Figure 13. MP 101 D Dimensions MP 101 Series • Dimensions and Template for the MP 101 D 18... -
Page 25: Template
AREA FOR (57 cm) (114.3 mm) MOUNTING Location of MP 101 D Circuit Board Cut Out Line for Installing the Electrical Figure 14. Template for MP 101 D MP 101 Series • Dimensions and Template for the MP 101 D... - Page 26 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
