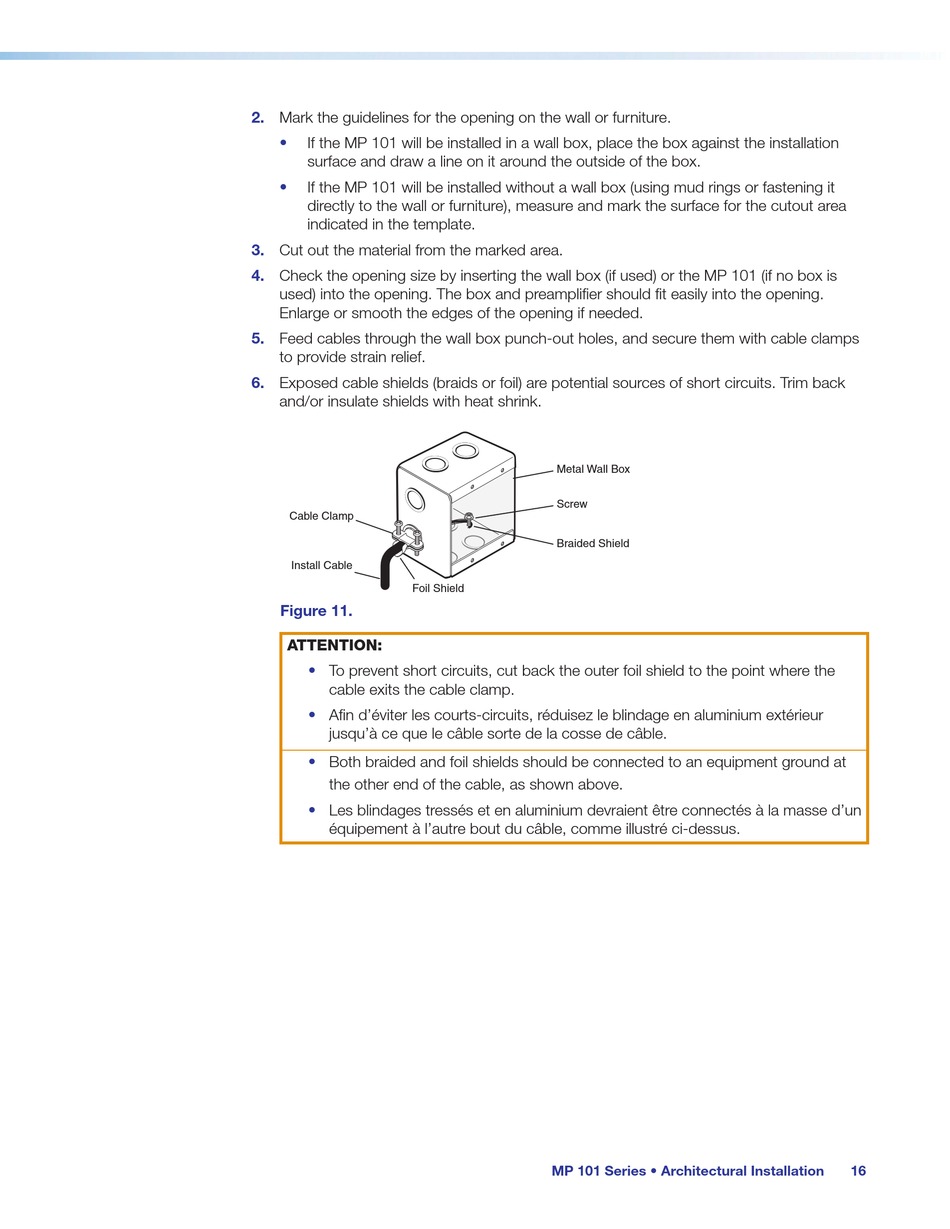

2. Mark the guidelines for the opening on the wall or furniture.
• If the MP 101 will be installed in a wall box, place the box against the installation
surface and draw a line on it around the outside of the box.
• If the MP 101 will be installed without a wall box (using mud rings or fastening it
directly to the wall or furniture), measure and mark the surface for the cutout area
indicated in the template.
3. Cut out the material from the marked area.
4. Check the opening size by inserting the wall box (if used) or the MP 101 (if no box is
used) into the opening. The box and preamplifier should fit easily into the opening.
Enlarge or smooth the edges of the opening if needed.
Connecting Shields.eps
5.
Feed cables through the wall box punch-out holes, and secure them with cable clamps
to provide strain relief.
6. Exposed cable shields (braids or foil) are potential sources of short circuits. Trim back
and/or insulate shields with heat shrink.
Cable Clamp
Install Cable
Foil Shield
Figure 11.
ATTENTION:
• To prevent short circuits, cut back the outer foil shield to the point where the
cable exits the cable clamp.
• Afin d'éviter les courts-circuits, réduisez le blindage en aluminium extérieur
jusqu'à ce que le câble sorte de la cosse de câble.
Both braided and foil shields should be connected to an equipment ground at
•
the other end of the cable, as shown above.
Les blindages tressés et en aluminium devraient être connectés à la masse d'un
•
équipement à l'autre bout du câble, comme illustré ci-dessus.
Metal Wall Box
Screw
Braided Shield
MP 101 Series • Architectural Installation 16
