MP 101 D
The Extron MP 101 D provides the same features as the other MP 101 models in a
convenient, Decorator-style wallplate. Like the MP 101 and MP 101 AAP, this mic to line
preamplifier can be remotely controlled via a VCM volume/mute control module.
Topics covered in this section are:
•
•

Front Panel Features

1 1
3 3
Figure 9.

Adjusting the MP 101 D

Adjustment options for the MP 101 D are located on its rear panel (see
Features). Therefore, you must perform these adjustments before mounting into a wall.
To adjust the MP 101 D, do the following:
1.
2.
Front Panel Features
Remote Control
2 2
ACTIVE
MUTE
MIC IN
4 4

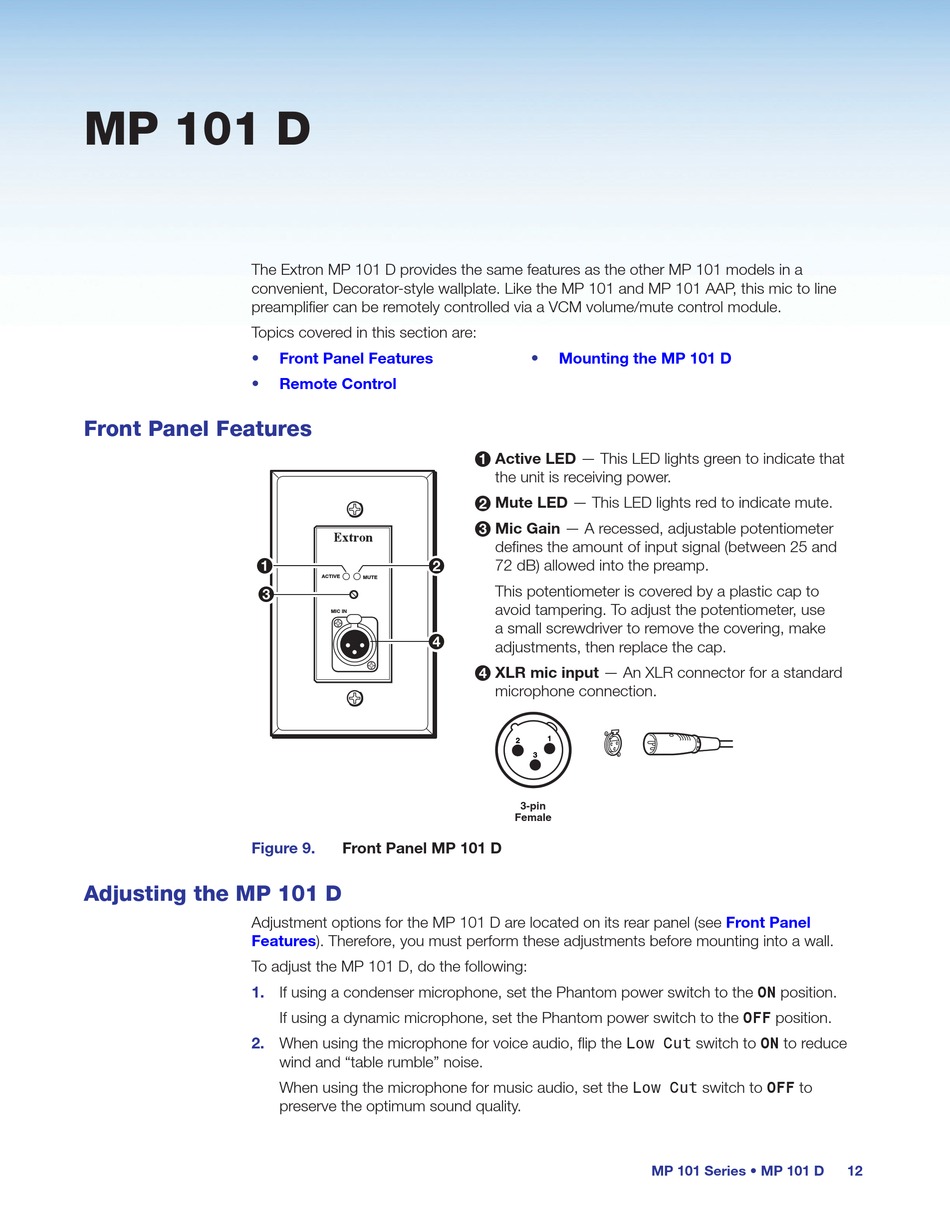

Front Panel MP 101 D
If using a condenser microphone, set the Phantom power switch to the ON position.
If using a dynamic microphone, set the Phantom power switch to the OFF position.
When using the microphone for voice audio, flip the Low Cut switch to ON to reduce
wind and "table rumble" noise.
When using the microphone for music audio, set the Low Cut switch to OFF to
preserve the optimum sound quality.
• Mounting the MP 101 D
Active LED — This LED lights green to indicate that
1
the unit is receiving power.
Mute LED — This LED lights red to indicate mute.
2
Mic Gain — A recessed, adjustable potentiometer
3
defines the amount of input signal (between 25 and
72 dB) allowed into the preamp.
This potentiometer is covered by a plastic cap to
avoid tampering. To adjust the potentiometer, use
a small screwdriver to remove the covering, make
adjustments, then replace the cap.
XLR mic input — An XLR connector for a standard
4
microphone connection.
1
2
3
3-pin
Female
MP 101 Series • MP 101 D
Front Panel
12
