Remote Control
The wiring and control options described below pertain to all models in the MP 101 series.
Remote Connector Wiring
Pin 1 is 10 VDC reference voltage. Pin 2 is volume control
DC voltage; range is 0 to 10 V, where 0 V is mute and 10 V
provides maximum volume. Pin 3 is ground.
NOTE:
Wall Stud
Screws or Nails
Cable
Clamp
n
t r o
E x
AAP 102
Installation Cable

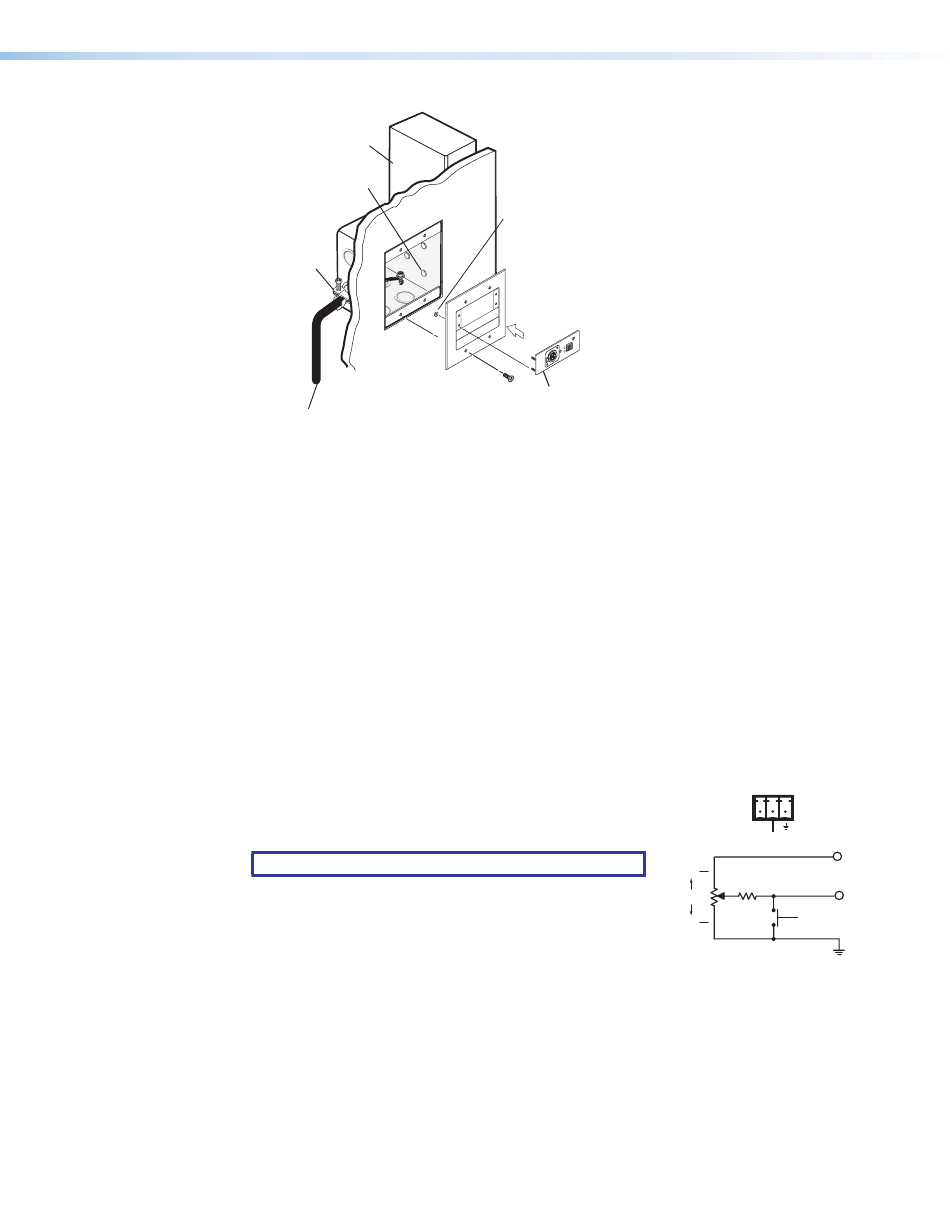

Figure 8.
Mounting the MP 101 APP
Repeat steps 1 through 3 to mount any other AAPs. Cover any openings in the
faceplate with blank plates (provided).
If it was not done previously, adjust the MP 101 AAP from its rear panel (see
the MP 101 AAP
on the previous page for detailed instructions).
Pretest the MP 101 AAP before final mounting of the faceplate.
Perform the final mount by attaching the cabled device faceplate or AAP wallplate into
a wall or piece of furniture. For detailed installation information, refer to the installation
guide shipped with the faceplate.
All nominal levels are at ±10%.
#4-40 Nut w/ Captive
Washer
0 2
P 1
A A
E
T IV
A C
P
A A
0 1
P 1
T E
M L
M U
M IC
IN
Extron
MP 101 AAP
MIC to Line
Preamplifier
MP 101 Series • MP 101 APP
Adjusting
REMOTE
1
2
3
10V
VOL/MUTE
1
MAX
2K
2
10K
MUTE
MIN
3
GND
10
