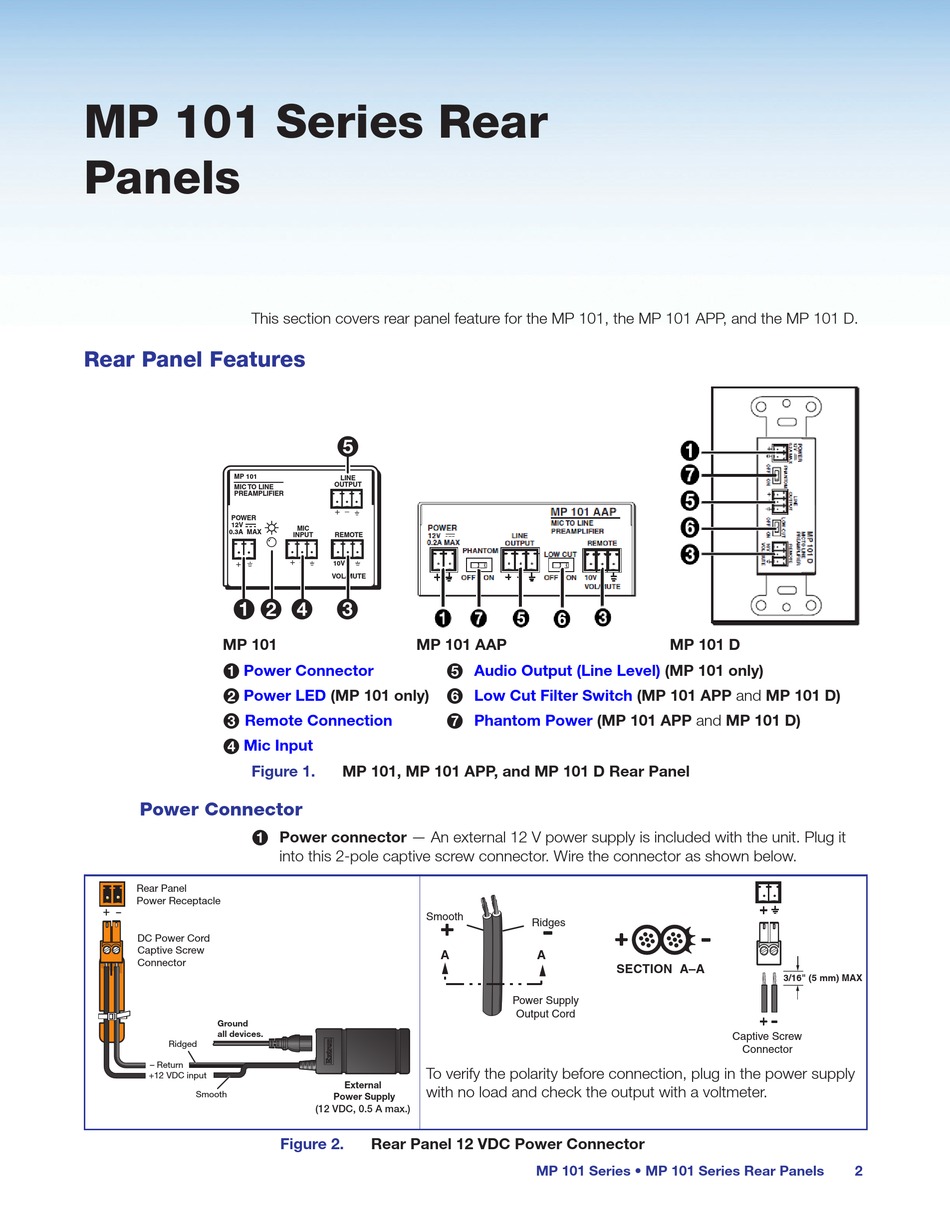

MP 101 Series Rear
Panels
This section covers rear panel feature for the MP 101, the MP 101 APP, and the MP 101 D.

Rear Panel Features

MP 101
MIC TO LINE
PREAMPLIFIER
POWER
12V
0.3A MAX
1 1 2 2 4 4 3 3
MP 101

Power Connector

1
Power LED
2
Remote Connection
3
Mic Input
4
Figure 1.
Power Connector
1
Rear Panel
Power Receptacle
DC Power Cord
Captive Screw
Connector
Ground
all devices.
Ridged
– Return
+12 VDC input
Smooth
5 5
LINE
OUTPUT
MIC
REMOTE
INPUT
10V
VOL/MUTE
MP 101 AAP
5
(MP 101 only)
6
7
MP 101, MP 101 APP, and MP 101 D Rear Panel
Power connector — An external 12 V power supply is included with the unit. Plug it
into this 2-pole captive screw connector. Wire the connector as shown below.
Smooth
A
To verify the polarity before connection, plug in the power supply
External
with no load and check the output with a voltmeter.
Power Supply
(12 VDC, 0.5 A max.)
Figure 2. Rear Panel 12 VDC Power Connector
Audio Output (Line Level)
Low Cut Filter Switch (MP 101 APP and MP 101 D)
Phantom Power (MP 101 APP and MP 101 D)
Ridges
A
SECTION A–A
Power Supply
Output Cord
MP 101 Series • MP 101 Series Rear Panels
MP 101 D
(MP 101 only)
3/16" (5 mm) MAX
Captive Screw
Connector
