Summary of Contents for Dentsply Sirona TENEO

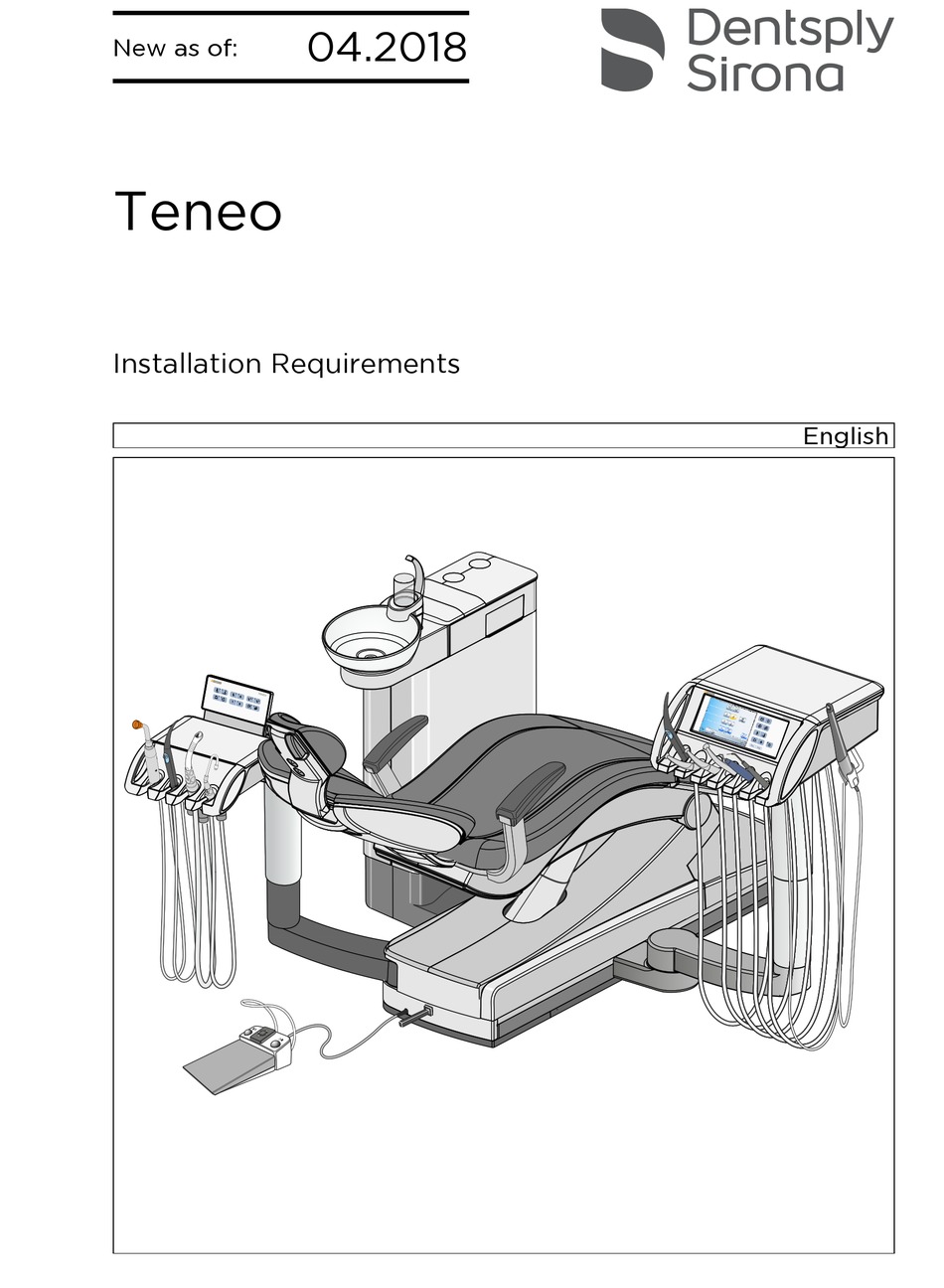

- Page 1 04.2018 New as of: Teneo Installation Requirements English Cover page...
- Page 2 Dentsply Sirona Installation Requirements Teneo 61 93 739 D3509 D3509.021.01.18.02 04.2018...
-
Page 3: Table Of Contents
Dentsply Sirona Table of contents Installation Requirements Teneo Table of contents General information ....................Notes on the installation prerequisites ............Structure of the document ................1.2.1 Identification of the danger levels............ 1.2.2 Formats and symbols used ............. Safety information....................Installation by qualified personnel .............. - Page 4 Table of contents Dentsply Sirona Installation Requirements Teneo 4.1.5 Distances in the treatment room with HELIODENT PLUS ....4.1.6 Side view with HELIODENT Plus ............. 4.1.7 Distances in the treatment room with CEREC AI ......4.1.8 Side view with CEREC AI ..............
-
Page 5: General Information
Installation Requirements Teneo 1.1 Notes on the installation prerequisites General information Notes on the installation prerequisites This document describes the installation prerequisites for the Teneo treatment center. It contains the following information: ● Required information for practice planning. ● Information for the installer and operator regarding the necessary quality of the air and water supply media. -
Page 6: Structure Of The Document
1 General information Dentsply Sirona 1.2 Structure of the document Installation Requirements Teneo Structure of the document 1.2.1 Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions. -
Page 7: Safety Information
Dentsply Sirona. The user assumes the risk of using non-approved accessories. If any devices not approved by Dentsply Sirona are connected, they must comply with the applicable standards, e.g.: ● IEC 60950-1 or IEC 62368-1 for information technology equipment, (e.g. -
Page 8: Power Connection
2 Safety information Dentsply Sirona 2.4 Power connection Installation Requirements Teneo Power connection WARNING Shock hazard It is essential that you switch off the power supply PRIOR to beginning the installation. There is a risk of electric shock. People can be injured or electrical components of the unit destroyed. -
Page 9: On-Site Installation
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.1 Substrate, floor On-site installation Substrate, floor Unevenness The floor must be level and horizontal in accordance with DIN 18 202. The shimming plates (A) in the accessory pack can be used for evennesses of up to 2 mm. -
Page 10: Requirements Of The Supply Media
3 On-site installation Dentsply Sirona 3.2 Requirements of the supply media Installation Requirements Teneo Requirements of the supply media Suction machine Compressed air (free from oil) The compressor must be able to draw in air in an efficient, hygienic manner. Cold water (drinking water quality) -
Page 11: Requirements Of The Water Supply
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.2 Requirements of the supply media 3.2.1 Requirements of the water supply Condition of the water 3.2.1.1 The water that supplies the treatment center must meet the following requirements to avoid operating faults. Water pressure: 2.5bar (36psi) to 6bar (87psi) -
Page 12: Connection To The Public Drinking Water System
3 On-site installation Dentsply Sirona 3.2 Requirements of the supply media Installation Requirements Teneo Connection to the public drinking water system 3.2.1.2 The treatment center complies with the requirements of EN 1717 (free discharge with an isolation distance ≥ 20 mm) and the DVGW German Gas and Water Association). -
Page 13: Installation Of The Water Supply On The Building Side
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.2 Requirements of the supply media Installation of the water supply on the building side 3.2.1.3 ● Carry out the installation in accordance with the national installation requirements (e.g. EN 1717). ● Connect the treatment center to the cold water supply. -
Page 14: Requirements Of The Air Supply
3 On-site installation Dentsply Sirona 3.2 Requirements of the supply media Installation Requirements Teneo 3.2.2 Requirements of the air supply The air supply is required to drive the turbines, cool the drill drives, for the cooling spray and to control the treatment center. -
Page 15: Typical Pressure Loss In The Suction System
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.2 Requirements of the supply media Typical pressure loss in the suction system 3.2.3.1 Suction flow of large suction hose red ( ○ ): Only large suction device black ( ◊ ): Saliva ejector in parallel 3.2.4... -
Page 16: Above-Floor Installation Of Supply Lines
3 On-site installation Dentsply Sirona 3.3 Above-floor installation of supply lines Installation Requirements Teneo Above-floor installation of supply lines The supply lines can be installed above the floor (above-floor installation) or through the floor (underfloor installation). For the installation of the supply lines through the floor, see "Underfloor installation of supply lines"... -
Page 17: Underfloor Installation Of Supply Lines
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.4 Underfloor installation of supply lines Underfloor installation of supply lines 3.4.1 Installation template We recommend that you order the installation template (REF 33 15 830) from Sirona for laying the pipe ends in the installation field. -
Page 18: Dentsply Sirona
3 On-site installation Dentsply Sirona 3.4 Underfloor installation of supply lines Installation Requirements Teneo Water supply Pipe 10x1 mm, corner valve outlet 3/8" Compressed air supply Pipe 10x1 mm, corner valve outlet 3/8" Suction line DN40 HT-PP ISO 8283-3 (polypropylene, inner diameter approx. 36.5 mm) -
Page 19: Installation Of The Supply Lines In The Termination Panel
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.5 Cleaning the air and water pipes 3.4.2 Installation of the supply lines in the termination panel ✔ An installation template is available or was prepared. 1. Check the position of the supply lines against the installation template as per the practice blueprint. -
Page 20: Dentsply Sirona
3 On-site installation Dentsply Sirona 3.5 Cleaning the air and water pipes Installation Requirements Teneo Versorgung durch den Fußboden Supply through the floor Alimentation à travers du plancher Alimentación a través del suelo >30 sec Versorgung über den Fußboden Supply above the floor Alimentation au-dessus du plancher Alimentación por encima del suelo... -
Page 21: Underfloor Installation Of The Pc Connections
Dentsply Sirona 3 On-site installation Installation Requirements Teneo 3.6 Underfloor installation of the PC connections Underfloor installation of the PC connections Depending on the prevailing local conditions, the existing cable set can be installed in the cable duct of an underfloor installation by an installer. -
Page 22: Dentsply Sirona
3 On-site installation Dentsply Sirona 3.6 Underfloor installation of the PC connections Installation Requirements Teneo 1. Pull the lines USB repeater, L339 (Ethernet), L406 (HDMI) and protective ground wire of the treatment center through the cable duct to the location of the PC C. For PCs without a HDMI output, insert the Audio line. -
Page 23: Dimensions, Technical Data
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.1 Scale 1:20 Dimensions, technical data Scale 1:20 4.1.1 Distances in the treatment room Recommended distances from cabinet or wall. Center of the floor cut-out/installation area Minimum distance with tray and/or Heliodent Plus... -
Page 24: Side View
4 Dimensions, technical data Dentsply Sirona 4.1 Scale 1:20 Installation Requirements Teneo 4.1.2 Side view Height and swivel range of the lamp LEDview Plus LEDview Monitor on lamp support tube 61 93 739 D3509 D3509.021.01.18.02 04.2017... -
Page 25: Top View
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.1 Scale 1:20 4.1.3 Top view 2000 78 3/4” 20° 1150 45 1/4” 90° 110° 10 1/2” 14 1/4” 50° 30° max. 16 1/4” 7 7/8” 33 7/8” 41° 25° 25° 1250 49 1/4”... -
Page 26: Top View With Options
4 Dimensions, technical data Dentsply Sirona 4.1 Scale 1:20 Installation Requirements Teneo 4.1.4 Top view with options Tray LEDview Plus LEDview Monitor Projection of tray arm Projection of lamp arm 61 93 739 D3509 D3509.021.01.18.02 04.2017... -
Page 27: Distances In The Treatment Room With Heliodent Plus
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.1 Scale 1:20 4.1.5 Distances in the treatment room with HELIODENT PLUS Recommended distances from cabinet or wall. Center of the floor cut-out/installation area Minimum distance with tray and/or Heliodent Plus IMPORTANT! The lamp installed here and the tray and Heliodent Plus have... -
Page 28: Side View With Heliodent Plus
Side view with HELIODENT Plus Recommended installation height for wall adapter: 1110 mm (43 3/4“) Cable bushing for radiation cable The radiation cable between TENEO and the wall adapter is supplied (12.5 mm outer diameter, max. cable length 10 meters (393”). CAUTION The Heliodent Plus radiation cable cannot be laid together with USB or HDMI cables. -
Page 29: Distances In The Treatment Room With Cerec Ai
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.1 Scale 1:20 4.1.7 Distances in the treatment room with CEREC AI Recommended distances from cabinet or wall. Center of the floor cut-out/installation area Minimum distance with tray and CEREC AI/CEREC AI Connect... -
Page 30: Side View With Cerec Ai
Note: If a C-Line unit (e.g. C2 , M1 ) was previously installed, the fastening drill holes must be re-drilled. Adapter plate thickness: 12 mm Drilling with floor (7x) REF 62 04 965 Teneo adapter plate 61 93 739 D3509 D3509.021.01.18.02 04.2017... -
Page 31: Dentsply Sirona
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.2 Mounting plates 61 93 739 D3509 D3509.021.01.18.02 04.2017... -
Page 32: Information On Planning For The Practice
C on the floor using two screws. Demonstration plate thickness: 10 mm REF 62 04 973 Teneo demo chair plate Information on planning for the practice The following file(s) for practice planning are available for download in the dealer area of the Sirona website under DOWNLOADS =>... -
Page 33: Technical Data
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.4 Technical data Technical data Model designation: Teneo Power connection: 100 – 230 V AC ± 10% 50/60 Hz Rated current: 4.8 A at 230 V 9.6 A at 115 V 11 A at 100 V also max. -
Page 34: Operating, Transport And Storage Conditions
4 Dimensions, technical data Dentsply Sirona 4.4 Technical data Installation Requirements Teneo Foot control wireless interface The wireless foot control can be equipped with various wireless modules. A label with the name of the wireless module used is on the underside of the foot control. -
Page 35: Dentsply Sirona
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.4 Technical data Transport and storage Temperature: -40 °C – +70 °C 1060 conditions: (-40 °F – 158 °F) Relative humidity: 10% - 95% Air pressure: 500 hPa – 1060 hPa Operating conditions: Ambient temperature: 10 °C –... -
Page 36: Standards/Approvals
4 Dimensions, technical data Dentsply Sirona 4.5 Standards/Approvals Installation Requirements Teneo Standards/Approvals The Teneo treatment center complies with the following standards, among others: ● IEC 60601-1 (electrical and mechanical safety plus software reliability) ● IEC 60601-1-2 (electromagnetic compatibility) ● IEC 60601-1-6 / IEC 62366 (usability) ●... -
Page 37: Dentsply Sirona
Dentsply Sirona 4 Dimensions, technical data Installation Requirements Teneo 4.5 Standards/Approvals The treatment center complies with the technical regulations and requirements on safety and hygiene for connection to the public drinking water supply. The unit is certified according to the requirements of the German Technical and Scientific Association for Gas and Water (DVGW). -
Page 38: Electromagnetic Compatibility
The following information must be observed to ensure safe operation regarding EMC aspects. Teneo complies with the requirements for electromagnetic compatibility (EMC) according to IEC 60601-1-2:2014 Teneo is designed for use in professional healthcare facilities. Teneo is hereinafter referred to as "UNIT". Accessories Connecting the PC The required interface cables can be ordered from Sirona. -
Page 39: Dentsply Sirona
Dentsply Sirona 5 Electromagnetic compatibility Installation Requirements Teneo 5.1 Accessories The UNIT may only be operated with accessories and spare parts approved by Sirona. Unapproved accessories and spare parts may lead to an increased emission or to a reduced immunity to interference. -
Page 40: Electromagnetic Emission
5 Electromagnetic compatibility Dentsply Sirona 5.2 Electromagnetic emission Installation Requirements Teneo Electromagnetic emission The UNIT is intended for operation in the electromagnetic environment specified below. The customer or user of the UNIT should make sure that it is used in such an environment. -
Page 41: Dentsply Sirona
Dentsply Sirona 5 Electromagnetic compatibility Installation Requirements Teneo 5.3 Interference immunity Interference immunity IEC 60601-1-2 test Compliance level Electromagnetic environment - tests level guidelines Voltage dips, short <5% U for ½ period <5% U for ½ period The quality of the line power supply... -
Page 42: Dentsply Sirona
5 Electromagnetic compatibility Dentsply Sirona 5.3 Interference immunity Installation Requirements Teneo 2. The field strengths of fixed transmitters, such as base stations of radiotelephones and mobile agricultural radio broadcast services, amateur radio stations, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. A site survey is recommended to assess the electromagnetic environment due to fixed RF transmitters. -
Page 43: Dentsply Sirona
Dentsply Sirona 5 Electromagnetic compatibility Installation Requirements Teneo 5.3 Interference immunity Test frequency Band (MHz) Service Modulation Maximum Distance (m) Immunity test (MHz) Power (W) level (V/m) 380 - 390 TETRA 400 Pulse modulation 18 Hz 430 - 470 GMRS 460, FRS 460 ±... -
Page 44: Working Clearances
5 Electromagnetic compatibility Dentsply Sirona 5.4 Working clearances Installation Requirements Teneo Working clearances Recommended working clearances The UNIT is intended for operation in an electromagnetic environment, between portable and mobile RF where radiated RF interference is checked. The customer or the user of... -
Page 45: Foot Control Wireless Interface
Dentsply Sirona 5 Electromagnetic compatibility Installation Requirements Teneo 5.5 Foot control wireless interface Foot control wireless interface Insofar as the treatment center is equipped with a foot control, one wireless module each must be installed in the foot control and in the base of the chair of the treatment center. -
Page 46: Checklist
We recommend performing an inspection of the circumstances on location at least 4 weeks prior to installation. The checklist should help you when doing this. This can help ensure a smooth procedure on the day that the Teneo is actually installed. Installation location: ●... -
Page 47: It Hardware
Dentsply Sirona 6 Checklist Installation Requirements Teneo 6.3 IT hardware Connections: Electrical (see On-site installation [ → 9]) ☑ ● Wireless systems in 2.4 GHz frequency range available? ☐ Yes ☐ No (e.g. room monitoring systems, video transmitters, etc.) ● If yes, this may damage the wireless foot control. -
Page 48: Network
● Network connection for Teneo available. ☐ ● Network connection for external PC available. ☐ IMPORTANT! The use of routers between Teneo and the treatment center PC must be avoided. ● Network configuration plan available. ☐ ● Network jacks have been certified. ☐... -
Page 49: D3509
Dentsply Sirona 6 Checklist Installation Requirements Teneo 6.5 Data processing IP addresses/firewall: ● Is a firewall installed? ☐ Yes ☐ No Software or hardware firewall? ☐ SW ☐ HW ● Remarks/Tasks: Practice administration programs: ● Are connections to the practice administration programs, etc. installed or ☐... - Page 50 We reserve the right to make any alterations which may be required due to technical improvements. © Sirona Dental Systems GmbH Sprache: englisch Printed in Germany D3509.021.01.18.02 04.2017 Ä.-Nr.: 124 987 Sirona Dental Systems GmbH Fabrikstraße 31 61 93 739 D3509 Order No 64625 Bensheim Germany...
