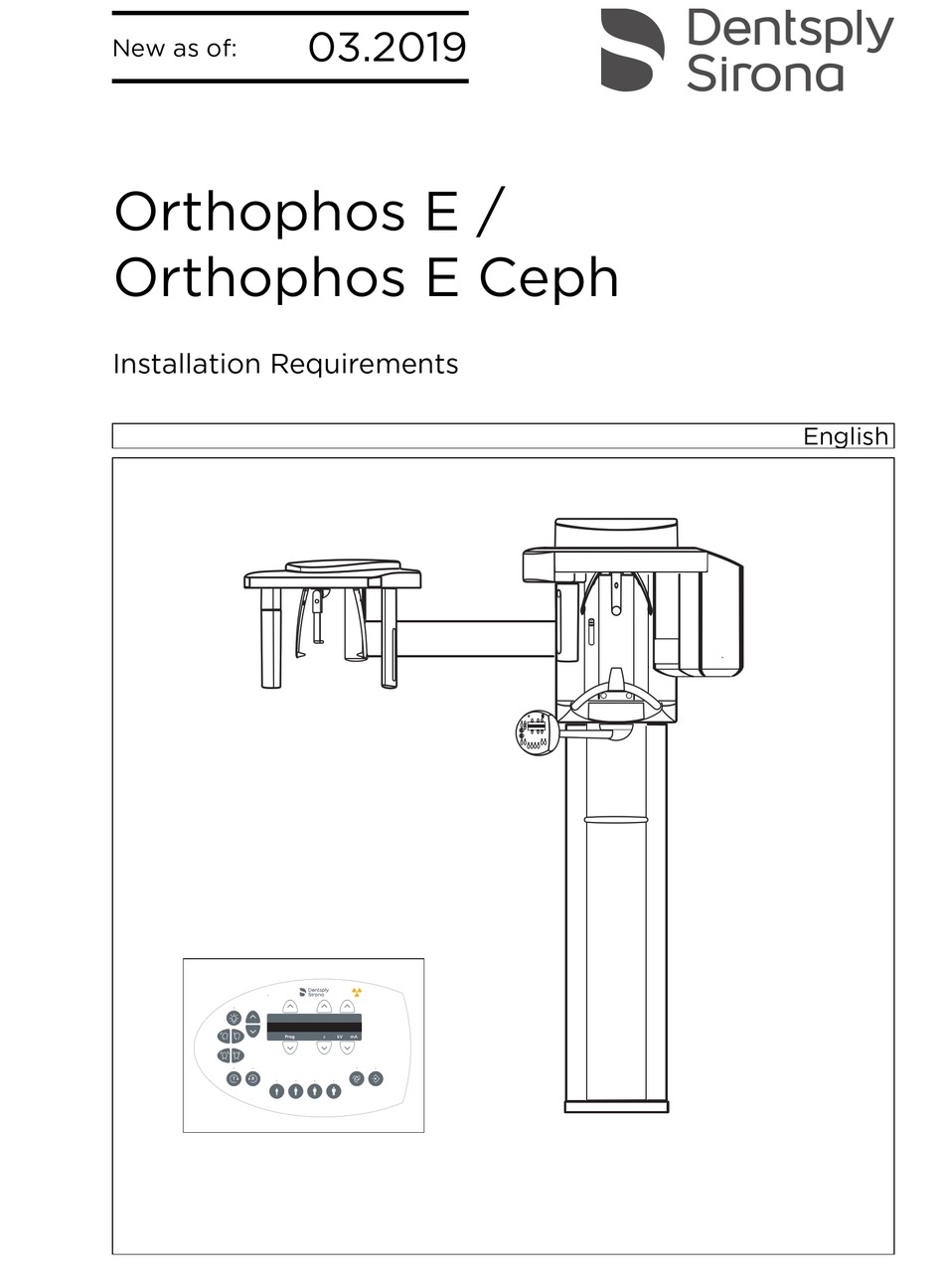

- Page 1 03.2019 New as of: Orthophos E / Orthophos E Ceph Installation Requirements English Title page...
-
Page 2: Table Of Contents
Purpose of the checklist ................Persons or companies performing inspection ..........Construction requirements ................IT Hardware....................3.4.1 Requirements for X-ray image PC Orthophos E ......3.4.2 Additional IT hardware requirements ..........Network ......................Data processing ................... List of measures ................... - Page 3 Dentsply Sirona Table of contents Installation Requirements Orthophos E Dimensions, technical data..................Dimensions 1:20 Orthophos E ..............5.1.1 Top view ..................5.1.2 Front view..................5.1.3 Top view with floor stand..............5.1.4 Front view with floor stand............... 5.1.5 Top view with Ceph left ..............
-
Page 4: General Data
Notes on the installation requirements This document describes the installation requirements for the X-ray units: Orthophos E, Orthophos E Ceph Subsequent installation is described in the: Orthophos E Installation Instructions REF 67 10 961 67 10 532 D3352 D3352.021.04.01.02 03.2019... -
Page 5: Structure Of The Document
Dentsply Sirona 1 General data Installation Requirements Orthophos E 1.2 Structure of the document Structure of the document 1.2.1 Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions. -
Page 6: Safety Instructions
On-site radiation protection When using the Orthophos E X-ray unit, proper shielding of the room and operator position is essential. It is the installer's responsibility to ensure that all local radiation regulations and safety measures are met. -
Page 7: Electrical Installation
Dentsply Sirona 2 Safety instructions Installation Requirements Orthophos E 2.6 Electrical installation Electrical installation The electrical installation must be made in compliance with DIN VDE 0100-710. 67 10 532 D3352 D3352.021.04.01.02 03.2019... -
Page 8: Checklist Of Installation Prerequisites
We recommend performing an inspection of the circumstances on location 4 weeks prior to installation. This can help ensure a smooth procedure on the day that the Orthophos E device is actually installed. The checklist of this document contains the most important items to take into consideration. -
Page 9: Persons Or Companies Performing Inspection
Dentsply Sirona 3 Checklist of installation prerequisites Installation Requirements Orthophos E 3.2 Persons or companies performing inspection Persons or companies performing inspection List of the persons/companies performing inspection on location: Specialized dealers: Date of the inspection: Present/company: Present/company: Present/company: Installation site / practice / clinic:... - Page 10 3 Checklist of installation prerequisites Dentsply Sirona 3.2 Persons or companies performing inspection Installation Requirements Orthophos E List of contact persons on-site: Function First name/Last Phone Cell phone Email name: Service engineer IT specialist Specialist advisors Administrator Expert Clinic engineer Professor Dentist...
-
Page 11: Construction Requirements
Dentsply Sirona 3 Checklist of installation prerequisites Installation Requirements Orthophos E 3.3 Construction requirements Construction requirements Transport paths ☑ ● Clarify and/or walk along unit transport path from delivery location to installation site, measuring doorways and passageways ☐ Yes ☐ No (For dimensions/weight, see Weight and packaging [ → 40]) Transport path OK? ●... - Page 12 3 Checklist of installation prerequisites Dentsply Sirona 3.3 Construction requirements Installation Requirements Orthophos E Installation location ☑ ● Installation location: Unit location: Building number: Room name/number: ● Is the room large enough? (see section Dimensions 1:20) ☐ Yes ☐ No ● Radiation protection plan available? ☐...
- Page 13 ● Other large electrical units (e.g. air conditioning systems, fan motors) in the vicinity? ☐ Yes ☐ No If yes, which (EMC influences)? ● Clearance of the large electrical units to Orthophos E? __________________m ● Remarks / tasks: Type of remote control installation: ☑...
-
Page 14: Hardware
For the requirements for the Sidexis 4 workstations and the Sidexis 4 server station, please refer to the system requirements for Sidexis 4 3.4.1 Requirements for X-ray image PC Orthophos E Requirements for 2D X-ray image PC Fulfilled Operating system ●... -
Page 15: Additional It Hardware Requirements
Dentsply Sirona 3 Checklist of installation prerequisites Installation Requirements Orthophos E 3.4 IT Hardware 3.4.2 Additional IT hardware requirements Workstations / X-ray image PC ☑ ● Is a diagnostic monitor available? At least one diagnostic monitor must be available in the practice. - Page 16 3 Checklist of installation prerequisites Dentsply Sirona 3.4 IT Hardware Installation Requirements Orthophos E SQL/Fileserver ☑ ● File server installed (separate server for image database only)? ☐ Yes ☐ No – Windows release with full access ☐ Yes ☐ No ________________ – Operating system/version ________________ –...
-
Page 17: Network
3 Checklist of installation prerequisites Installation Requirements Orthophos E 3.5 Network Network Network ☑ ● Network connection for Orthophos E available? ☐ Yes ☐ No ● Network connection available at all workstations? ☐ Yes ☐ No ● Network connection for the X-ray image PC available? ☐... -
Page 18: Data Processing
3 Checklist of installation prerequisites Dentsply Sirona 3.6 Data processing Installation Requirements Orthophos E Data processing IP addresses / firewall ☑ ● TCP/IP address range ______ . ______ . ______ . ______ - ______ . ______ . ______ . ______ ● Subnet mask ______ . - Page 19 Dentsply Sirona 3 Checklist of installation prerequisites Installation Requirements Orthophos E 3.6 Data processing IP addresses / firewall ☑ ● The following ports must be open for configuration and operation! ● Orthophos E 12835 12836 12837 12838 12839 ● X-ray image PC 52837 ●...
- Page 20 3 Checklist of installation prerequisites Dentsply Sirona 3.6 Data processing Installation Requirements Orthophos E DICOM ☑ ● Is a DICOM installation already present? ☐ Yes ☐ No – Which version? ________________ – Configuration? ________________ ● Is a DICOM connection required? ☐ Yes ☐...
-
Page 21: List Of Measures
Dentsply Sirona 3 Checklist of installation prerequisites Installation Requirements Orthophos E 3.7 List of measures List of measures What When Inspection of installation requirements performed on: from: Depot: Name: Signature: Customer: Name: Signature: 67 10 532 D3352 D3352.021.04.01.02 03.2019... -
Page 22: Preparations
4 Preparations Dentsply Sirona 4.1 Installation options Installation Requirements Orthophos E Preparations Installation options 67 10 532 D3352 D3352.021.04.01.02 03.2019... - Page 23 Dentsply Sirona 4 Preparations Installation Requirements Orthophos E 4.1 Installation options Standard installation without remote control with release button on the coiled cable Unit in the treatment room. Installation version 1 with remote control without release Unit outside the X-ray room button on the coiled cable.
-
Page 24: Mounting Options
4 Preparations Dentsply Sirona 4.2 Mounting options Installation Requirements Orthophos E Mounting options Standard version Wall-mounted installation with 1 wall holder (short if installing without Ceph*; long if installing with Ceph) and floor fastening if both wall and floor installation are possible on site. -
Page 25: On-Site Installation: Schematic Diagram
Dentsply Sirona 4 Preparations Installation Requirements Orthophos E 4.3 On-site installation: Schematic diagram On-site installation: Schematic diagram Minimum room height 2100 mm Mounting bracket Unit center of column Minimum clearance Ceph left Minimum clearance Ceph right USA/Canada: Wooden beam Remote control Cable bushing... - Page 26 / 3 x 2.5 mm (16 AWG / 14 AWG) and a circuit breaker LS B16A/B20A, only the Orthophos E or devices which do not create a hazard for the patient when the circuit breaker is tripped and no data processing systems whatsoever may be connected.
-
Page 27: Emergency Stop Switch (If Legally Required)
Dentsply Sirona 4 Preparations Installation Requirements Orthophos E 4.4 Emergency stop switch (if legally required) Emergency stop switch (if legally required) Remote control Emergency stop switch; for Canada, see section Emergency Stop for Canada [ → 32] Unit center of column Power cable Second protective ground wire 1. - Page 28 / 3 x 2.5 mm (16 AWG / 14 AWG) and a circuit breaker LS B16A/B20A, only the Orthophos E or devices which do not create a hazard for the patient when the circuit breaker is tripped and no data processing systems whatsoever may be connected.
-
Page 29: On-Site Installation For Pc/Networks
Dentsply Sirona 4 Preparations Installation Requirements Orthophos E 4.5 On-site installation for PC/networks On-site installation for PC/networks Media converter * Network Fiber-optic cable SC → Ethernet cable RJ45 * The media converter is required if there is no fiber-optic cable network with SC connector available. - Page 30 4 Preparations Dentsply Sirona 4.5 On-site installation for PC/networks Installation Requirements Orthophos E 5. For PCs which are connected to an X-ray unit and are in the same room as the unit, an additional protective ground wire is required (4mm with cable lug 4 - 6 DIN 46234 CU) in accordance with IEC 60601-1.
-
Page 31: For Usa And Canada
Dentsply Sirona 4 Preparations Installation Requirements Orthophos E 4.6 For USA and Canada For USA and Canada Distribution panel with an overcurrent circuit breaker rated for 25 A 3x AWG see chart Ground Distributor box Minimum Wire run distance in feet wire size No 12 AWG →... -
Page 32: Emergency Stop For Canada
4 Preparations Dentsply Sirona 4.6 For USA and Canada Installation Requirements Orthophos E 4.6.1 Emergency Stop for Canada CAUTION An emergency stop switch is required for Canada. 67 10 532 D3352 D3352.021.04.01.02 03.2019... -
Page 33: Dimensions, Technical Data
Dentsply Sirona 5 Dimensions, technical data Installation Requirements Orthophos E 5.1 Dimensions 1:20 Orthophos E Dimensions, technical data Dimensions 1:20 Orthophos E 5.1.1 Top view 23 5/8” 20 1/2” 18 3/4” 16 1/2” 15 1/2” 6” 1371 1411 54” 55 1/2” 1040 41”... -
Page 34: Front View
5 Dimensions, technical data Dentsply Sirona 5.1 Dimensions 1:20 Orthophos E Installation Requirements Orthophos E 5.1.2 Front view 1950 76 3/4” 2249 88 1/2” 402,5 15 7/8” Alternative fastening if it is not possible to screw the unit onto the floor. Order bracket separately. -
Page 35: Top View With Floor Stand
Dentsply Sirona 5 Dimensions, technical data Installation Requirements Orthophos E 5.1 Dimensions 1:20 Orthophos E 5.1.3 Top view with floor stand 23 5/8” 20 1/2” 33 1/2” 6 7/8” 10 3/8” 26 1/2” 7 7/8” 20 1/2” 1371 1411 54” 55 1/2”... -
Page 36: Front View With Floor Stand
5 Dimensions, technical data Dentsply Sirona 5.1 Dimensions 1:20 Orthophos E Installation Requirements Orthophos E 5.1.4 Front view with floor stand 1980 78” 2279 89 3/4” 71,6 2 7/8” Floor stand: Order floor stand separately. The unit must also always be secured to the top wall holder. -
Page 37: Top View With Ceph Left
Dentsply Sirona 5 Dimensions, technical data Installation Requirements Orthophos E 5.1 Dimensions 1:20 Orthophos E 5.1.5 Top view with Ceph left 23 5/8” 1435 56 1/2” 20 1/2” 1350 53 1/8” 16 1/2” 15 1/2” 6” 27 1/4” 1371 1411 54” 55 1/2”... -
Page 38: Front View With Ceph Left
5 Dimensions, technical data Dentsply Sirona 5.1 Dimensions 1:20 Orthophos E Installation Requirements Orthophos E 5.1.6 Front view with Ceph left 1950 76 3/4” 2249 88 1/2” 402,5 15 7/8” Alternative fastening if it is not possible to screw the unit onto the floor. -
Page 39: Technical Data
Dentsply Sirona 5 Dimensions, technical data Installation Requirements Orthophos E 5.2 Technical data Technical data 5.2.1 Unit data Model name: Orthophos E / Ceph Nominal voltage: 200 – 240 V Permissible fluctuation: ± 10% Permissible drop under load: 10% Rated current: max. 12 A... -
Page 40: Weight And Packaging
114 cm x 105 cm x 22 cm 56 3/4" x 41 3/8" x 8 5/8" 5.2.4 Certification and registration The Orthophos E / Ceph X-ray unit complies with IEC 60601-1:2005 + A1:2012 The Orthophos E / Ceph X-ray unit complies with IEC 60601-1-3:2008 + A1:2013... -
Page 41: Electromagnetic Compatibility
Electromagnetic compatibility NOTE The Orthophos E meets electromagnetic compatibility requirements (EMC) in accordance with IEC 60601-1-2. The Orthophos E is referred to going forward as the "UNIT". Observing the following information ensures safe operation with regard to EMC aspects. Accessories... -
Page 42: Electromagnetic Emission
6 Electromagnetic compatibility Dentsply Sirona 6.2 Electromagnetic emission Installation Requirements Orthophos E Electromagnetic emission The UNIT is intended for operation in the electromagnetic environment specified below. The customer or user of the UNIT should make sure that it is used in such an environment. -
Page 43: Immunity To Interference
Dentsply Sirona 6 Electromagnetic compatibility Installation Requirements Orthophos E 6.3 Immunity to interference Immunity to interference The UNIT is intended for operation in the electromagnetic environment specified below. The customer or user of the UNIT should make sure that it is used in such an environment. - Page 44 6 Electromagnetic compatibility Dentsply Sirona 6.3 Immunity to interference Installation Requirements Orthophos E Interference immunity IEC 60601-1-2 test Compliance level Electromagnetic environment - tests level guidelines Conducted RF d= [1.2] √P interference 150 kHz to 80 MHz IEC 61000-4-6 Radiated RF interference 3 V/m d= [1.2] √P...
- Page 45 Dentsply Sirona 6 Electromagnetic compatibility Installation Requirements Orthophos E 6.3 Immunity to interference Test frequency Frequency Radio service Modulation (b) Power max. Distance (m) Immunity test (MHz) level band (V/m) (MHz) 380 - 390 TETRA 400 Pulse modulation 18 Hz 430 – 470...
-
Page 46: Working Clearances
6 Electromagnetic compatibility Dentsply Sirona 6.4 Working clearances Installation Requirements Orthophos E Working clearances The UNIT is intended for operation in an electromagnetic environment, where radiated RF interference is checked. The customer or the user of the UNIT can help prevent electromagnetic interference by maintaining a... - Page 48 We reserve the right to make any alterations which may be required due to technical improvements. © Sirona Dental Systems GmbH Sprache: englisch Printed in Germany D3352.021.04.01.02 03.2019 Ä.-Nr.: 000 000 Sirona Dental Systems GmbH Fabrikstraße 31 67 10 532 D3352 Order No 64625 Bensheim Germany...
