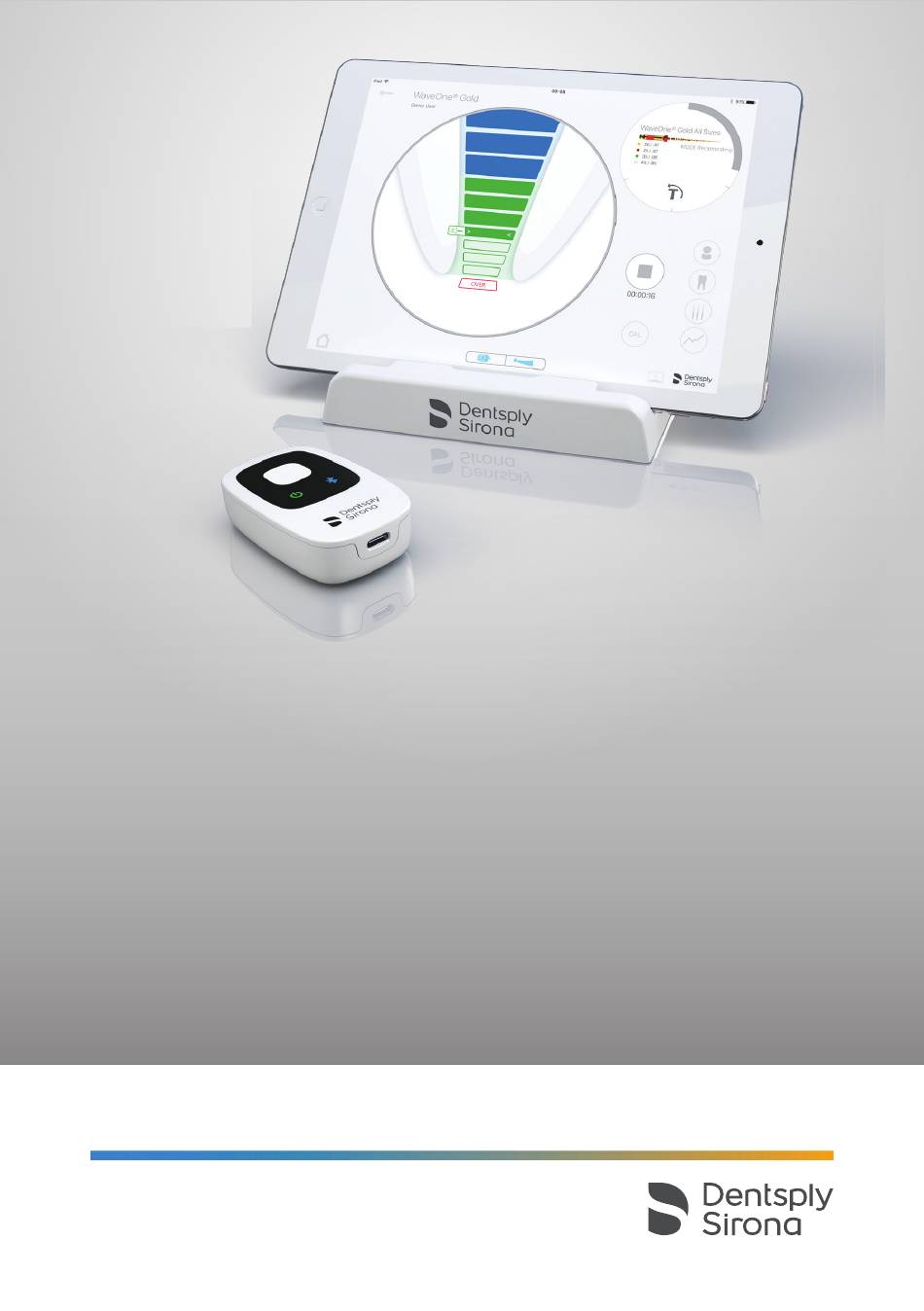

Package contents Propex IQ® Apex Locator Propex IQ® Clamp (accessory)* Directions for Use (1 booklet with 5 EU languages) Propex IQ® Cleaning, Disinfection and Sterilization Guide Disposable (printed in 5 EU barrier sleeves* languages) Getting Started Guide (printed in 5 EU languages) Propex IQ®...
Page 3
DFU chapter troubleshooting) Connection lost; default working length settings retrieved Battery Please fully charge the Propex IQ® Apex Locator to optimize battery life. Battery status Connector for charger, measurement cable and Green: charged external tester Green flashing: device charging / standby mode...
Page 4
Propex IQ® Apex Locator only used with file clip. The device is not used in conjunction with the Endo IQ® App. Propex IQ Apex Locator - Connected to Endo IQ App. ® ® Propex IQ® Apex Locator used with file clip in conjunction with the Endo IQ® App.
Page 5

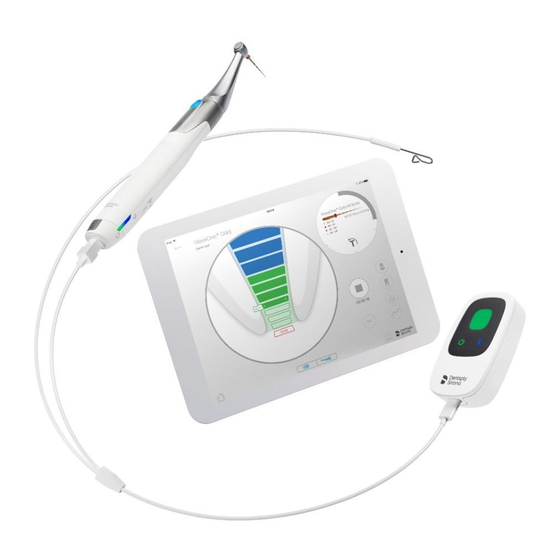

The Handpiece barrier sleeve may look different in certain countries. Propex IQ® Apex Locator used with X-Smart IQ® Handpiece but without the Endo IQ® App. Bluetooth® auto connection feature only available when both X-Smart IQ® Handpiece and Propex IQ® Apex Locator are combined via cable.
Page 6
File progression Always perform a closed-loop test before performing a treatment (see chapter 3). Coronal and medial region: Move the endodontic file towards the apex. LED : Solid blue Sound: Slow pulsating tone Region coronal to the reference point for working length determination: The endodontic file can be moved further towards the reference point.
Page 7
(LED shows solid green and solid tone is emitted). SHAPING TARGET and Apical Reverse (AR) settings as well as sound volume and scheme can be changed in the Endo IQ® App. Propex IQ Apex Locator Getting Started Guide ®...
Page 8
Make a closed-loop circuit with the Propex IQ® or X-Smart IQ® Measurement Cable: Hook the Propex IQ® File Clip (4) to the lip clip (3) or put the lip clip (3) in contact with the endodontic file inserted in the X-Smart IQ® Contra-angle. Propex IQ® Apex Locator (1) central LED will turn white indicating that cables are functional.
Page 9
Connect devices to Endo IQ ® Open Endo IQ® App. - Press the ON/OFF/Standby button to turn ON the Propex IQ® Apex Locator. - Press the Bluetooth® button to activate the Bluetooth® and check that the Bluetooth® LED is flashing blue.
Click on it to display the corresponding parameter dialogue Battery level Bluetooth® (displayed on connection critical levels) strength (displayed on critical levels) Propex IQ® Apex Locator and X-Smart IQ® Handpiece in combined mode Check chapter 10 for detailed symbol explanation.
Page 11
Treatment screen in uncombined mode (Propex IQ Apex Locator only) ® File progression Treatment screen in combined mode with X-Smart IQ Handpiece ® X-Smart IQ® Handpiece information Create or select a patient record number Enter treatment data (notes, working lengths, last file used,...
Page 12
Default Propex IQ Apex Locator visualization ® Always perform a closed-loop test before performing a treatment (see chapter 3). Position of the file This is the reference point Indicates over-instrumentation for determining the working An intermittent sound length will be triggered...
Page 13
The LED on the hardware will be solid green When combining the X-Smart IQ® Handpiece with the Propex IQ® Apex Locator, the Apical Reverse (AR) feature is initially OFF. To use AR, check chapter 6, Device settings in Endo IQ® App.
Page 14
X-Smart IQ Handpiece documentation. ® When using your Propex IQ® Apex Locator in combined mode with the X-Smart IQ® Handpiece, the Apical Reverse (AR) function is initally OFF. To turn it ON, press on the X-Smart IQ® Handpiece icon to access the parameter dialogue where the Apical Reverse (AR) feature then can be enabled or again disabled.
Page 15
Move your reference point up or settings down within the green zone The SHAPING TARGET Setting is OFF by default, and only available when the Propex IQ® Apex Locator is connected to the Endo IQ® App. Propex IQ Apex Locator Getting Started Guide ®...
Page 16
The use of the X-Smart IQ® Handpiece barrier sleeve is mandatory in combined mode (REF A105800000000 X-Smart IQ® Handpiece sleeves). The use of the Propex IQ® Apex Locator disposable barrier (single-use) sleeve is mandatory (REF B00PPIQ1ACBAR Propex IQ® Apex Locator Disposable Barrier...
Page 17
SHAPING TARGET and Apical Reverse (AR) features can be used independently; By enabling the SHAPING TARGET feature (which is a Propex IQ® Apex Locator setting), the Apical Reverse feature is not enabled automatically. This can be done in the parameter dialogue of the X-Smart IQ®...
Page 18
® ® Image Description X-Smart IQ® Handpiece combined with Propex IQ® Apex Locator and both connected to the Endo IQ® App Propex IQ® Apex Locator combined with X-Smart IQ® Handpiece both with SHAPING TARGET and Apical Reverse features enabled X-Smart IQ® Handpiece combined with Propex IQ® Apex Locator but only X-Smart IQ®...
Disinfection Use only disinfectants with Alcohol Quaternary Ammonium active ingredients (e.g. CaviWipes™ or CaviCide™), except for the Propex IQ® File Clip or Lip Clip (see Directions for Use). Use only disinfectants, which are compatible with the device and accessories. Leave the disinfectant to act in accordance to manufacturer’s instructions.
