  • Page 1 Intego Brief operating instructions for USA...

  • Page 2: Table Of Contents

    The complete operating instructions describes all the functions of the Intego product family, also functions that are not available in the USA. The care and cleaning of your dental treatment unit are described thoroughly in the complete operating instructions.

  • Page 3: Overview Of Intego

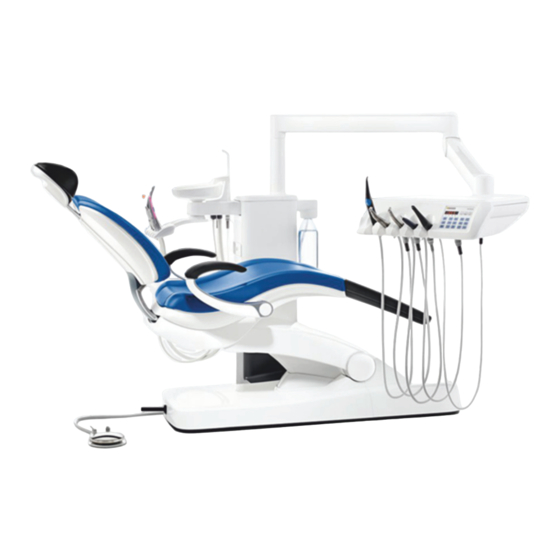

    Overview of Intego A Patient chair G Assistant element Double-jointed head support H Cuspidor bowl C Pneumatic foot control Water unit D C+ electronic foot control Power switch and external device connection TS dentist element CS dentist element * Maximum load exerted by patient and accessories: 185 kg...

  • Page 4: Power Switch

    It then no longer consumes any energy. EasyTouch user interface A Touchscreen (pressure-sensitive user interface) Fixed keys (membrane keyboard) For an overview of touch-screen programs, see the end of this quick reference guide. Dentsply Sirona...

  • Page 5: Keys And Displays On The Touchscreen

    This is indicated by a small arrow at the bottom right of the touchscreen. It points to the fixed key Sub-dialog below the touchscreen. Chair program S Mouth rinsing position (programmable) with last-position memory function Dentsply Sirona...
  • Page 6 Pressing > 3 s again reactivates the dental treatment unit. This is used to make sure that no unwanted functions can be acci- dentally triggered while cleaning the surface or from interference from an external HF device Dentsply Sirona...

  • Page 7: User Interface Of The Assistant Element

    Flushing the cuspidor on/off Operating light / Composite function Repeated pressing of the key allows the following switching positions to be set: 1. Switched on 2. Composite function 3. Switched off Fn key Starts and stops the timer. Dentsply Sirona...

  • Page 8: Creating Chair Programs

    Chip blower With the chip blower, an air jet comes out of the bur.  Take an instrument and press the right button.  The chip blower remains switched on as long as the button is pressed. Dentsply Sirona...

  • Page 9: C+ Electronic Foot Control

    Si Video. 4-way foot control plate  All instruments are place.  Move the 4-way foot control plate to the left or right.  Left: Chair program 1 is loaded. Right: Chair program 2 is loaded. Dentsply Sirona...

  • Page 10: 4-Way Foot Control

     The clockwise/counterclockwise rota- tion of the electric motor is activated. 4-way foot control Adjusting the chair height  Slide the 4-way foot control upward or downward. Inclining the backrest  Slide the 4-way foot control to the left or right. Dentsply Sirona...

  • Page 11: 3-Way Standard And Sprayvit E Syringe

    If your dental treatment unit is equipped with the pneumatic foot switch, the drive air for the turbine can be regulated by the foot pedal. When the highspeed handpiece is removed from the holder, a highspeed handpiece signal appears on the touchscreen. 10:45:03 Dentsply Sirona...

  • Page 12: Electric Motor

    Press and hold the middle favorite (> 2 s).  The speed flashes. Press one of the three favorite keys.  An acoustic signal sounds. The set speed and if applicable, activation of spray is saved on the favorite key. Dentsply Sirona...

  • Page 13: Endodontics Function

    Endodontics function. The basic functionality of the Endodontics function is described below. For more information, please refer to your complete Intego Operating Instructions. Switching on the endodon- tics function Endodontics function is assigned to the burr drive removed from the holder.
  • Page 14 Speed and torque can be saved for up to six working steps. At the end of each work step, the required settings can be accessed immediately by selecting the next step. The work steps can be selected via the Endo 3 forward/back keys. Dentsply Sirona...
  • Page 15 If the foot control is pressed again, the burr drive switches back to clockwise rotation.  Touch the AutoRev key. Auto  If the key is marked orange, the Auto Reverse function is activated. Dentsply Sirona...

  • Page 16: Apexlocator

    • For measurement during treatment with the motor, without electronic torque limitation Stop 2700 Distance display in the Motor program • For manual measurement using a file clamp Auto Aqua Apex Dist Setup Distance display in the Start sub-screen Dentsply Sirona...
  • Page 17 The tip of the root canal file has pierced the physiological apex. The instrument over- shoot is displayed. In addition to the graphical distance display on the touchscreen, the position of the file in the root canal can also be indi- cated as an acoustic signal. Dentsply Sirona...
  • Page 18 – and + keys. The preset motor stop position is displayed as a black triangle to the right of the distance display under the text "Stop". For more details, please refer to your complete Intego Operating Instructions. Dentsply Sirona...

  • Page 19: Sirosonic L

     Press and hold the middle favorite Set (> 2 s).  The intensity display flashes.  Press one of the three favorite keys.  An acoustic signal sounds. The intensity set and, if applicable, activation of spray will be saved on the favorite key. Dentsply Sirona...

  • Page 20: Sirocam Af

    C+ electronic foot control, it can be configured in setup that the camera image can be focused with the foot switch, see "Switching on/off the electric foot control C+ function for intraoral camera focus" [ 28]. Dentsply Sirona...
  • Page 21 If the dental treatment unit is equipped with C+ electronic foot control, it can be configured in setup that the camera image can be focused with the foot switch. If this function is switched on, the foot pedal Dentsply Sirona...
  • Page 22 Quad image Display quad image or single image. Up to four single images are simultaneously displayed on the Sivision monitor in quad image mode. Deleting images All generated still images are deleted. Dentsply Sirona...
  • Page 23  The still image to be saved is displayed on the Sivision monitor.  Press the left button of the C+ elec- tronic foot control.  An acoustic signal sounds. The still image is displayed in an additional Sidexis window and saved in the patient database. Dentsply Sirona...

  • Page 24: Sivision Program

    Touch the Sivision dialog key on the touchscreen. If intraoral images are desired: Remove the intraoral camera from the holder. The Sidexis PC application or Si Video starts immediately.  The Sivision dialog is displayed on the touchscreen. Dentsply Sirona...
  • Page 25 Siucom Plus / Sivision Connect". There it can also be defined which file folder the File Selection screen should access for each PC application. The following overview shows the keys available for configuring the Sidexis PC applications and Media player. Dentsply Sirona...
  • Page 26 Undo Zoom in/out Restore orig- inal image Rotate image Close current 90° left/right media window Rotate image Close all media 180° windows Contrast opti- mization filter Media Player Previous/ Mute next title Stop playback Adjust volume Start/interrupt playback Dentsply Sirona...

  • Page 27: Configuration Of The Dental Treatment Unit (Setup)

    The selected function is highlighted by an orange frame. Setting the time and date • Setting the date 15 04 14 • Setting the time • Switching 12/24 hour display 12 h Dentsply Sirona...
  • Page 28 C+ function for intraoral camera focus • Key for showing/hiding white screen on Sivision monitor • Switching the water heater on/off Configuring the network connection For more information, please refer to your complete Intego Operating Instructions or the Installation Instructions. DHCP 192.168.50.50 Subnet (24) 255.255.255.0...
  • Page 29 Dentsply Sirona...

  • Page 30: Overview Of The Touchscreen Dialogs

    Overview of the touchscreen dialogs 10:45:03 0:15 Auto Aqua Apex Dist Setup 10:45:03 Clean 3 sec 10:45:03 10:45:03 0:45 for LEDview Plus Dentsply Sirona...
  • Page 31 10:45:03 10:45:03 20000 10:45:03 Endo Apex Dist 10:45:03 Stop Endo Endo 3 1.00 Endo 3 Dentsply Sirona...
