Configuration
3.5

Configuration Examples

More examples can be found at www.anybus.com/support.
3.5.1 Ethernet Bridge via WLAN or Bluetooth
Configuration with Easy Config

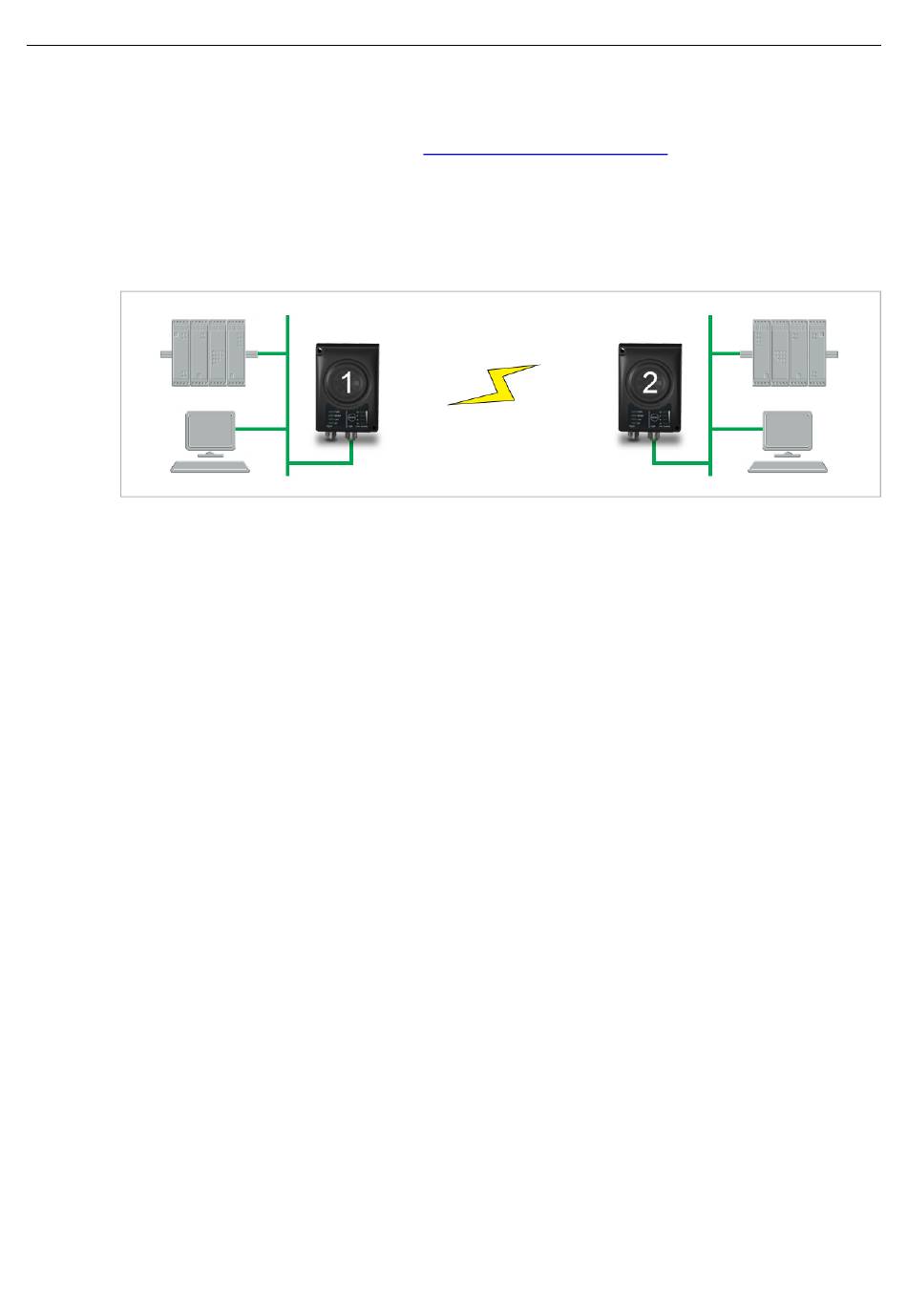

This example describes how to connect two Ethernet network segments via
WLAN or Bluetooth using Easy Config.
Configuration
1.
Power on the first unit and wait for the LEDs to light up and go out, then
press MODE and release it immediately.
2.
Press MODE repeatedly until only LED C is lit (Easy Config Mode 4), then
confirm by pressing and holding MODE for 2 seconds.
This unit will now be discoverable and open for automatic configuration.
3.
Power on the second unit and wait for the LEDs to light up and go out, then
press MODE and release it immediately..
4.
Press MODE repeatedly on the second unit until A + C are lit (Mode 5) for
WLAN, or B + C (Mode 6) for Bluetooth, then confirm by pressing and hold-
ing MODE for 2 seconds.
This unit should now automatically discover and configure unit 1 as a WLAN
or Bluetooth client, and configure itself as an access point.
Unit 1 will automatically be assigned the first free IP address within the same
Ethernet subnet as unit 2.
Adding More Devices
Up to 6 additional clients can be added by repeating the procedure. Each new cli-
ent will be assigned the next free IP address within the current subnet.
