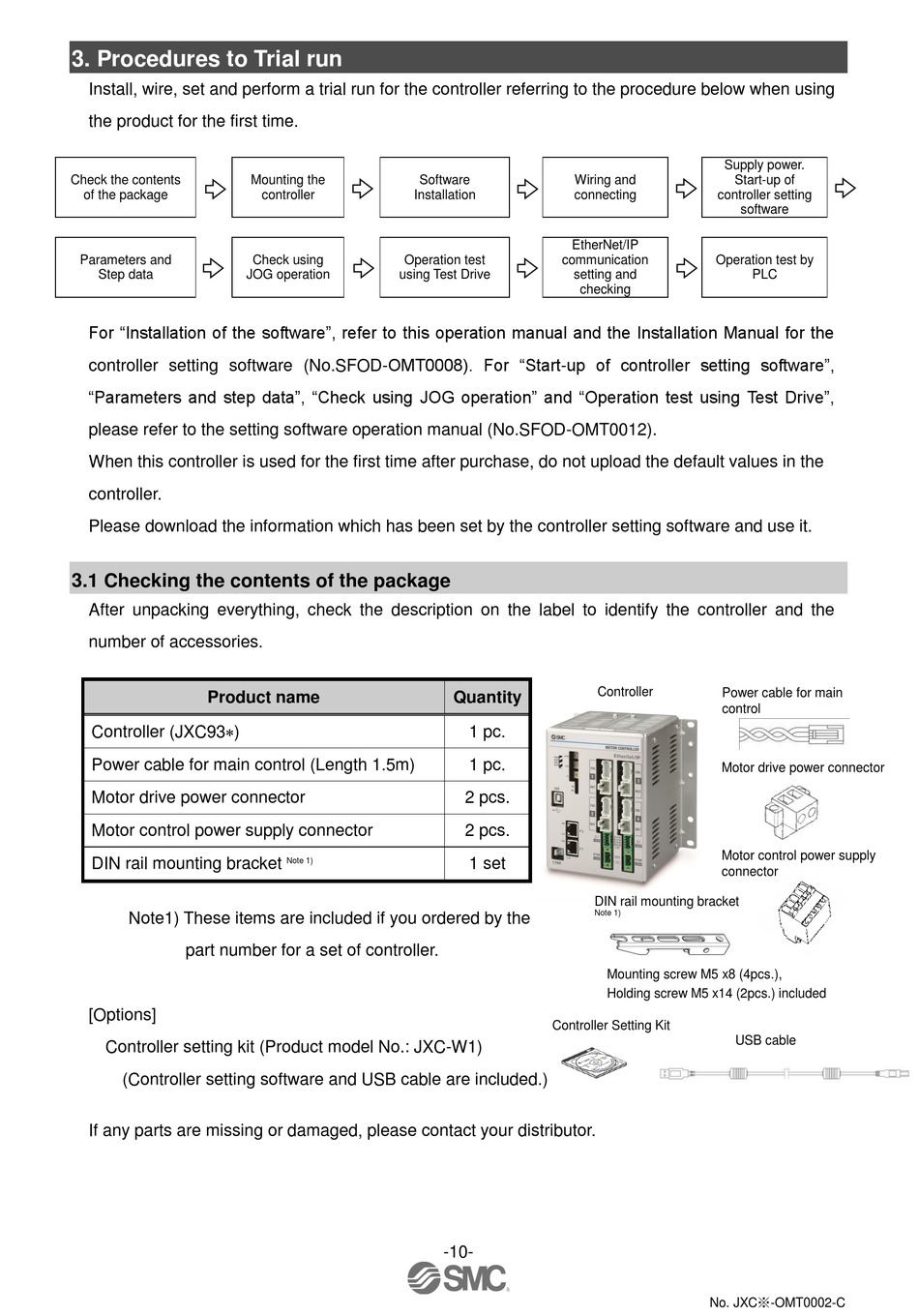

3. Procedures to Trial run

Install, wire, set and perform a trial run for the controller referring to the procedure below when using
the product for the first time.
Check the contents
of the package
Parameters and
Step data
For "Installation of the software", refer to this operation manual and the Installation Manual for the
controller setting software (No.SFOD-OMT0008). For "Start-up of controller setting software",
"Parameters and step data", "Check using JOG operation" and "Operation test using Test Drive",
please refer to the setting software operation manual (No.SFOD-OMT0012).
When this controller is used for the first time after purchase, do not upload the default values in the
controller.
Please download the information which has been set by the controller setting software and use it.

3.1 Checking the contents of the package

After unpacking everything, check the description on the label to identify the controller and the
number of accessories.
Product name
Controller (JXC93  )
Power cable for main control (Length 1.5m)
Motor drive power connector
Motor control power supply connector
DIN rail mounting bracket
Note1) These items are included if you ordered by the
part number for a set of controller.
[Options]
Controller setting kit (Product model No.: JXC-W1)
(Controller setting software and USB cable are included.)
If any parts are missing or damaged, please contact your distributor.
Mounting the Software
controller Installation
Check using Operation test
JOG operation using Test Drive
Note 1)
Wiring and
connecting
EtherNet/IP
communication
setting and
checking
Controller
Quantity
1 pc.
1 pc.
2 pcs.
2 pcs.
1 set
DIN rail mounting bracket
Note 1)
Mounting screw M5 x8 (4pcs.),
Holding screw M5 x14 (2pcs.) included
Controller Setting Kit
-10-
Supply power.
Start-up of
controller setting
software
Operation test by
PLC
Power cable for main
control
Motor drive power connector
Motor control power supply
connector
USB cable
No. JXC※-OMT0002-C
