Block Diagrams, Test Point Overview, and Waveforms

6. Block Diagrams, Test Point Overview, and Waveforms

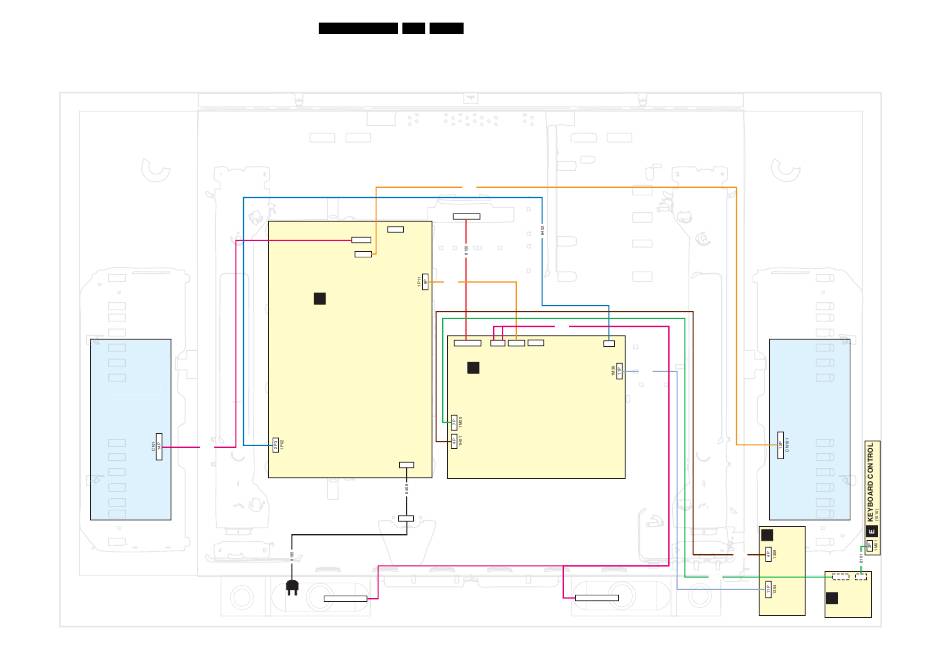

Wiring Diagram 42" LCD

WIRING 42" LCD
(STYLING ME7)
INVERTER
8319
更多难得资料请到江南家电维修论坛免费下载！
http://bbs.520101.com
Q523.1U LA 6. 39
LCD DISPLAY
(1004)
4P
1M09
14P
1319
12P
1317
8411
DISPLAY SUPPLY
A
1308
2P3
INLET
RIGHT SPEAKER
(5214)
8316
LVDS
51P
8738
41P 4P 8P 5P 2P3
1G50 1735 1P11 1M59
1P02
SSB
B
8136
LEFT SPEAKER
(5213)
INVERTER
D SIDE I/O
(1015)
8201
8120 7P 3P
1M20 1M01
IR/LED/LIGHT
J
SENSOR
(1012)
H_16770_066.eps
120707
