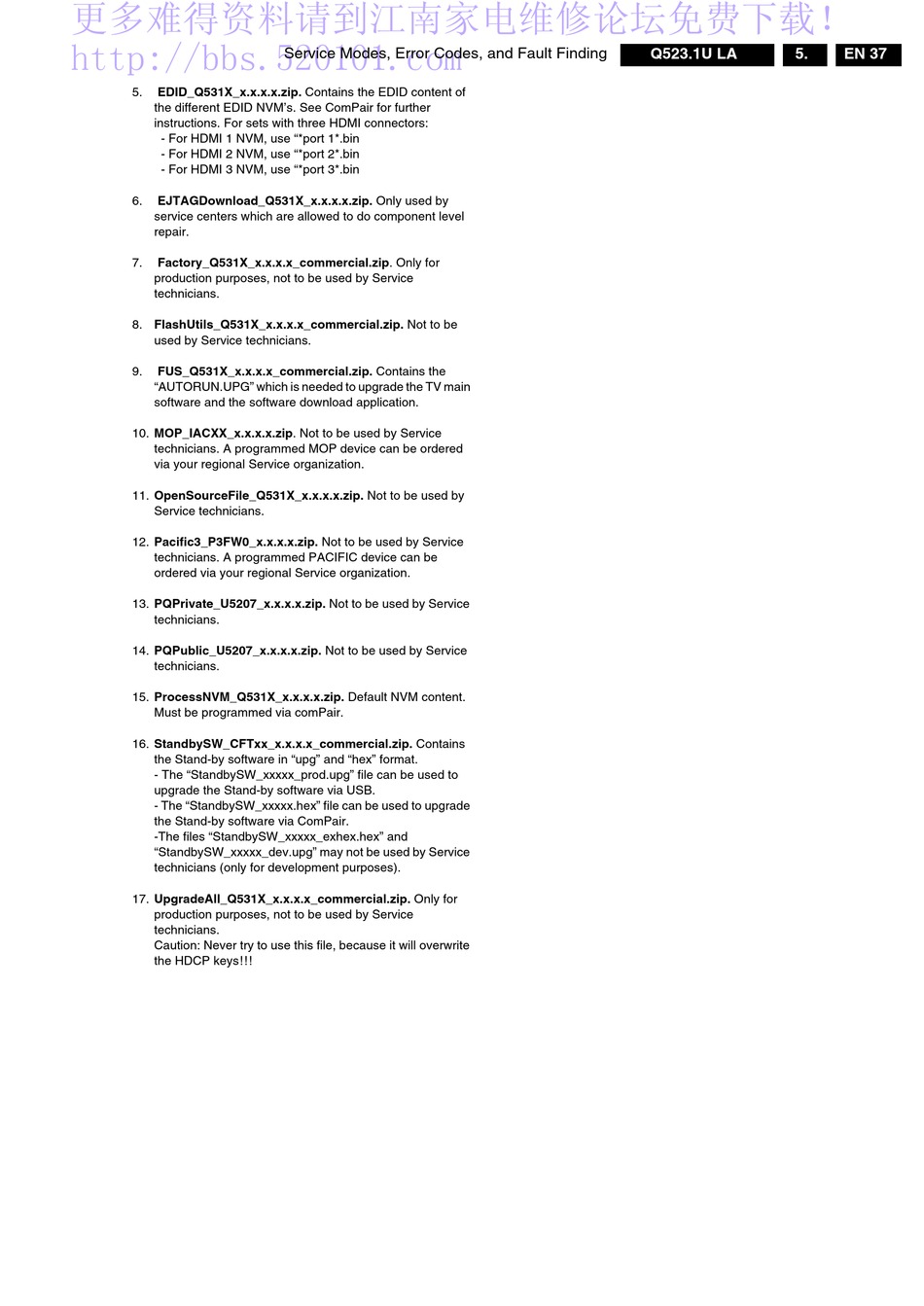

Philips 32PF9968/10 Service Manual page 37

更多难得资料请到江南家电维修论坛免费下载！
http://bbs.520101.com
5. EDID_Q531X_x.x.x.x.zip. Contains the EDID content of
the different EDID NVM's. See ComPair for further
instructions. For sets with three HDMI connectors:
- For HDMI 1 NVM, use "*port 1*.bin
- For HDMI 2 NVM, use "*port 2*.bin
- For HDMI 3 NVM, use "*port 3*.bin
6. EJTAGDownload_Q531X_x.x.x.x.zip. Only used by
service centers which are allowed to do component level
repair.
7. Factory_Q531X_x.x.x.x_commercial.zip. Only for
production purposes, not to be used by Service
technicians.
8. FlashUtils_Q531X_x.x.x.x_commercial.zip. Not to be
used by Service technicians.
9. FUS_Q531X_x.x.x.x_commercial.zip. Contains the
"AUTORUN.UPG" which is needed to upgrade the TV main
software and the software download application.
10. MOP_IACXX_x.x.x.x.zip. Not to be used by Service
technicians. A programmed MOP device can be ordered
via your regional Service organization.
11. OpenSourceFile_Q531X_x.x.x.x.zip. Not to be used by
Service technicians.
12. Pacific3_P3FW0_x.x.x.x.zip. Not to be used by Service
technicians. A programmed PACIFIC device can be
ordered via your regional Service organization.
13. PQPrivate_U5207_x.x.x.x.zip. Not to be used by Service
technicians.
14. PQPublic_U5207_x.x.x.x.zip. Not to be used by Service
technicians.
15. ProcessNVM_Q531X_x.x.x.x.zip. Default NVM content.
Must be programmed via comPair.
16. StandbySW_CFTxx_x.x.x.x_commercial.zip. Contains
the Stand-by software in "upg" and "hex" format.
- The "StandbySW_xxxxx_prod.upg" file can be used to
upgrade the Stand-by software via USB.
- The "StandbySW_xxxxx.hex" file can be used to upgrade
the Stand-by software via ComPair.
-The files "StandbySW_xxxxx_exhex.hex" and
"StandbySW_xxxxx_dev.upg" may not be used by Service
technicians (only for development purposes).
17. UpgradeAll_Q531X_x.x.x.x_commercial.zip. Only for
production purposes, not to be used by Service
technicians.
Caution: Never try to use this file, because it will overwrite
the HDCP keys!!!
Service Modes, Error Codes, and Fault Finding Q523.1U LA 5. EN 37
